China PP Spunbond Nonwoven Production Line manufacturer

4800 mm SSS SS Hot selling spunbond production line pp spunbond non woven fabric machine

Product Details:
Place of Origin: Chuzhou China
Brand Name: Chuzhou HH non-woven
Certification: CE
Model Number: HHM - SS SSS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: components wood box packaged , machine wrapping with PE film keep cargo safe
Delivery Time: 90 - 150 days
Payment Terms: L/C, T/T
Supply Ability: 3 line / months

Detail Information

Product: 4800 SSS Spunbond Nonwoven Fabric Machine Width: 4800
Core Component: PLC Gear Box ,PUMP , Motor Out Put Dayily: 40 Ton
Power: 1000 Kw Certificate: CE ISO
Size: 50 * 120* 12 M GSM: 99 G

Product Description



4800 mm SSS SS Hot selling spunbond production line pp spunbond non woven fabric machine



1. Characteristics
Dosing metering system
Vacuum suction or blower feeding system. Weight measurement system, accurate. High and low limit automatic alarm.
Rotating beam
Single coat hanger, melt distribution, four coordinate NC manufacturing, manual grinding.

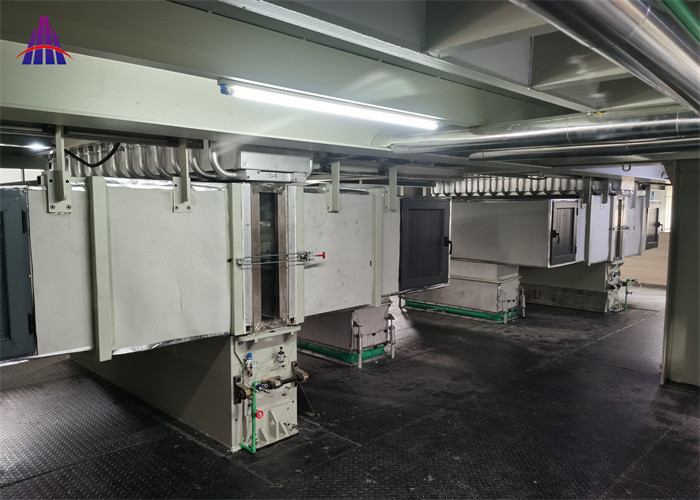

Quenching chamber
Multilayer honey board with holes of different sizes. The quenching air flow is evenly distributed, which is convenient for disassembly and cleaning.
Stretch channel
The inner wall is made of polished stainless steel, and the upper and lower expansion grooves can adjust the groove width at the same time.
Communication channels
The tank body is made of stainless steel. The special forming process and welding process ensure that the whole channel is flat without shape change.

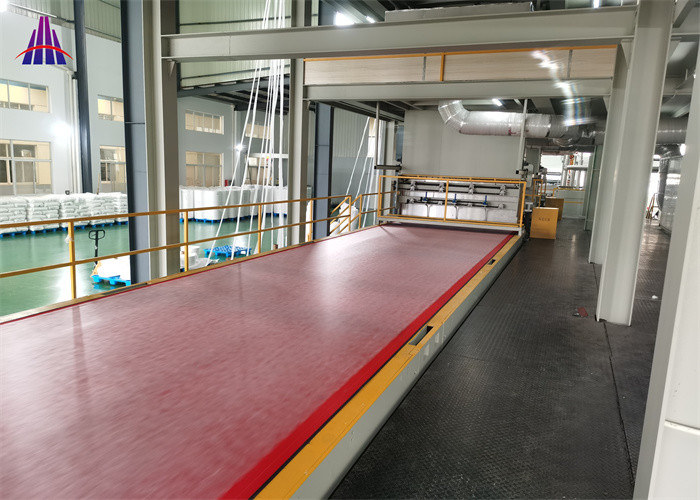

Conveyor
The roller adopts dynamic balance detection to ensure stable operation. The surface of the preloading roll is coated with ceramics to prevent winding. MB system has pneumatic belt protection.
Meltbloom system
Imported screw blower is used to produce stretch air. Constant pressure, low rotational pressure, high
High efficiency and low power consumption.
electric control system
The whole machine is controlled by PLC, the AC inverter motor is the whole synchronous system, and the process parameters and faults can be displayed and alarmed. The whole system runs stably and reliably.





4800 SSS Model

Effective Width 4000mm
Weight Range 9 - 100 g / ㎡
Out put daily 32 - 40 ton
Machine speed ≦ 550 m / min
Transformer ≈ 1800 KVA
Power Consumption 650º - 800 º / Ton
Machine Size 50*24 * 12 M



Use of spunbonded nonwoven fabric:

Hospitals and protective supplies:Surgical masks, surgical drapes, surgical masks, disposable clothing, surgical drapes, shoe covers, etc..Combined with other types of non-woven fabrics Sanitary materials:Baby diapers, adult incontinence pads, women's sanitary pads, other cleaning applications. Technical engineering:Civil engineering, construction engineering, agricultural field, automobile field, etc. Packing supplies:Shopping bags, rice bags, tea bags, clothing packaging and so on. Household goods:Spring - wrapped cloth, bedding, seat supplies, etc. Paper composite materials, etc. Work protection, protective clothing, gas masks, etc



4800 mm SSS SS Hot selling spunbond production line pp spunbond non woven fabric machine 0



Specification

item value
Applicable Industries Hotels, Garment Shops, Restaurant, Retail
After Warranty Service Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location Italy, Pakistan, India, Russia, Thailand
Showroom Location Italy, Pakistan, India, Bangladesh
  Provided
  Provided
  Hot Product 2019
  1 YEAR
  PLC, Motor, Gear, Pump
  New
  Automatic
Place of Origin China
Brand Name Asen
  380V
Power 220kw-500kw
Dimension(L*W*H) 25m×10m
  10-15tong
  CE
Warranty 1 YEAR
After-sales Service Provided Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points Sustainable
Application Making Disposable Face Mask
Keywords PP Melt Blown Fabric Making Machine
Machine Type SSS SS SMS
Material Stainless Steel + Aluminum Alloy
Products Width 1.6M/2.4M/3.2M

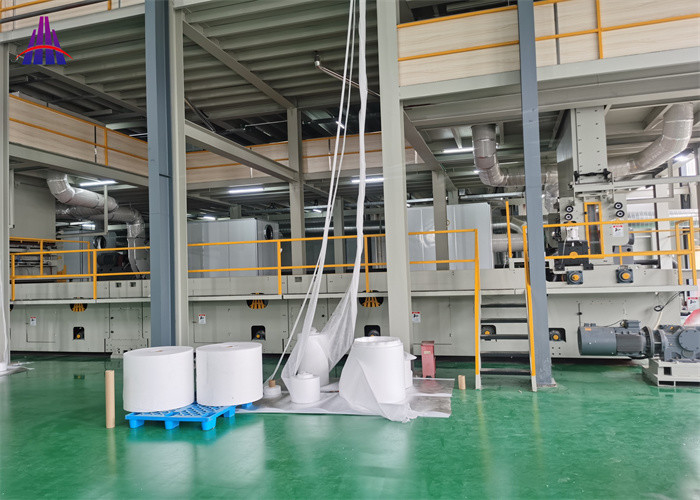

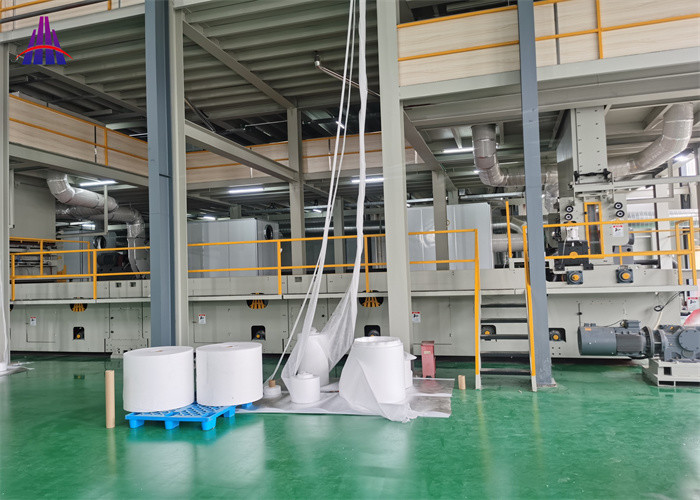

Non woven fabric making line show



4800 mm SSS SS Hot selling spunbond production line pp spunbond non woven fabric machine 1






4800 mm SSS SS Hot selling spunbond production line pp spunbond non woven fabric machine 2

Machine Model Reifenhauser Reicofil 3/4,Spunbond lines, spun-melt lins S, SS,SSS, SXS,SXXS,SMMS ,SMS ,SSMMS
Machine Size 18m-60m(L)*10m-31m(W)*10m-12m(H)
Raw Material required

PP(polypropylene),additives

MFI/MFR:25-40g/10min(spunbonding process)

MFI/MFR:800-2000g/10min (Melt-blowning process)

Effective width 1600mm,2400mm,3200mm,4000mm,4800mm customizable width by requirements
Max Speed 150m/mn-550m/min
Transformer&Power consumption

Transformer require:200KVA-3000KVA

Power consumption :500KWH/Ton-1400KWH/Ton

Output per year 1500 Tons - 10000 Tons
Products GSM 8gsm-250 gsm
Applications of products

Industrial:Shopping bags, furniture ,agriculture ,packageing,etc

Medical:Surgical gown /cap /sheet /mask ,etc

Hygiene: Diapers ,sanitary ,napking , etc.





Sss nonwoven fabric

SSS Nonwoven Fabric
Item





G/m2

specification

15 30 45 60 90 120
Allowable deviation(%) First class ±8 ±7
Final product ±10 ±9
Width deviation (%) First class +2.0 ,-1.0 +2.0 ,-1.0
Final product +2.5 ,-1.5 +2.5 ,-1.5

Fracture

strength

MD N/5cm First class 15 35 50 68 95 130
Final product 12 30 45 65 91 108
CD N/5cm First class 10 28 44 64 82 95
Final product 8 25 38 57 57 90



3200 SSS Model

Effective Width 3200mm
Weight Range 9 - 100 g / ㎡
Out put daily 24 - 30 ton
Machine speed ≦ 550 m / min
Transformer ≈ 1250 KVA
Power Consumption 650º - 800 º / Ton
Machine Size 50*20 * 12 M



M Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 15-300G/㎡ ≈600KVA 3000º-3500º/Ton 800T
2400mm 15-300G/㎡ ≈800KVA 3000º-3500º/Ton 1100T
3200mm 15-300G/㎡ ≈1000KVA 3000º-3500º/Ton 1500T



SMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈800KVA 1300º-1600º/Ton 3200T
2400mm 9-100G/㎡ ≈1250KVA 1300º-1600º/Ton 5100T
3200mm 9-100G/㎡ ≈1600KVA 1300º-1600º/Ton 7000T
4000mm 9-100G/㎡ ≈2000KVA 1300º-1600º/Ton 8700T
4800mm 9-100G/㎡ ≈2250KVA 1300º-1600º/Ton 10500T

SMMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈1500KVA 1700º-1900º/Ton 4000T
2400mm 9-100G/㎡ ≈1600KVA 1700º-1900º/Ton 6200T
3200mm 9-100G/㎡ ≈2200KVA 1700º-1900º/Ton 8400T
4000mm 9-100G/㎡ ≈2500KVA 1700º-1900º/Ton 10500T
4800mm 9-100G/㎡ ≈2630KVA 1700º-1900º/Ton 12700T



SMMMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-80G/㎡ ≈1600KVA 1700º-1900º/Ton 6200T
2400mm 9-80G/㎡ ≈2000KVA 1700º-1900º/Ton 8000T
3200mm 9-80G/㎡ ≈3000KVA 1700º-1900º/Ton 11000T
4200mm 9-80G/㎡ ≈3500KVA 1700º-1900º/Ton 14000T
4800mm 9-80G/㎡ ≈4000KVA 1700º-1900º/Ton 16000T



Description Of Non-woven Machine



1) Parts of spunbonded nonwoven fabric production line:
Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter
2) Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)---->Raw material----> Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
Web forming---->Calendering---->Winding----> Cutting---->Final product



Description Of Non-woven Machine



1) Parts of spunbonded nonwoven fabric production line:
Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter
2) Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)---->Raw material----> Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
Web forming---->Calendering---->Winding----> Cutting---->Final product

4800 mm SSS SS Hot selling spunbond production line pp spunbond non woven fabric machine 3

Main part of Nonwove system



4800 mm SSS SS Hot selling spunbond production line pp spunbond non woven fabric machine 4

Candle filtration Machine

Filtration Area: 3.5m²; Capacity: 650kgs/h; Filtration Chamber: 2 pcs (switch online); Original:CHINA;





4800 mm SSS SS Hot selling spunbond production line pp spunbond non woven fabric machine 5

Spinning Pump

Capacity:300-450Kg/H; Speed:40Rpm/Minute; Drive Motor:Siemens; Original: CHINA/GERMANY



4800 mm SSS SS Hot selling spunbond production line pp spunbond non woven fabric machine 6

Automatic Slitting Machine

Speed:600-800 M/Minute; Min. Slitting width:80mm; Max. Rolling size:1500mm diameter; Auto tensile control:online; Auto meter counting:online; Original:CHINA;







4800 mm SSS SS Hot selling spunbond production line pp spunbond non woven fabric machine 7



Raw Material Dosing Machine

Weight system: by weight; Hopper : 4 pcs; Accuracy:0.01%; Feeding Percentage: 1-99%; Original:USA/ITALY;



Precisely CNC center hold machining parts beyond custmer request .

4800 mm SSS SS Hot selling spunbond production line pp spunbond non woven fabric machine 8





4800 mm SSS SS Hot selling spunbond production line pp spunbond non woven fabric machine 9



Exhibition show with customer



4800 mm SSS SS Hot selling spunbond production line pp spunbond non woven fabric machine 10





4800 mm SSS SS Hot selling spunbond production line pp spunbond non woven fabric machine 11





4800 mm SSS SS Hot selling spunbond production line pp spunbond non woven fabric machine 12



PACKING PROCESS



We use a double packaging process of plastic and wood :first , we pack the machine parts i plastic so that they are protected from air and ranin , oxidaton or rust . The second part is packed with hard wood to weal the box , to avoid collision deformation , so that the machine handed over to you in good condition as new !



4800 mm SSS SS Hot selling spunbond production line pp spunbond non woven fabric machine 13





4800 mm SSS SS Hot selling spunbond production line pp spunbond non woven fabric machine 14



How to start the Nonwoven fabric manufacturing business ?



All potential buyers should check below factors if you want to produce nonwoven fabrics .

  • Enough project investment : This nonwoven fabric machine cost $200000 to $5000000 Ave.
  • Workshop space for nonwoven fabric machine 200 -500 ㎡,space length 30 meter , width 10 -20 meter , height 11 meter
  • Nonwoven fabric machine operation team 4 - 6 workers
  • Polypropylene raw material and additives 5 tons each day .
  • Stable electricity supply system 380 V.

Our Advantages



Our Strengths:

1.Quality Control in whole process, provide individual high cost-effective nonwoven lines, helping customer cost saving.

2.Focus on non woven equipment research and development in 14 years. Install and running more than 400 lines all over the world.

3.Import high precision CNC machine from Japan. The key parts machining in house, ensure to provide high quality machine for each customer.

4.Over 20 person team for machine after sales service.Ensure the customers can get quickly and professional installation and debugged in time.
