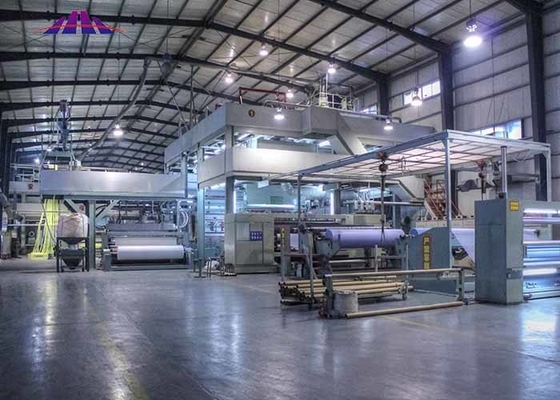

200gsm Spinneret Beam Polypropylene Fabric Machine For Mask Making

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : wood box packaged , machine wrapping with PE film keep cargo safe Delivery Time : For detailed talk
Payment Terms : L/C, T/T Supply Ability : For detailed talk
Place of Origin: Chuzhou China Brand Name: Chuzhou HH non-woven
Certification: CE Model Number: SMS SMMS SSMMS S SS SSS

Detail Information

Product: S Ss Sms Spunbond Nonwoven Fabric Machine Key Selling Point: Energy Saving
Core Component: Screw , Spinneret Beam , Dia ,PLC Machine Width: Follow Customer's Machine Model
Voltage: 220 V / 380 V / 415 V /440 V ( Option ) Usage: Textile Finishing Machinery
After Warranty: Video Technical Support ,online Support Port: Nanjing Or Shanghai
High Light:

Mask Making polypropylene fabric machine

,

200gsm polypropylene fabric machine

,

200gsm non woven fabric making machine

Product Description

High Capacity S Ss SSS SMS Nonwoven spunbond nonwoven Fabric Making Machine


Production specification:
Width: 1.6-3.2m
15 - 200 GSM
Embossing: oval and diamond
Color: it can be made into two different colors.
Special uses: antistatic, anti alcohol, anti aging, anti ultraviolet, anti oil and anti blood.
Packaging and lining: shopping bag, gift bag, dust cover, children's sleeping bag, leather shoes, luggage, home decoration, waterproof, filter material, subgrade, embankment fabric, etc.
Agriculture: used for plant antifreeze cover, insect proof sunshade umbrella, sunshade clothes, crop packaging bags, etc.
Medical and health: surgical clothing, protective clothing, hat, mask, information cloth, tape.
Previous sales services
*Query and consulting support.
*Support for sample testing.
Look at our factory.
after-sale service
*Training on how to install and use the machine.
Engineers can repair machines overseas.

200gsm Spinneret Beam Polypropylene Fabric Machine For Mask Making 0



S Model (Packaging , Agricultural Cover )



Working width Fabric Consumption Annual output/Year
1600mm 9-250G/㎡ 130KW 1800T
2400mm 9-250G/㎡ 180KW 2200T
3200mm 9-250G/㎡ 200KW 3300T
4000mm 9-250G/㎡ 300KW 4400T
4800mm 9-250G/㎡ 400KW 5100T



SS Model ( Baby Diaper ,Medical Products )



Working width Fabric Consumption Annual output/Year
1600mm 9-120G/㎡ 200KW 3700T
2400mm 9-120G/㎡ 2500KW 5100T
3200mm 9-120G/㎡ 200KW 6600T
4000mm 9-120G/㎡ 300KW 8800T
4800mm 9-120G/㎡ 450KW 10000T



SSS Model



Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈630KVA 650º-800º/Ton 5800T
2400mm 9-100G/㎡ ≈1000KVA 650º-800º/Ton 7300T
3200mm 9-100G/㎡ ≈1250KVA 650º-800º/Ton 10000T
4000mm 9-100G/㎡ ≈1500KVA 650º-800º/Ton 12400T
4800mm 9-100G/㎡ ≈1800KVA 650º-800º/Ton 14000T



M Model



Working width Fabric Power input Consumption Annual output/Year
1600mm 15-300G/㎡ ≈600KVA 3000º-3500º/Ton 800T
2400mm 15-300G/㎡ ≈800KVA 3000º-3500º/Ton 1100T
3200mm 15-300G/㎡ ≈1000KVA 3000º-3500º/Ton 1500T



SMS Model



Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈800KVA 1300º-1600º/Ton 3200T
2400mm 9-100G/㎡ ≈1250KVA 1300º-1600º/Ton 5100T
3200mm 9-100G/㎡ ≈1600KVA 1300º-1600º/Ton 7000T
4000mm 9-100G/㎡ ≈2000KVA 1300º-1600º/Ton 8700T
4800mm 9-100G/㎡ ≈2250KVA 1300º-1600º/Ton 10500T



SMMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈1500KVA 1700º-1900º/Ton 4000T
2400mm 9-100G/㎡ ≈1600KVA 1700º-1900º/Ton 6200T
3200mm 9-100G/㎡ ≈2200KVA 1700º-1900º/Ton 8400T
4000mm 9-100G/㎡ ≈2500KVA 1700º-1900º/Ton 10500T
4800mm 9-100G/㎡ ≈2630KVA 1700º-1900º/Ton 12700T





200gsm Spinneret Beam Polypropylene Fabric Machine For Mask Making 1



Description Of Non-woven Machine



1) Parts of spunbonded nonwoven fabric production line:
Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter



2) Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)---->Raw material----> Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
Web forming---->Calendering---->Winding----> Cutting---->Final





200gsm Spinneret Beam Polypropylene Fabric Machine For Mask Making 2



Machine parts introduction



200gsm Spinneret Beam Polypropylene Fabric Machine For Mask Making 3



Name :Extrusion Machine
Model : ¢130 / 150 / 170
Heating System :electricity heating
Drive Motor : Siemens
Original : CHINA



200gsm Spinneret Beam Polypropylene Fabric Machine For Mask Making 4



Name : Spinning beam

Model : 1600 / 2400 / 3200 mm

Heating System : Oil / Electricity Heating

Distribution Design :big hanger type

Original : CHINA



200gsm Spinneret Beam Polypropylene Fabric Machine For Mask Making 5



Name upper / down drafting unit

Effective Width : 1600 / 2400 / 3200 mm

Filament fineness : 1.6 - 2.4 Denier

Original : CHINA



200gsm Spinneret Beam Polypropylene Fabric Machine For Mask Making 6



Name : Spinneret width

Spinneret width : 256 mm

Hole size : 0.45 nmm

Hole Qty : 12350 - 24500 pcs

Material : SUS 431

Original : CHINA / GERMANY



200gsm Spinneret Beam Polypropylene Fabric Machine For Mask Making 7



Name production line control cabinet

Voltage:380 V / 3 phase

Touch Scren : Siemens

PLC :Siemens

Frequency :Siemens

Indicator :RKC , JAPAN

Original : China





Exhibition show



200gsm Spinneret Beam Polypropylene Fabric Machine For Mask Making 8



200gsm Spinneret Beam Polypropylene Fabric Machine For Mask Making 9



200gsm Spinneret Beam Polypropylene Fabric Machine For Mask Making 10



200gsm Spinneret Beam Polypropylene Fabric Machine For Mask Making 11



FAQ



Q1: What made you choose HH Nonwoven ?


A: HH has a team of professional engineers directly to your factory to install our spun-bonded
non-woven fabric making machine and melt-blown machine which high-speed, stable, and reliable
to help you quickly establish your own production line.



Q2: Are you a manufacturer?

A: Yes, we are a professional manufacturer of nonwoven machinery. We also had established
our own trading company to expand our foreign market business and provided our customer with
better service.



Q3: Do you accept OEM?

A: Of course we are.



Q4: How long is the warranty period?

A: We provide 1 year warranty period.



Q5: What's your packing?

A: Large parts wrapped in several turns of films, small parts boxed in a wooden crate, each
packaged is numbered and packed to easy loading/unloading and installation.



Q6: Can customers send workers to your place to study the operation of the machine?

A: Of course, you are warmly welcome.
