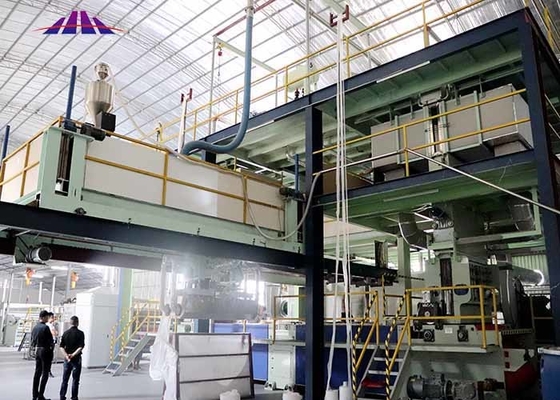

4000mm 550m/Min Non Woven Fabric Making Machine Packing For Rice Package Cloths

4000mm 550m/Min Non Woven Fabric Making Machine Packing For Rice Package Cloths
4000mm 550m/Min Non Woven Fabric Making Machine Packing For Rice Package Cloths 4000mm 550m/Min Non Woven Fabric Making Machine Packing For Rice Package Cloths 4000mm 550m/Min Non Woven Fabric Making Machine Packing For Rice Package Cloths

Large Image :  4000mm 550m/Min Non Woven Fabric Making Machine Packing For Rice Package Cloths

Product Details:
Place of Origin: Chuzhou China
Brand Name: Chuzhou HH non-woven
Certification: CE
Model Number: 1.6sss 2.4sss 3.4sss 4.8sss
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wooden case
Delivery Time: For detailed talk
Payment Terms: L/C, T/T
Supply Ability: For detailed talk

4000mm 550m/Min Non Woven Fabric Making Machine Packing For Rice Package Cloths

Description
Name: 4000 SSS Spunbond Nonwoven Fabric Machine Final Product: S SS SSS Non Woven Roll
Working Width: 4000mm Max Speed: 550 M / Min
Place Of Origin: Chuzhou China Number Of Die: Three
GSM: 9 - 250 G Size: 50*18*12 M
High Light:

4000mm non woven fabric making machine

,

550m/min non woven fabric making machine

,

4000mm non woven fabric manufacturing machine

packing shopping bag rice package cloths S SS SSS spunbond non fabric machine



Non-woven bags have greater economic effect: from the promulgation of plastic restrictions, plastic bags will gradually withdraw from the commodity packaging market, which is conducive to reusable non-woven bags. Non-woven bags are easier to print and color than plastic bags. In addition, it can be reused. You can consider adding more beautiful patterns and advertisements on non-woven bags than plastic bags, because its loss rate is lower than plastic bags, thus saving costs and advertising benefits are more obvious.

S is spunbond nonwovens (spunbond nonwovens), single S is single layer spunbond nonwovens, double S is double layer composite spunbond nonwovens, triple S is triple layer composite spunbond nonwovens.

4000mm 550m/Min Non Woven Fabric Making Machine Packing For Rice Package Cloths 0


Machine Model Reifenhauser Reicofil 3/4,Spunbond lines, spun-melt lins S, SS,SSS, SXS,SXXS,SMMS ,SMS ,SSMMS
Machine Size 18m-60m(L)*10m-31m(W)*10m-12m(H)
Raw Material required

PP(polypropylene),additives

MFI/MFR:25-40g/10min(spunbonding process)

MFI/MFR:800-2000g/10min (Melt-blowning process)

Effective width 1600mm,2400mm,3200mm,4000mm,4800mm customizable width by requirements
Max Speed 150m/mn-550m/min
Transformer&Power consumption

Transformer require:200KVA-3000KVA

Power consumption :500KWH/Ton-1400KWH/Ton

Output per year 1500 Tons - 10000 Tons
Products GSM 8gsm-250 gsm
Applications of products

Industrial:Shopping bags, furniture ,agriculture ,packageing,etc

Medical:Surgical gown /cap /sheet /mask ,etc

Hygiene: Diapers ,sanitary ,napking , etc.





HHM 4000 m SSS Double beam fabric making line date



Width 4000 M
Gsm 9 - 100 gsm
Output per day 16 - 21 Ton
Machine Speed ≦ 550 m / min
Transformer ≈ 1500 KVA
Power Consumption 650º - 800º / Ton
Machine Size 50 * 18 *12 M




Spunbond fabrci making will help your profit , for example 3.2 M



Type HHM S 3.2 Fabric Making line , Output Daily :10 Ton
Items Cost USD/ton Cost /year
Polypropylene PP Chips $1,400 $5,110,000
Electrictity Power $90 $328,500
Laborer $32 $116,800
Machine Parts consumption $3 $10,950
Total   $5,566,250
Non woven Fabric price $1,881 $6,865,650
Return per year   $1,299,400

S Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-250G/㎡ ≈200KVA 650º-700º/Ton 1800T
2400mm 9-250G/㎡ ≈250KVA 650º-700º/Ton 2200T
3200mm 9-250G/㎡ ≈315KVA 650º-700º/Ton 3300T
4000mm 9-250G/㎡ ≈360KVA 650º-700º/Ton 4400T
4800mm 9-250G/㎡ ≈400KVA 650º-700º/Ton 5100T



SS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-120G/㎡ ≈400KVA 650º-800º/Ton 3700T
2400mm 9-120G/㎡ ≈500KVA 650º-800º/Ton 5100T
3200mm 9-120G/㎡ ≈800KVA 650º-800º/Ton 6600T
4000mm 9-120G/㎡ ≈1000KVA 650º-800º/Ton 8800T
4800mm 9-120G/㎡ ≈1200KVA 650º-800º/Ton 10000T




SSS Model



Effective width(mm) 1600 2400 3200 4000 4800
Output(ton/year) 5800T 7300T 10000T 12400T 14000T
GMS Range(g/㎡) 9-100 9-100 9-100 9-100 9-100
Max.speed(m/min) 550 550 550 550 550





SMS Model



Effective width(mm) 1600 2400 3200 4000 4800
Output(ton/year) 3200T 5100T 7000T 8700T 10500T
GMS Range(g/㎡) 9-100 9-100 9-100 9-100 9-100
Max.speed(m/min) 350 350 350 350 350



SMMS



Effective width(mm) 1600 2400 3200 4000 4800
Output(ton/year) 4000T 6200T 5400T 10500T 12700T
GMS Range(g/㎡) 9-100 9-100 9-100 9-100 9-100
Max.speed(m/min) 450 450 450 450 450


4000mm 550m/Min Non Woven Fabric Making Machine Packing For Rice Package Cloths 1

4000mm 550m/Min Non Woven Fabric Making Machine Packing For Rice Package Cloths 2



1) Parts of spunbonded nonwoven fabric production line:


Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter


2) Spunbonded process and technical flow chart:


Additive(Recycling off-cut fabric)---->Raw material----> Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
Web forming---->Calendering---->Winding----> Cutting---->Final product



system maim parts



4000mm 550m/Min Non Woven Fabric Making Machine Packing For Rice Package Cloths 3



Name:Main Extruder
Brand:HHM
Original:China
Diameter:Φ135mm for 1.6m,Φ170mm for 3.2m,

Max speed: 75r/min for 1.6m , 85r/min for 3.2m

Motor:90kw for 1.6m , 132kw for 3.2m



4000mm 550m/Min Non Woven Fabric Making Machine Packing For Rice Package Cloths 4



Name: Spinning Box

Orifice number:11019 for 1.6m , 17651 for 3.2m

Orifice diameter:Φ0.45mm

L/D=4:1

Max temperature:300℃



Fuction : for spining the PP flament.



Name Spinning box
Orifice number 1109 for 1.6 m , 17651 for 3.2 m
Orifice diameter ¢0.45mm L/D 4 : 1
Max temperature 300℃
Fuction For spinning the PP flow





Precisely heavily CNC center keep machining parts beyond customer request .



4000mm 550m/Min Non Woven Fabric Making Machine Packing For Rice Package Cloths 5



4000mm 550m/Min Non Woven Fabric Making Machine Packing For Rice Package Cloths 6





Exhibition



4000mm 550m/Min Non Woven Fabric Making Machine Packing For Rice Package Cloths 7



4000mm 550m/Min Non Woven Fabric Making Machine Packing For Rice Package Cloths 8



Our service



Pre-Sales Service



Design and make plan for the workplace.

Offer sketch map of machine and place it into the workplace



After-sales Service



Training and training how to use the machine.

Engineers can repair machinery.
