China PP Spunbond Nonwoven Production Line manufacturer

3200mm SSS PP Spunbonded Non Woven Fabric Making Machine for medical higiene

Product Details:
Place of Origin: Chuzhou China
Brand Name: Chuzhou HH non-woven
Certification: CE
Model Number: HHM - SS SSS sms
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: components wood box packaged , machine wrapping with PE film keep cargo safe
Delivery Time: 90 - 150 days
Payment Terms: L/C, T/T
Supply Ability: 3 line / months

Detail Information

Product: SSS 3200 Spunbond Nonwoven Fabric Machine Core Component: PLC , Motor , Pump , Gear Box
Effective Width: 3200 Mm Annual Output: 10000 Ton
Application: Manufacturing Plant , Food And Beverage Service: Engineer Over Sea Or Video On Line
Install Capacity: 1600 KW Port: Nanjing / Shanghai

Product Description






3200mm SSS PP Spunbonded Non Woven Fabric Making Machine for medical higiene

Characteristics of 1.
Dosing measurement system
Vacuum suction or blower air supply system. A weight measuring system with precise accuracy. High and low limit automatic alarm.
Rotating beam
Single hanger melt distribution, 4 coordinates CNC manufacturing, manual grinding.
Quenching chamber
Multilayer and multistage honey board with holes of different sizes. Quenched air is evenly distributed and easy to disassemble and clean.
Stretching channel
The inner wall adopts polished stainless steel, the width of the upper and lower expansion groove can be adjusted at the same time.
Diffusion channel
The channel is made of stainless steel. Special forming technology and welding technology to ensure that the whole channel smooth, no deformation.
transmitters
Roller adopts dynamic balance detection to ensure smooth operation. The prepress roller is coated with ceramic to prevent winding. MB system has pneumatic belt protection.
Melt-blown system
Imported spiral fan is used to produce tensile air. The pressure is constant, and the lower the spinning pressure, the higher the spinning pressure
High efficiency, low power consumption.
Electrical control system
The whole machine is controlled by PLC, and the whole synchronous system adopts ac frequency conversion motor, which can display process parameters and fault and alarm. The whole system is in a stable and reliable state.
Hot pressing roller is heated by heat conduction oil circulation, ceramic roller surface polishing, G4. The dynamic balance correction of level 5 was carried out
Draught, horizontal air supply function, internal lifting adjustment
S1, S2, S3 can be selectively turned on or off
Ruffin positive pressure ultra-high speed air production process
The production line adopts "slit suction and pull" technology
Siemens Electrical Control System



3200 SSS Model

Effective Width 3200mm
Weight Range 9 - 100 g / ㎡
Out put daily 24 - 30 ton
Machine speed ≦ 550 m / min
Transformer ≈ 1250 KVA
Power Consumption 650º - 800 º / Ton
Machine Size 50*20 * 12 M





3200mm SSS PP Spunbonded Non Woven Fabric Making Machine for medical higiene 0







Model Effective Width Weight Range Output per day Machine speed Tranformer Power consumption Machine Size
HHM-1.6SSS 1.6M 9-100G/M2 12-17Ton ≦550m/min ≈630KVA 650º-800º/Ton 50M*15M*12M
HHM-2.4SSS 2.4M 9-100G/M2 16-21Ton ≦550m/min ≈1000KVA 650º-800º/Ton 50M*18M*12M
HHM-3.2SSS 3.2M 9-100G/M2 24-30Ton ≦550m/min ≈1250KVA 650º-800º/Ton 50M*20M*12M
HHM-4.0SSS 4.0M 9-100G/M2 28-35Ton ≦550m/min ≈1500KVA 650º-800º/Ton 50M*22M*12M
HHM-4.8SSS 4.8M 9-100G/M2 32-40Ton ≦550m/min ≈1800KVA 650º-800º/Ton 50M*24M*12M



SMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈800KVA 1300º-1600º/Ton 3200T
2400mm 9-100G/㎡ ≈1250KVA 1300º-1600º/Ton 5100T
3200mm 9-100G/㎡ ≈1600KVA 1300º-1600º/Ton 7000T
4000mm 9-100G/㎡ ≈2000KVA 1300º-1600º/Ton 8700T
4800mm 9-100G/㎡ ≈2250KVA 1300º-1600º/Ton 10500T



SMMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈1500KVA 1700º-1900º/Ton 4000T
2400mm 9-100G/㎡ ≈1600KVA 1700º-1900º/Ton 6200T
3200mm 9-100G/㎡ ≈2200KVA 1700º-1900º/Ton 8400T
4000mm 9-100G/㎡ ≈2500KVA 1700º-1900º/Ton 10500T
4800mm 9-100G/㎡ ≈2630KVA 1700º-1900º/Ton 12700T


ITEM NO PRODUCTION (T/Y) SPEED (M/MIN) INSTALLED CAPACITY (KW) POWER CONSUMPTION/T DIMENSION (W*L*H)
1.6m S 1500 130 280 800KW*H 10m*20m*10.5m
1.6m SS 2800 250 550 800KW*H 10m*30m*10.5m
1.6m SSS 4600 320-350 800 600-800KW*H 13m*30m*10.5m
1.6m SMS 3400 250 760 1100-1400KW*H 15m*30m*10.5m
2.4m S 2200 130 340 800KW*H 14m*20m*10.5m
2.4m SS 4200 250 700 800KW*H 14m*30m*10.5m
2.4m SSS 6900 320-350 950 600-800KW*H 15m*30m*10.5m
2.4m SMS 5100 250 1000 1100-1400KW*H 18m*30m*10.5m
3.6m S 3000 130 500 800KW*H 17m*20m*10.5m
3.6m SS 5600 250 900 800KW*H 17m*30m*10.5m
3.6m SSS 9000 320-350 1300 600-800KW*H 17m*30m*10.5m
3.6m SMS 6900 250 1600 1100-1400KW*H 21m*30m*10.5m

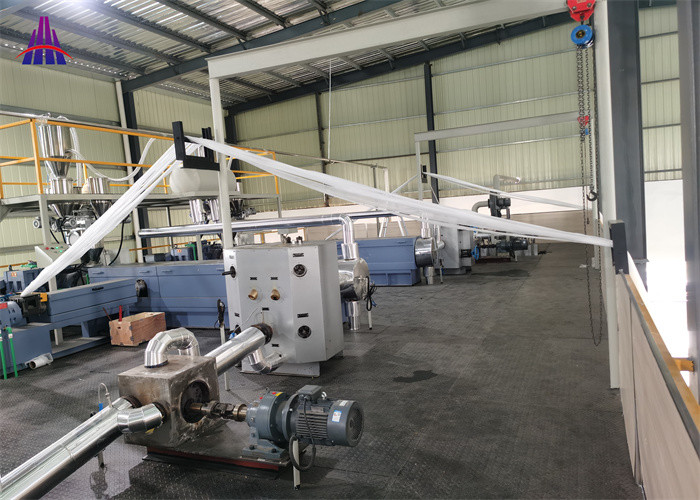

Image of non wovne fabric making system

3200mm SSS PP Spunbonded Non Woven Fabric Making Machine for medical higiene 1



3200mm SSS PP Spunbonded Non Woven Fabric Making Machine for medical higiene 2


Machine Model Reifenhauser Reicofil 3/4,Spunbond lines, spun-melt lins S, SS,SSS, SXS,SXXS,SMMS ,SMS ,SSMMS
Machine Size 18m-60m(L)*10m-31m(W)*10m-12m(H)
Raw Material required

PP(polypropylene),additives

MFI/MFR:25-40g/10min(spunbonding process)

MFI/MFR:800-2000g/10min (Melt-blowning process)

Effective width 1600mm,2400mm,3200mm,4000mm,4800mm customizable width by requirements
Max Speed 150m/mn-550m/min
Transformer&Power consumption

Transformer require:200KVA-3000KVA

Power consumption :500KWH/Ton-1400KWH/Ton

Output per year 1500 Tons - 10000 Tons
Products GSM 8gsm-250 gsm
Applications of products

Industrial:Shopping bags, furniture ,agriculture ,packageing,etc

Medical:Surgical gown /cap /sheet /mask ,etc

Hygiene: Diapers ,sanitary ,napking , etc.








M Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 15-300G/㎡ ≈600KVA 3000º-3500º/Ton 800T
2400mm 15-300G/㎡ ≈800KVA 3000º-3500º/Ton 1100T
3200mm 15-300G/㎡ ≈1000KVA 3000º-3500º/Ton 1500T






SMMMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-80G/㎡ ≈1600KVA 1700º-1900º/Ton 6200T
2400mm 9-80G/㎡ ≈2000KVA 1700º-1900º/Ton 8000T
3200mm 9-80G/㎡ ≈3000KVA 1700º-1900º/Ton 11000T
4200mm 9-80G/㎡ ≈3500KVA 1700º-1900º/Ton 14000T
4800mm 9-80G/㎡ ≈4000KVA 1700º-1900º/Ton 16000T



Description Of Non-woven Machine



1) Parts of spunbonded nonwoven fabric production line:
Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter
2) Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)---->Raw material----> Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
Web forming---->Calendering---->Winding----> Cutting---->Final product



Description Of Non-woven Machine



1) Parts of spunbonded nonwoven fabric production line:
Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter
2) Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)---->Raw material----> Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
Web forming---->Calendering---->Winding----> Cutting---->Final product

3200mm SSS PP Spunbonded Non Woven Fabric Making Machine for medical higiene 3



3200mm SSS PP Spunbonded Non Woven Fabric Making Machine for medical higiene 4



Main part of Nonwove system



3200mm SSS PP Spunbonded Non Woven Fabric Making Machine for medical higiene 5



Extrusion Machine

Aperture:90 300kg/h 1pc;

Heating System: electricity heating; Drive Motor: Siemens; Original:CHINA;

3200mm SSS PP Spunbonded Non Woven Fabric Making Machine for medical higiene 6



Candle filtration Machine

Filtration Area: 3.5m²; Capacity: 650kgs/h; Filtration Chamber: 2 pcs (switch online); Original:CHINA;





3200mm SSS PP Spunbonded Non Woven Fabric Making Machine for medical higiene 7

Spinning Pump

Capacity:300-450Kg/H; Speed:40Rpm/Minute; Drive Motor:Siemens; Original: CHINA/GERMANY



3200mm SSS PP Spunbonded Non Woven Fabric Making Machine for medical higiene 8

Automatic Slitting Machine

Speed:600-800 M/Minute; Min. Slitting width:80mm; Max. Rolling size:1500mm diameter; Auto tensile control:online; Auto meter counting:online; Original:CHINA;







3200mm SSS PP Spunbonded Non Woven Fabric Making Machine for medical higiene 9



Raw Material Dosing Machine

Weight system: by weight; Hopper : 4 pcs; Accuracy:0.01%; Feeding Percentage: 1-99%; Original:USA/ITALY;



Precisely CNC center hold machining parts beyond custmer request .

3200mm SSS PP Spunbonded Non Woven Fabric Making Machine for medical higiene 10





3200mm SSS PP Spunbonded Non Woven Fabric Making Machine for medical higiene 11



Exhibition show with customer



3200mm SSS PP Spunbonded Non Woven Fabric Making Machine for medical higiene 12





3200mm SSS PP Spunbonded Non Woven Fabric Making Machine for medical higiene 13





3200mm SSS PP Spunbonded Non Woven Fabric Making Machine for medical higiene 14



PACKING PROCESS



We use a double packaging process of plastic and wood :first , we pack the machine parts i plastic so that they are protected from air and ranin , oxidaton or rust . The second part is packed with hard wood to weal the box , to avoid collision deformation , so that the machine handed over to you in good condition as new !



3200mm SSS PP Spunbonded Non Woven Fabric Making Machine for medical higiene 15





3200mm SSS PP Spunbonded Non Woven Fabric Making Machine for medical higiene 16



How to start the Nonwoven fabric manufacturing business ?



All potential buyers should check below factors if you want to produce nonwoven fabrics .

  • Enough project investment : This nonwoven fabric machine cost $200000 to $5000000 Ave.
  • Workshop space for nonwoven fabric machine 200 -500 ㎡,space length 30 meter , width 10 -20 meter , height 11 meter
  • Nonwoven fabric machine operation team 4 - 6 workers
  • Polypropylene raw material and additives 5 tons each day .
  • Stable electricity supply system 380 V.

Our Advantages



Our Strengths:

1.Quality Control in whole process, provide individual high cost-effective nonwoven lines, helping customer cost saving.

2.Focus on non woven equipment research and development in 14 years. Install and running more than 400 lines all over the world.

3.Import high precision CNC machine from Japan. The key parts machining in house, ensure to provide high quality machine for each customer.

4.Over 20 person team for machine after sales service.Ensure the customers can get quickly and professional installation and debugged in time.



Why choose us



1.Machine Inspection

We warmly welcome the customer to come our factory to inspect the production line before delivery . The machines only be delivered when the you accept the quality of the machines and the product.
2.Installation and training
Once we finalize the production and delivery,we will assign 3lots about 4-7 professional engineers both in mechanical and electrical parts to the buyer’s factory for installation and samples test . And the engineers will also train some skilled workers for buyer. The seller will explain, operate and analyse in theory on the spot until the customer can operate the equipment himself. The customer can consult with the seller at any moment if they don’t understand.
If you have difficulties or faults that can not be resolved by themselves during the practical production, we will offer relative technology immediately or assign workers to resolve the

problems on the spot.
