System Control PP Spunbond Nonwoven Fabric Machine 3200mm SSS SS S

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : components wood box packaged , machine wrapping with PE film keep cargo safe Delivery Time : 90 - 150 days
Payment Terms : L/C, T/T Supply Ability : 3 line / months
Place of Origin: Chuzhou China Brand Name: Chuzhou HH non-woven
Certification: CE Model Number: HHM - SS SSS

Detail Information

Item: SSS Spunbond Nonwoven Fabric Machine Advantage: High Production Capacity
Working Process: System Control Key Selling: Sustainable
Application Industries: Manufacturing Plant Finished Product: Non Woven Roll
Video Outgoing Inspection: Provide Certificate: CE ISO 900
High Light:

pp spunbond nonwoven fabric machine

,

3200mm pp spunbond nonwoven machine

,

3200mm non woven fabric manufacturing machine

Product Description



HH Nonwoven Brand high capacity 3200mm SSS SS S PP Spunbond Nonwoven fabric making machine

Product Description



Polypropylene 3200mm extruder and SSS model
PP non-woven fabric has become more and more popular in recent years.
The main reason is that this kind of fabric is environmentally friendly without pollution and waste.
Nonwoven fabric, also known as spunbonded nonwovens, is composed of directional or random fibers. It is a new generation of environmental protection materials. It has the characteristics of moisture-proof, breathable, flexible, light weight, non combustion, easy decomposition, non-toxic and non stimulating, rich color, low cost, reusable and so on.
For nonwovens, there are different models, such as s, SS, SSS, SMS, SMMs and ssmms. The fabric is widely used in making shopping bags, hygiene, medical care and so on.

System Control PP Spunbond Nonwoven Fabric Machine 3200mm SSS SS S 0

Sss nonwoven fabric

SSS Nonwoven Fabric
Item





G/m2

specification

15 30 45 60 90 120
Allowable deviation(%) First class ±8 ±7
Final product ±10 ±9
Width deviation (%) First class +2.0 ,-1.0 +2.0 ,-1.0
Final product +2.5 ,-1.5 +2.5 ,-1.5

Fracture

strength

MD N/5cm First class 15 35 50 68 95 130
Final product 12 30 45 65 91 108
CD N/5cm First class 10 28 44 64 82 95
Final product 8 25 38 57 57 90



3200 SSS Model

Effective Width 3200mm
Weight Range 9 - 100 g / ㎡
Out put daily 24 - 30 ton
Machine speed ≦ 550 m / min
Transformer ≈ 1250 KVA
Power Consumption 650º - 800 º / Ton
Machine Size 50*20 * 12 M



M Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 15-300G/㎡ ≈600KVA 3000º-3500º/Ton 800T
2400mm 15-300G/㎡ ≈800KVA 3000º-3500º/Ton 1100T
3200mm 15-300G/㎡ ≈1000KVA 3000º-3500º/Ton 1500T



SMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈800KVA 1300º-1600º/Ton 3200T
2400mm 9-100G/㎡ ≈1250KVA 1300º-1600º/Ton 5100T
3200mm 9-100G/㎡ ≈1600KVA 1300º-1600º/Ton 7000T
4000mm 9-100G/㎡ ≈2000KVA 1300º-1600º/Ton 8700T
4800mm 9-100G/㎡ ≈2250KVA 1300º-1600º/Ton 10500T

SMMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈1500KVA 1700º-1900º/Ton 4000T
2400mm 9-100G/㎡ ≈1600KVA 1700º-1900º/Ton 6200T
3200mm 9-100G/㎡ ≈2200KVA 1700º-1900º/Ton 8400T
4000mm 9-100G/㎡ ≈2500KVA 1700º-1900º/Ton 10500T
4800mm 9-100G/㎡ ≈2630KVA 1700º-1900º/Ton 12700T



SMMMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-80G/㎡ ≈1600KVA 1700º-1900º/Ton 6200T
2400mm 9-80G/㎡ ≈2000KVA 1700º-1900º/Ton 8000T
3200mm 9-80G/㎡ ≈3000KVA 1700º-1900º/Ton 11000T
4200mm 9-80G/㎡ ≈3500KVA 1700º-1900º/Ton 14000T
4800mm 9-80G/㎡ ≈4000KVA 1700º-1900º/Ton 16000T

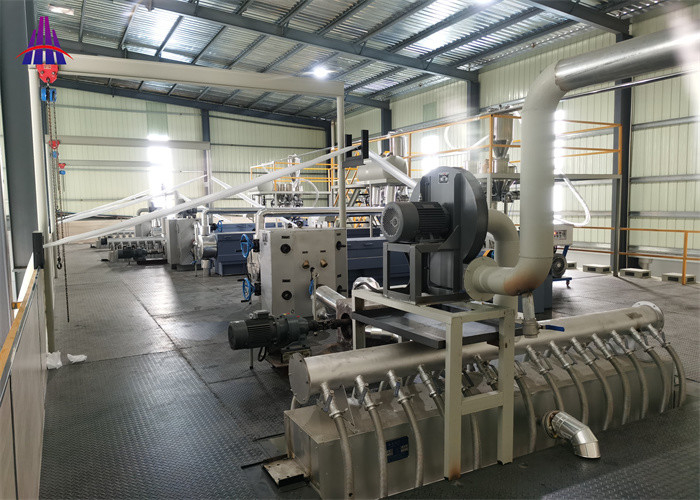

Image of non woven fabric making line



System Control PP Spunbond Nonwoven Fabric Machine 3200mm SSS SS S 1



Description Of Non-woven Machine



1) Parts of spunbonded nonwoven fabric production line:
Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter
2) Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)---->Raw material----> Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
Web forming---->Calendering---->Winding----> Cutting---->Final product



Description Of Non-woven Machine



1) Parts of spunbonded nonwoven fabric production line:
Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter
2) Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)---->Raw material----> Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
Web forming---->Calendering---->Winding----> Cutting---->Final product

System Control PP Spunbond Nonwoven Fabric Machine 3200mm SSS SS S 2

Main part of Nonwove system



System Control PP Spunbond Nonwoven Fabric Machine 3200mm SSS SS S 3

Candle filtration Machine

Filtration Area: 3.5m²; Capacity: 650kgs/h; Filtration Chamber: 2 pcs (switch online); Original:CHINA;





System Control PP Spunbond Nonwoven Fabric Machine 3200mm SSS SS S 4

Spinning Pump

Capacity:300-450Kg/H; Speed:40Rpm/Minute; Drive Motor:Siemens; Original: CHINA/GERMANY



System Control PP Spunbond Nonwoven Fabric Machine 3200mm SSS SS S 5

Automatic Slitting Machine

Speed:600-800 M/Minute; Min. Slitting width:80mm; Max. Rolling size:1500mm diameter; Auto tensile control:online; Auto meter counting:online; Original:CHINA;







System Control PP Spunbond Nonwoven Fabric Machine 3200mm SSS SS S 6



Raw Material Dosing Machine

Weight system: by weight; Hopper : 4 pcs; Accuracy:0.01%; Feeding Percentage: 1-99%; Original:USA/ITALY;



Precisely CNC center hold machining parts beyond custmer request .

System Control PP Spunbond Nonwoven Fabric Machine 3200mm SSS SS S 7





System Control PP Spunbond Nonwoven Fabric Machine 3200mm SSS SS S 8



Exhibition show with customer



System Control PP Spunbond Nonwoven Fabric Machine 3200mm SSS SS S 9





System Control PP Spunbond Nonwoven Fabric Machine 3200mm SSS SS S 10





System Control PP Spunbond Nonwoven Fabric Machine 3200mm SSS SS S 11



PACKING PROCESS



We use a double packaging process of plastic and wood :first , we pack the machine parts i plastic so that they are protected from air and ranin , oxidaton or rust . The second part is packed with hard wood to weal the box , to avoid collision deformation , so that the machine handed over to you in good condition as new !



System Control PP Spunbond Nonwoven Fabric Machine 3200mm SSS SS S 12





System Control PP Spunbond Nonwoven Fabric Machine 3200mm SSS SS S 13



Our Advantages



Our Strengths:

1.Quality Control in whole process, provide individual high cost-effective nonwoven lines, helping customer cost saving.

2.Focus on non woven equipment research and development in 14 years. Install and running more than 400 lines all over the world.

3.Import high precision CNC machine from Japan. The key parts machining in house, ensure to provide high quality machine for each customer.

4.Over 20 person team for machine after sales service.Ensure the customers can get quickly and professional installation and debugged in time.
