HH non woven ssmms smms sms meltblown spunbond fabric production line

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : components wood box packaged , machine wrapping with PE film keep cargo safe Delivery Time : 90 - 150 days
Payment Terms : L/C, T/T Supply Ability : 3 line / months
Place of Origin: Chuzhou China Brand Name: Chuzhou HH non-woven
Certification: CE Model Number: ssmms

Detail Information

Non Woven System: HHM Ssmms Meltblown Fabric Production Line Advantage: Energy Saving , Labor Force Saving
Inventer: ABB Control: SIEMES PLC +TOUCH SCREEN
After Warranty Service: Vedio Technical Support Machine Size: Follow Customer
Condition: New Package: Wooden Box In Container

Product Description

HH non woven ssmms smms sms meltblown spunbond fabric production line







Machine sample shows:
Shopping bags: D bags, T bags, handbags, shopping bags
Agricultural mulch, fruit mulch, mattress mulch
Baby diapers, female sanitary napkins
Doctor's wear, surgical gown, surgical tablecloth
Mechanical parts

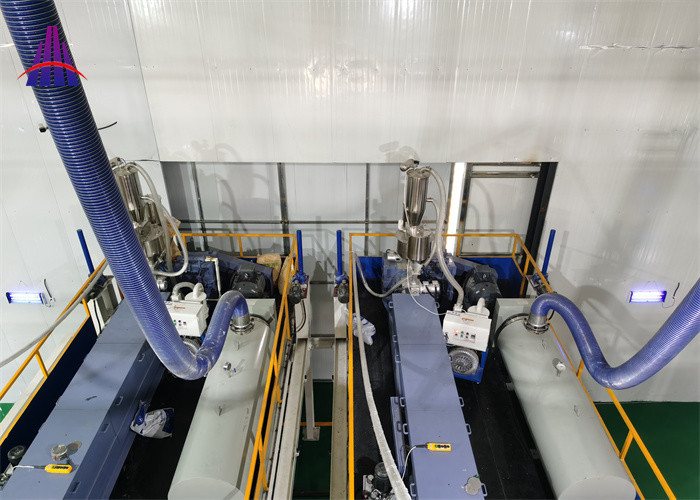

Name: Automatic feeder
Feeding capacity: 1.6m, 500kg/h
650 kg/h, 2.4 m
800 kg/h, 3.2 m
Delivery distance: 12 meters
Material: stainless steel
Mechanical parts
Name: Main extruder
Diameter: 130 mm at 1.6 m
150 mm for 2.4 m
170mm for 3.2m
Maximum speed: 75r/min at 1.6m
2.4 m to 80 r/min
3.2 m to 85 r/min
Mechanical parts
Name: Spinning box
Orifice diameter: 0.45mm
Port number: 11019, suitable for 1.6m
17651, for 3.2m
Mechanical parts
Name: Web forming machine
Speed: 10-150m/min in S mode
SS/SMS mode is 120-250m/min
Maximum negative pressure: 500Pa


Description :



The 1600mm SSMMS non-woven fabric making machine production line has high efficiency and high quality non-woven production capacity. The effective width of the cloth is 1.6m, and the speed of the production line can reach 600 m / min. The output cloth is widely used, especially in health protection.



1600 SMMSS Model

Effective Width 1600mm
Weight Range 9 - 80 g / ㎡
Out put daily 13 - 18 ton
Machine speed ≦ 600 m / min
Transformer ≈ 1600 KVA
Power Consumption 1700º - 1900 º / Ton
Machine Size 60 * 20 * 12 M



HH non woven ssmms smms sms meltblown spunbond fabric production line 0

Product Application:HH Non woven Fabric Making Machine With S/SS/SSS/SMS/SMMS Model

Non-woven fabric is also called the spunbond nonwoven fabric, is by the directional or random fiber and composition, is a new generation of environmental protection material, has moisture-proof, breathable, flexible, qualitative light, no combustion, easy to decompose, non-toxic non-irritating, rich colors, with low cost, reusable, etc.
For the nonwoven machine,have different modle like S,SS,SSS,SMS,SMMS,SSMMS.The fabic widely application to make shopping bags,hygiene,medical and health.




Model Effective Width Weight Range Output per day Machine Speed Transformer Power Consumption Machine Size
HHM-1.6SMMSS 1.6M 9-80G 13-18Ton ≦600m/min ≈1600KVA 1700º-1900º/Ton 60M*20M*12M
HHM-2.4SMMSS 2.4M 9-80G 17-23Ton ≦600m/min ≈2000KVA 1700º-1900º/Ton 60M*23M*12M
HHM-3.2SMMSS 3.2M 9-80G 25-31Ton ≦600m/min ≈3000KVA 1700º-1900º/Ton 60M*25M*12M
HHM-4.2SMMSS 4.2M 9-80G 30-40Ton ≦600m/min ≈3500KVA 1700º-1900º/Ton 60M*28M*12M
HHM-4.8SMMSS 4.8M 9-80G 32-45Ton ≦600m/min ≈4000KVA 1700º-1900º/Ton 60M*31M*12M









Spunmelt Composite Nonwovens Mainly Applications
Nonwoven Medical Product Surgical drapes ,Surgeon’s mask ,etc .
Nonwoven Hygiene Product Baby and adult diapers
Work protection product Protctive clothing , breathing masks
Nonwoven Filtration product Protective clothing , breathing masks



Spunbonded Nowovens Maily Applications
Nonwoven Hygiene Product Cleaning wipes:Baby care , cosmetics ,etc.Baby and adult diapers:Top sheets , back sheets ,ears, tapes, landing zone;Female hygiene:Wings ,Top sheets
Nonwoven Medical Product Surgeon’s mask ,disposable garments ,Surgeon’s Cap,surgical drapes ,surgical sheet ,shoe covers , etc
Nonwoven packaging Product Shopping bag ,rice backaging ,tea bag ,clothes packaging, etc.
Nonwoven Furniture product Seating:sub-paneling, intermediate layers .Beds:Pocket springs, mattresses, cushions, bed covers, disposal bedding ,etc.
Nonwoven Technical product Structural,engineering:roofinsulation,sheeting ,diaphragms Agriculture :Crop forcing nonwovens,insect protection ,etc.Geotextile:Erosion protection,filtration,reinforcement,drainage,separation layers, embankment fortification etc.for streets,dikes, and farms.Agriculture:Crop forcing nonwovens,insect protection,etc. Automotive:Inner paneling,sound insulation,insulation, etc.



Meltblown Nonwovens Mainly Applications
Nonwoven Sanitary product Female hygiene,child and baby hygiene,Incontinence products,pads ,Absorbing pads ,Functional inserts for controlled absorption
Nonwoven Absorbents product Absorbent cloths and wiping cloths,liquids (benzene,water ,blood),Media for oil absorption
Nonwoven Filtration Product Air ,Gas,liquids(benzene,water,blood),etc.

SSMMS data

Design speed max 600m/min
Width 4.2m/3.2m/2.4m/1.6m
Gram weight range 8-150g/m2
Production capacity 18000ton/year 13500ton/year 10500ton/year


HHM-SSMMS Five-Beam spunmelt nonwoven fabric making machine/line

Effective

Width(mm)

Raw Materials

GSM Range

(g/sq.m)

Max.Speed

(Tons/year)

Annual Capacity

(Tons/year)

Daily Capacity

(Tons/Day)

2400



Polypropylene(PP)

9-80 600 8400 23
3200 11400 31
4200 14600 40
The whole line can CUSOMIZED as your needs .

Major Characteristics:

1. The whole line is well-structured and easy to operate
2. The whole line highly automated
3. Control elements are of well-know make, high performance and reliable technologies
4. The whole line are controlled by PLC and operated with touch -scree.
5. The allocation of the main frame and auxiliary equipment can be special designed and configurated according to customer's requirements.





HH non woven ssmms smms sms meltblown spunbond fabric production line 1





S Model (Packaging , Agricultural Cover )

Working width Fabric Consumption Annual output/Year
1600mm 9-250G/㎡ 130KW 1800T
2400mm 9-250G/㎡ 180KW 2200T
3200mm 9-250G/㎡ 200KW 3300T
4000mm 9-250G/㎡ 300KW 4400T
4800mm 9-250G/㎡ 400KW 5100T



SS Model ( Baby Diaper ,Medical Products )

Working width Fabric Consumption Annual output/Year
1600mm 9-120G/㎡ 200KW 3700T
2400mm 9-120G/㎡ 2500KW 5100T
3200mm 9-120G/㎡ 200KW 6600T
4000mm 9-120G/㎡ 300KW 8800T
4800mm 9-120G/㎡ 450KW 10000T



SMS/SMMS/SSMS/SSMMS Model(Filtration Material, Baby Diaper ,Medical Products)

Working width Fabric Consumption Annual output/Year
1600mm 15-250G/㎡ 400KW 3200T
2400mm 15-250G/㎡ 600KW 5100T
3200mm 15-250G/㎡ 800KW 7000T
4000mm 15-250G/㎡ 1000KW 8700T
4800mm 15-250G/㎡ 1200KW 10500T



Parts of spunbonded nonwoven fabric production line:



Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter



Spunbonded process and technical flow chart:

Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product



Parts of Melt blown nonwoven fabric production line:



Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter



Melt blown process and technical flow chart:



Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product



HH non woven ssmms smms sms meltblown spunbond fabric production line 2



HH non woven ssmms smms sms meltblown spunbond fabric production line 3





Core component of non wovne system



HH non woven ssmms smms sms meltblown spunbond fabric production line 4

Meltblown die head assembly

maximum temperature: 300.;

Max.output:200kg/h;

Heating zone:8tod;

Perforated length:3,350mm;

HPI:40;

1 Sets L/D=10; Number of holes:5.276;

Capillary diameter:0.3mm;

Capillary length:3,600mm;



HH non woven ssmms smms sms meltblown spunbond fabric production line 5



Oil Heating Furnace

The heat-conducting oil furnace is mainly used for heating, melting, spinning, thermosetting polymerization, finishing of fabric, extension and drying equipment. The working temperature can be controlled accurately



HH non woven ssmms smms sms meltblown spunbond fabric production line 6

Name: Material Auto-Feeder

Feeding capacity: 300Kg/h for 3.2m,

Motor Power: 1.1KW

The vacuum suction machine forms a negative pressure air flow under vacuum. Under the action of this airflow, the transported material is transported to the other container through the suction pipeline instantaneously. As a result of the vacuum condition, the material will not leak into the surrounding environment and prevent dust pollution even if the pipe leakage occurs. It is a device used to adsorb raw materials.



Extrusion Machine

Aperture:90 300kg/h 1pc;

Heating System: electricity heating; Drive Motor: Siemens; Original:CHINA;



HH non woven ssmms smms sms meltblown spunbond fabric production line 7



Spinneret

The role of spinneret is to transform viscous flow of polymer melt or solution into small section with special section, and solidify through solidified medium, such as air or solidification bath. It is used for the uniform exit of the tow.



HH non woven ssmms smms sms meltblown spunbond fabric production line 8



Vacuum calcinator



The latest chemical fiber component, filter core cleaning equipment. It is suitable for the ordinary spinneret used for polyester, polyamide and polypropylene fiber."



HH non woven ssmms smms sms meltblown spunbond fabric production line 9



up stretching

The stretching device including up stretching and down stretching unit, the function is drawing spinning, flaments into web forming by air.

HH non woven ssmms smms sms meltblown spunbond fabric production line 10



 lower strenting

Make the tow even more uniform before entering the netting machine



HH non woven ssmms smms sms meltblown spunbond fabric production line 11



Web forming machine , Its function is to use negative pressure to collect fiber and continuously carry forward, so as to obtain continuous fiber network. The device is composed of a direct current transmission device and a frame, a transmission net curtain and a supporting air suction device. It belongs to the tow mobile device.



HH non woven ssmms smms sms meltblown spunbond fabric production line 12



Automatic Winding Machine

Effective width:1600/2400/3200 mm Rolling Speed:200-400M/Minute Rolling Diameter:2000 mm Original: CHINA

Automatic Slitting Machine

Speed:600-800 M/Minute; Min. Slitting width:80mm; Max. Rolling size:1500mm diameter; Auto tensile control:online; Auto meter counting:online; Original:CHINA;



High precisely CNC center hold machining parts beyond customer request



HH non woven ssmms smms sms meltblown spunbond fabric production line 13



HH non woven ssmms smms sms meltblown spunbond fabric production line 14



Exhibition with customer



HH non woven ssmms smms sms meltblown spunbond fabric production line 15



HH non woven ssmms smms sms meltblown spunbond fabric production line 16



Shipping and packaging



Main machine parts will be packed with wooden cases.Electrical parts will be packed with plastic and then packed into wooden cases.For the steel structure they will be packed in bulk into containers



HH non woven ssmms smms sms meltblown spunbond fabric production line 17





HH non woven ssmms smms sms meltblown spunbond fabric production line 18



How to start the Nonwoven fabric manufacturing business ?



All potential buyers should check below factors if you want to produce nonwoven fabrics .

  • Enough project investment : This nonwoven fabric machine cost $200000 to $5000000 Ave.
  • Workshop space for nonwoven fabric machine 200 -500 ㎡,space length 30 meter , width 10 -20 meter , height 11 meter
  • Nonwoven fabric machine operation team 4 - 6 workers
  • Polypropylene raw material and additives 5 tons each day .
  • Stable electricity supply system 380 V.

FAQ

Q1: What's your warranty policy?
A1: The Seller will guarantee the machine for 18 months since the date of shipment (that is leaving from Seller's factory) or the seller will guarantee the machine for 12 months since the date of starting installation and adjustment, whichever comes first.

Q2: What's your minimum order quantity?
A2: Min order quantity: 1 set or by negotiate with each other.

Q3: What package do you use for the product?
A3: Be Coated with anti-corrosion oil, and covered with plastic film, then packed in wooden box.

Q4: Do you have technical instruction if I buy your product?
A4: Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still cannot be solved, welcome to contact us for help.

Q5: What is your overseas service?
A5: We will provide high quality overseas service, our technical staff will be able to provide you with technical support, for you personally to overseas assembly and test equipment.

Q6: Will you conduct training for our staff here?
A6: Yes, we will provide technology support to factory technology, training for the relative person.

Q7: What are your terms of payment?
A7: We accept T/T.

Q8: How does your factory do regarding quality control?
A8: Quality is priority. We always attach great importance to quality controlling from the beginning. And we have CE certificate.

Q9: How does your factory control the quality?
A9: We have the professional QC group inspect the details in each process. After finishing the goods, our QC will inspect piece by piece.

Q10: I am very satisfied after I read your FAQ, how can I start to purchase my order?
A10: Please click the "send" at the bottom of this page or contact our sales on Trade Mange online!
