China PP Spunbond Nonwoven Production Line manufacturer

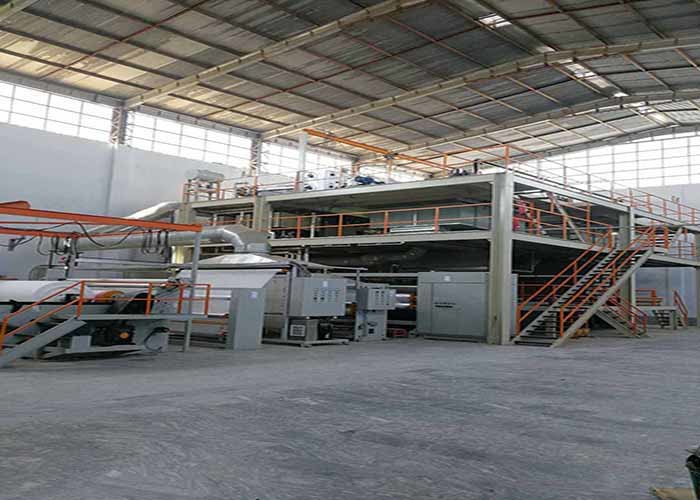

Medical SSMMS PP Meltblown Nonwoven Fabric Making Machine 2400mm

Product Details:
Place of Origin: Chuzhou China
Brand Name: Chuzhou HH non-woven
Certification: CE
Model Number: ssmms
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: For detailed talk
Packaging Details: wood box packaged , machine wrapping with PE film keep cargo safe
Delivery Time: For detailed talk
Supply Ability: For detailed talk

Detail Information

Product Name: Meltblown Fabric Production Line SSMMS Core Components: PLC Engine Bearing Motor
Production Capacity: 40 T Daily Output Model: HHM Ssmms
Key Selling Pointes: Long Service Life Customized: Available
Certifacate: CE Warranty: 365 Days
High Light:

2400mm pp meltblown nonwoven machine

,

SSMMS nonwoven fabric making machine

,

SSMMS meltblown nonwoven fabric making machine

Product Description

Medical non-woven Nonwoven Machine Roll SSMMS Composite Fabric Nonwoven Production Machine Meltblown Fabric Production



application
1. Medical supplies: disposable clothing, medical curtains, shoe covers, etc.
2. Hygiene: Baby and adult diapers, feminine hygiene products, cleaning wipes, etc.
3. Packaging: shopping bags, rice bags, tea bags, cloth bags, etc.
4. Furniture: pocket spring, mattress, cushion, bedspread, seat, etc. Filtration: gas, air, liquid, etc.
6. Technology: geotextile, structural engineering, agriculture, automobile, etc.



HHM-SSMMS Five-Beam spunmelt nonwoven fabric making machine/line

Effective

Width(mm)

Raw Materials

Max.Speed

(Tons/year)

GSM Range

(g/sq.m)

Daily Capacity

(Tons/Day)

Annual Capacity

(Tons/year)

2400



Polypropylene(PP)

600 9-80 23 8400
3200       31 11400
4800       40 14600
The whole line can CUSOMIZED as your needs .



Medical SSMMS PP Meltblown Nonwoven Fabric Making Machine 2400mm 0



Parts of spunbonded nonwoven fabric production line:



Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter

Spunbonded process and technical flow chart:

Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product



Parts of Melt blown nonwoven fabric production line:



Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter



Melt blown process and technical flow chart:



Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product



Medical SSMMS PP Meltblown Nonwoven Fabric Making Machine 2400mm 1

Key component



Medical SSMMS PP Meltblown Nonwoven Fabric Making Machine 2400mm 2

Maximum temperature

300 ℃

Max. Output

200 kg / h

Heating zone

8 tod

Perforated length

3,350 mm

HPI

40

Number of holes

5,276

1 Set L/D

10

Capillary diameter

0.3mm

Capillary length

3,600mm

Medical SSMMS PP Meltblown Nonwoven Fabric Making Machine 2400mm 3

Brand:HHM

Aperture (1pc)

90 300 kg / h

The screw L/D of the main extruder

30:1

The screw L/D of the ancillary extruder

15:1

Medical SSMMS PP Meltblown Nonwoven Fabric Making Machine 2400mm 4

Name:Filter
Brand:HHM
Original: China
Type: Hydraulic or Candle filter

Filter precision: 45μm~60μm

Fitration area: 2.5 m2for 1.6m,3.5 m2 for 3.2m

Heat source : heat-transfer oil , circular heating

Medical SSMMS PP Meltblown Nonwoven Fabric Making Machine 2400mm 5

Name: Spinning Box

Orifice number:11019 for 1.6m , 17651 for 3.2m

Orifice diameter:Φ0.45mm

L/D=4:1

Max temperature:300℃

Fuction : for spining the PP flament.

Medical SSMMS PP Meltblown Nonwoven Fabric Making Machine 2400mm 6



Draft divice , including up draft and down draft .spinning allows the thread to reach the right thickness through preciss drafting devices.





Advanced CNC center



Medical SSMMS PP Meltblown Nonwoven Fabric Making Machine 2400mm 7

Medical SSMMS PP Meltblown Nonwoven Fabric Making Machine 2400mm 8





Package and shipment



Medical SSMMS PP Meltblown Nonwoven Fabric Making Machine 2400mm 9

Medical SSMMS PP Meltblown Nonwoven Fabric Making Machine 2400mm 10Medical SSMMS PP Meltblown Nonwoven Fabric Making Machine 2400mm 11




FAQ

A .Do you offer installing service?

Sure. We will despatch our technical workers to oversea sites to instruct and help install the machines, meantime to train the workers of customer until they can produce fabric by themselves.
B .What is your warranty?

We offer 1-2 years warranty upon the different parts.

 C .How long is your delivery time?

Generally the production time needs 3-6 months upon condition. We will confirm you the exact time when you place order.

D  .Are you factory or trading company? and where is your factory located, how can I visit it?

We are factory with export rights. We manufacture machines and export to customers by ourself. Our factory is located in Chuzhou City, Anhui Province, which is famous for making non-woven fabric machinery. You can take a plane to Nanjing / Shanghai Airport, or take a high-speed train to Chuzhou Station, we will pick you up.

E Why would i choose your product?

1.Quality Control in whole process, provide individual high cost-effective nonwoven lines, helping customer cost saving. 2.Focus on non woven equipment research and development in 14 years. Install and running more than 200 lines all over the world 3.Over 20 person team for machine after sales service.Ensure the customers can get quickly and professional installation and debugged in time.
