China PP Spunbond Nonwoven Production Line manufacturer

80gsm Customized Meltblown Nonwoven Fabric Making Machine For Medical Gowns

Product Details:
Place of Origin: Chuzhou China
Brand Name: Chuzhou HH non-woven
Certification: CE
Model Number: SMS SMMS SSMMS S SS SSS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wood box packaged , machine wrapping with PE film keep cargo safe
Delivery Time: For detailed talk
Payment Terms: L/C, T/T
Supply Ability: For detailed talk

Detail Information

Model: Meltblown Fabric Production Line SMS SMMS Customization: Available
Gsm: 9 - 80 G Certificate: CE ISO 900
Daily Out Put: 13 - 45 Ton Brand: H H M
Folding Width: 20 - 30 Mm Origin: China
High Light:

80gsm meltblown nonwoven fabric machine

,

Customized meltblown nonwoven machine

,

80gsm melt blown non woven fabric making machine

Product Description

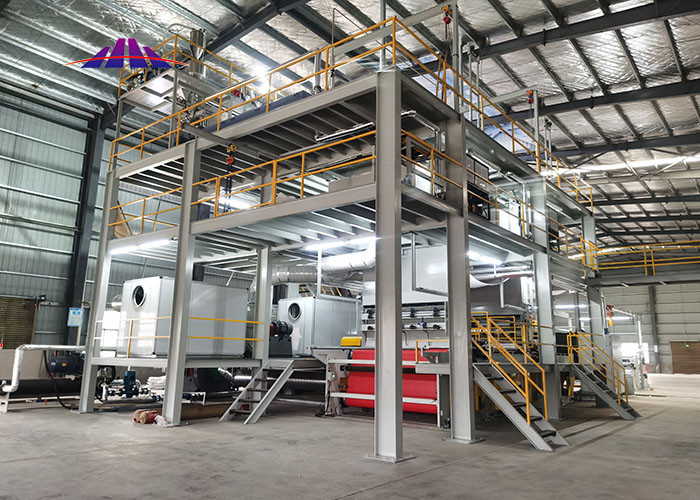

SMMS Nonwoven Meltblown Fabric Production Line for Medical Products Operating Gowns



Features:



1. The requirements for workshops and equipment are very simple, which reduces the investment in fixed assets, effectively uses the space of the platform, and expands the utilization rate of workshops and steel platforms.

2. More professional processing equipment increases the processing accuracy and processing capacity of the machine, so as to reduce the manufacturing cost and better bear the quality of products.



80gsm Customized Meltblown Nonwoven Fabric Making Machine For Medical Gowns 0



Machine Model Reifenhauser Reicofil 3/4,Spunbond lines, spun-melt lins S, SS,SSS, SXS,SXXS,SMMS ,SMS ,SSMMS
Machine Size 18m-60m(L)*10m-31m(W)*10m-12m(H)
Raw Material required

PP(polypropylene),additives

MFI/MFR:25-40g/10min(spunbonding process)

MFI/MFR:800-2000g/10min (Melt-blowning process)

Effective width 1600mm,2400mm,3200mm,4000mm,4800mm customizable width by requirements
Max Speed 150m/mn-550m/min
Transformer&Power consumption

Transformer require:200KVA-3000KVA

Power consumption :500KWH/Ton-1400KWH/Ton

Output per year 1500 Tons - 10000 Tons
Products GSM 8gsm-250 gsm
Applications of products

Industrial:Shopping bags, furniture ,agriculture ,packageing,etc

Medical:Surgical gown /cap /sheet /mask ,etc

Hygiene: Diapers ,sanitary ,napking , etc.



1 SSMMS SMMS SMS DATA SHEET



ssmms data





Working width Fabric Power input Consumption Annual output/Year
1600mm 9-80G/㎡ ≈1600KVA 1700º-1900º/Ton 6200T
2400mm 9-80G/㎡ ≈2000KVA 1700º-1900º/Ton 8000T
3200mm 9-80G/㎡ ≈3000KVA 1700º-1900º/Ton 11000T
4200mm 9-80G/㎡ ≈3500KVA 1700º-1900º/Ton 14000T
4800mm 9-80G/㎡ ≈4000KVA 1700º-1900º/Ton 16000T



smms data

Effective width(mm) 1600 2400 3200 4000 4800
Output(ton/year) 4000T 6200T 5400T 10500T 12700T
GMS Range(g/㎡) 9-100 9-100 9-100 9-100 9-100
Max.speed(m/min) 450 450 450 450 450


2. Process flow





Parts of spunbonded nonwoven fabric production line:



Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter



Spunbonded process and technical flow chart:

Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product



Parts of Melt blown nonwoven fabric production line:

Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter



Melt blown process and technical flow chart:

Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product


Additive (recycle edge)

Material → melting and extruding → filtering → metering → spinning → quenching → air-flow drawing → web forming → calendaring → winding and slitting







80gsm Customized Meltblown Nonwoven Fabric Making Machine For Medical Gowns 1

4 Key component



80gsm Customized Meltblown Nonwoven Fabric Making Machine For Medical Gowns 2

Name:Main Extruder Brand:HHM Original:China Diameter:Φ135mm for 1.6m,Φ170mm for 3.2m,Max speed: 75r/min for 1.6m , 85r/min for 3.2m Motor:90kw for 1.6m , 132kw for 3.2m

80gsm Customized Meltblown Nonwoven Fabric Making Machine For Medical Gowns 3

Name:FilterBrand:HHMOriginal: ChinaType: Hydraulic or Candle filterFilter precision: 45μm~60μmFitration area: 2.5 m2for 1.6m,3.5 m2 for 3.2m

Heat source : heat-transfer oil , circular heating

80gsm Customized Meltblown Nonwoven Fabric Making Machine For Medical Gowns 4

Name: Spinning BoxOrificenumber:11019for1.6m17651for3.2mOrificediameter:Φ0.45mmL/D=4:1Max temperature:300℃

Fuction : for spining the PP flament.



Name Spinning box
Orifice number 1109 for 1.6 m , 17651 for 3.2 m
Orifice diameter ¢0.45mm L/D 4 : 1
Max temperature 300℃
Fuction For spinning the PP flow



80gsm Customized Meltblown Nonwoven Fabric Making Machine For Medical Gowns 5

Calandr machine where the yarn is spun to form the rudiments of nonwoven fabric .the calander is very large .

80gsm Customized Meltblown Nonwoven Fabric Making Machine For Medical Gowns 6

SLitter  cutter & Winder machine is used to have made the non woven finished products into the packaging equipment





5 High - accuracy CNC center keep S SS SMS SSMMS non woven making line beyond customer requriement .



80gsm Customized Meltblown Nonwoven Fabric Making Machine For Medical Gowns 7

80gsm Customized Meltblown Nonwoven Fabric Making Machine For Medical Gowns 8

80gsm Customized Meltblown Nonwoven Fabric Making Machine For Medical Gowns 9



6 Shipping and packing



Machine Nude packing , wooden case is optional , case packing , ecletric parts carton box or wooden case packaged , other machines nue packaging wrapping with PE film keep cargo safe.





80gsm Customized Meltblown Nonwoven Fabric Making Machine For Medical Gowns 10



80gsm Customized Meltblown Nonwoven Fabric Making Machine For Medical Gowns 11

80gsm Customized Meltblown Nonwoven Fabric Making Machine For Medical Gowns 12





7 Why choose us?


1. High standard nonwoven machine specification.
2. Free inspection invitation before delivery.
3. your order safe and your money is safe.
4. Free door to door engineering service in 24 month.
5. CE Certification and ISO:9001 management system.
