China PP Spunbond Nonwoven Production Line manufacturer

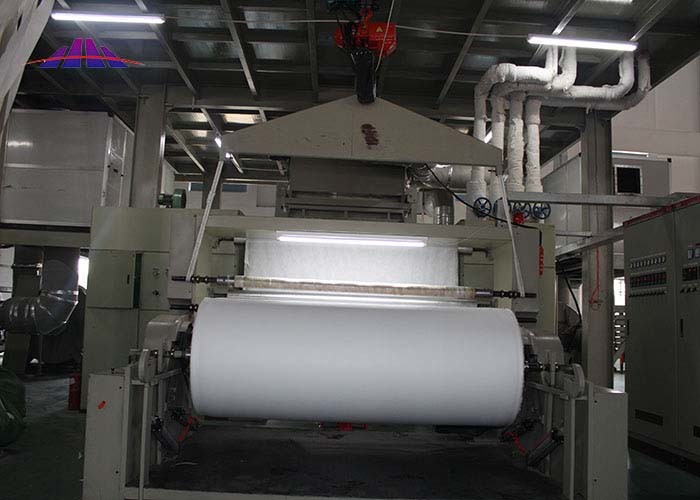

Medical Hygiene Reliable PP Spunbond Nonwoven Fabric Machine SMS SMMS SSMMS

Product Details:
Place of Origin: Chuzhou China
Brand Name: Chuzhou HH non-woven
Certification: CE
Model Number: smms non woven fabric production line
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wooden case
Delivery Time: 90 - 150 days
Payment Terms: L/C, T/T
Supply Ability: For detailed talk

Detail Information

Name: Smms Non Woven Fabric Production Line Type Of Screw: Double Twin
Final Product: Sms Smms Ssmms Nonwoven Fabric Roll Usage: Medical ,hygiene , Filtration , Protect Cloth
Advantage: Durable , Less Labor Force Required ,save Energy Day Capacity: 30000 Kg
Install Power: 800 - 1200 KW CE: Yes
High Light:

Medical pp spunbond nonwoven fabric machine

,

Hygiene pp spunbond nonwoven fabric machine

,

SMS non woven bed sheet making machine

Product Description



SMS SMMS SSMMS Medical hygiene reliable good performance non woven fabric production line



Main features:
1. The whole production line has reasonable structure and convenient operation
2. The whole production line is highly automated
3. Control element is a well-known manufacturing, high-performance and reliable technology
4. The whole production line is controlled by PLC and operated by touch screen.
5. The configuration of host and auxiliary equipment can be specially designed and configured according to customer requirements.
1. Application
This machine is suitable for producing PP spunbonded non-woven fabric. PP chips are imported raw materials, which are packaged, warehoused and shipped after extrusion, spinning, quenching, closed air stretching, roll forming, calendering, winding and cutting as required.
Medical and health category: surgical clothing, operating table cloth, patient clothing, protective clothing, respirator, packaging bag, etc.
Cleaning supplies: baby diapers, adult incontinence pads, sanitary napkins, filter materials, etc.
Labor safety articles: protective clothing, automobile and motor protective cover, dust cover, raincoat, coating work clothes, etc.
Tourist supplies: beach umbrella, beach clothes, recycling bags, etc



smms non woven fabric character



G/m2 17 30 60
MD N/5 cm >23 >40 >81
CD N/5 cm >11 >22 >45
MD Elongation% >30 >30 >30
CD Elongation% >30 >30 >30
Hydro-static pressure >110 >200 >300



Medical Hygiene Reliable PP Spunbond Nonwoven Fabric Machine SMS SMMS SSMMS 0



1600 SMMS Model

Effective Width 1600mm
Weight Range 9 - 100 g / ㎡
Out put daily 7 - 12 ton
Machine speed ≦ 50 m / min
Transformer ≈ 1500 KVA
Power Consumption 1700º - 1900 º / Ton
Machine Size 55 *20 * 12 M



Product application

Material PP chip Weight range 10-150 g/m2
Model

HHM-1.6SMMS/HHM-2.4SMMS

HHM-3.2SMMS/HHM-4.0SMMS/HHM-4.8SMMS

Fabric usage

Medical applicant,shopping bag , packing

Operation suit,face mask, baby diaper.etc





Medical Hygiene Reliable PP Spunbond Nonwoven Fabric Machine SMS SMMS SSMMS 1

Technical Parameters

Model

HHM-1.6

SMMS

HHM-2.4SMMS HHM-3.2SMMS HHM-4.0SMMS HHM-4.8SMMS
Effective width 1.6M 2.4M 3.2M 4.0M 4.8M
Weight range 10-100g/m2 10-100g/m2 10-100g/m2 10-100g/m2 10-100g/m2
Out put per day 7-12Ton 10-18Ton 14-24Ton 17-30Ton 21-36Ton
Machine speed ≦400/min ≦400/min ≦400/min ≦400/min ≦400/min
Transformer capacity ≦1500KVA ≦1600KVA ≦2200KVA ≦25000KVA ≦2630KVA
Power consumption 1400º-2000º/Ton 1400º-2000º/Ton 1400º-2000º/Ton 1400º-2000º/Ton 1400º-2000º/Ton
Machine Size(L*W*H) 45m*18m*12m 45m-22m*12m 45m*25m*12m 45m*28m*12m 45m*31m*12m



Parts of spunbonded nonwoven fabric production line:



Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter



Spunbonded process and technical flow chart:



Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product



Parts of Melt blown nonwoven fabric production line:



Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter



Melt blown process and technical flow chart:



Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product

Medical Hygiene Reliable PP Spunbond Nonwoven Fabric Machine SMS SMMS SSMMS 2

Medical Hygiene Reliable PP Spunbond Nonwoven Fabric Machine SMS SMMS SSMMS 3

Main parts of non woven system



Medical Hygiene Reliable PP Spunbond Nonwoven Fabric Machine SMS SMMS SSMMS 4



The role of spinneret is to transform viscous flow of polymer melt or solution into small section with special section, and solidify through solidified medium, such as air or solidification bath. It is used for the uniform exit of the tow.





Medical Hygiene Reliable PP Spunbond Nonwoven Fabric Machine SMS SMMS SSMMS 5

Two cooling blower for each other pressure gauges, pressure switches, air channel transfer baffles, air oil and water filter separators, cooling fan control cabinet and so on. Two cooling fans share a control cabinet to automatically control the start and stop of the two typhoon machines. The cooling wind can be taken directly from the air or from the outlet of the fan.



Medical Hygiene Reliable PP Spunbond Nonwoven Fabric Machine SMS SMMS SSMMS 6

Control the pressure oil temperature of oil pressure system, stabilize oil temperature and oil pressure, prolong oil use time, improve the efficiency of mechanical lubrication and reduce wear. Freeze dry air to guarantee the quality of the product.



Medical Hygiene Reliable PP Spunbond Nonwoven Fabric Machine SMS SMMS SSMMS 7

Meltblown die head assembly

maximum temperature: 300.;

Max.output:200kg/h;

Heating zone:8tod;

Perforated length:3,350mm;

HPI:40;

1 Sets L/D=10; Number of holes:5.276;

Capillary diameter:0.3mm;

Capillary length:3,600mm;



Medical Hygiene Reliable PP Spunbond Nonwoven Fabric Machine SMS SMMS SSMMS 8

Extrusion Machine

Aperture:90 300kg/h 1pc;

Heating System: electricity heating; Drive Motor: Siemens; Original:CHINA;



Medical Hygiene Reliable PP Spunbond Nonwoven Fabric Machine SMS SMMS SSMMS 9



Spinning Box uses hot oil for heating and insulation in cycle with reasonable structure, attractive appearance and low power consumption. It also charaterizes that the thickness of the fiber is uniform and the feeling of monofilament is fine without brokrn and rough warp, etc.



Medical Hygiene Reliable PP Spunbond Nonwoven Fabric Machine SMS SMMS SSMMS 10

.Auto Winder

Machin

The main function is to wrap the hot rolled fabric into a certain volume."



Slitter&Cutter

The main function for a large package of cloth cutting according to customer specifications, to meet the customer's length, width, volume weight requirements.



Precisely CNC center hold machining part beyond customer request



Medical Hygiene Reliable PP Spunbond Nonwoven Fabric Machine SMS SMMS SSMMS 11





Medical Hygiene Reliable PP Spunbond Nonwoven Fabric Machine SMS SMMS SSMMS 12



Exhibition Show with customer

Medical Hygiene Reliable PP Spunbond Nonwoven Fabric Machine SMS SMMS SSMMS 13





Medical Hygiene Reliable PP Spunbond Nonwoven Fabric Machine SMS SMMS SSMMS 14





Shipment and packing



 Large parts wrapped in several turns of films, small parts boxed in a wooden crate, each
packaged is numbered and packed to easy loading/unloading and installation



Medical Hygiene Reliable PP Spunbond Nonwoven Fabric Machine SMS SMMS SSMMS 15





Medical Hygiene Reliable PP Spunbond Nonwoven Fabric Machine SMS SMMS SSMMS 16



FAQ



Q1: What made you choose HH?
A: HH has a team of professional engineers directly to your factory to install our spun-bonded
non-woven fabric making machine and melt-blown machine which high-speed, stable, and reliable
to help you quickly establish your own production line.

Q2: Are you a manufacturer?

A: Yes, we are a professional manufacturer of nonwoven machinery. We also had established
our own trading company to expand our foreign market business and provided our customer with
better service.

Q3: Do you accept OEM?

A: Of course we are.

Q4: How long is the warranty period?

A: We provide 1 year warranty period.

Q5: What's your packing?

A: Large parts wrapped in several turns of films, small parts boxed in a wooden crate, each
packaged is numbered and packed to easy loading/unloading and installation.

Q6: Can customers send workers to your place to study the operation of the machine?

A: Of course, you are warmly welcome.
