Polypropylene PP Meltblown Nonwoven Fabric Machine For Hospital Gown

Product Details:
Place of Origin: Chuzhou China
Brand Name: Chuzhou HH non-woven
Certification: CE
Model Number: SMS SMMS SSMMS S SS SSS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wooden box packaged , machine wrapping with PE film keep cargo safe
Delivery Time: 90 - 150 days
Payment Terms: L/C, T/T
Supply Ability: For detailed talk

Detail Information

Goods: PP Nonwoven Production Line Supply Type: Make To -order
Material: Polypropylene 100% Service: Dedicated Engineer On Line Support
Finished Product: Non Woven Roll Inventer: ABB
Motor: Siemens AC Package: Wooden Box In Container
High Light:

pp meltblown nonwoven fabric machine

,

polypropylene pp nonwoven fabric machine

,

non woven fabric making machine

Product Description

Eco Hospital Gown SMS SMMS Polypropylene Spunbond Surgical Non woven Fabric Production Line



1. Energy saving: all main motors of the whole machine adopt variable frequency motor (AC), instead of three-phase asynchronous motor; Variable frequency motor: (1) convenient speed regulation and energy saving. (2) AC motor has the advantages of simple structure, small volume, small inertia, low cost, convenient maintenance and durability. (3) It can expand the output and realize high-speed and high-voltage operation. (4) Soft start and fast braking can be realized. (5) No spark, explosion-proof, strong environmental adaptability. 2. High output: Taking "PP" material as an example, PP material has been tested at the customer's site, and the actual output of our machine is 10% - 20% higher than that of the same model products on the market; 3. Simple installation: the equipment is easy to install. It only needs to connect the inlet and outlet water, which can save 2 days of installation time.
Product application
The equipment uses polypropylene (PP) as raw material to produce non-woven fabrics, and uses negative pressure air suction network technology to produce PP spunbonded non-woven fabrics. Irregular products have the characteristics of coating, good strength, good air permeability and good hand feeling. They are widely used in medical treatment, protective articles, home and hotel accessories purchase products and beauty care disposable products, covering agriculture, clothing packaging and construction.
Spunbonded production line has the characteristics of stable and reliable quality, high speed, large capacity and low energy consumption. The products produced by the production line are widely used in medical treatment, nursing, health, agriculture, construction, health and other fields. The raw material of spunbonded nonwovens is PP sheet, which is mixed with masterbatch of different colors to obtain different colors. The work flow of the whole production line is as follows: feed hopper, main extruder, metering pump, filter, spinning box, spinneret, drawing and distribution part - net forming machine, calender and mode - automatic winding and cutting machine, automobile automatic grade, automatic polypropylene spunbonded nonwovens, mechanical material PP slicer, product name, type, age, SS, Switzerland, SMS width 1600-3200mm, speed 70-550m / min, product weight 10-150g / m2.

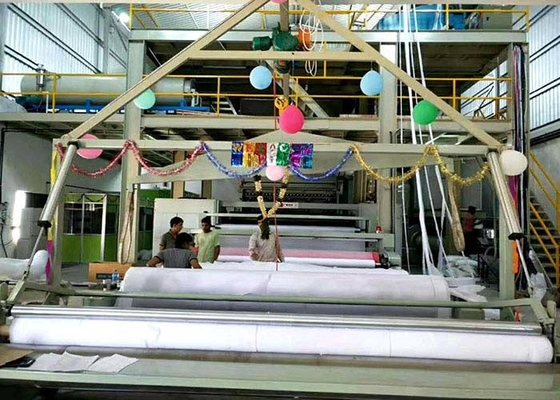

Polypropylene PP Meltblown Nonwoven Fabric Machine For Hospital Gown 0



Model HH-1600 SMS HH - 2400 SMS HH - 3200 SMS
No. of Die Head SS : 2 + M : 1
Filament Denier 1.5 - 2.0 d / 2 - 55 um
GSM Range (g / sq.m) 9 - 100 g /sq.m
Speed ( m / min ) 550 m / min
Effective width (mm) 1600 mm 2400 mm 3200 mm
Daily output (kg /day) 10000 kg 15000 kg 20000 kg



Model Effective width Daily capacity Speed Spinning system GSM Range Machine dimension
Length*Width*Height
HH-1600M 1600MM 2000Kg 70M/Min Meltblown 15-300 18*10*10 meter
HH-2400M 2400MM 3000Kg       18*11*10 meter
HH-3200M 3200MM 4500Kg       18*13*10 meter
HH-1600S 1600MM 5000Kg 150M/Min

Spunbond

(S)

9-250 18*8*12 meter
HH-2400S 2400MM 7000Kg       18*10*12 meter
HH-3200S 3200MM 10000Kg       18*15*12 meter
HH-1600SS 1600MM 9000Kg 350M/Min

Spunbond

(SS)

8-150 45*15*12 meter
HH-2400SS 2400MM 13000Kg       45*18*12 meter
HH-3200SS 3200MM 16000Kg       45*20*12 meter
HH-1600SSS 1600MM 12000Kg 550M/Min

Spunbond

(SSS)

9-120 50*15*12 meter
HH-2400SSS 2400MM 16000Kg       50*18*12 meter
HH-3200SSS 3200MM 24000Kg       50*20*12 meter



Advantages of HHM non-woven fabric manufacturing machine: 1) high precision polypropylene and additive raw material mixer; 2) High capacity extruder, good performance of screws and barrel; 3) High-performance melt filtration system; 4) High speed, high precision melt pump; 5) The latest melt flow design and spinning system; 6) Well-known PLC control system and motor; 7) Intelligent operation procedures and monitoring system



1600 SMMS Model

Effective Width 1600mm
Weight Range 9 - 100 g / ㎡
Out put daily 7 - 12 ton
Machine speed ≦ 50 m / min
Transformer ≈ 1500 KVA
Power Consumption 1700º - 1900 º / Ton
Machine Size 55 *20 * 12 M



machine feature

Product Name Spunbond non-woven production line Technology Rhine ,Germany
Type M,S,SS,SSS,SMS,SSMS,SSMMS Spinneret Size 0.45mm,10500 holes
Lead Time 90 - 108 days Trade type Manufacturer
Payment 15% deposit 80% before shipping 5 % after line running Perfomance 3 - 25 tons / day
Location Chuzhou city Anhui province , China Warranty 1 year
Near sea port Nanjing / Shanghai SIZE 1600 - 4800 mm



Technical parameter sms

Model No Working Width Fabric GSM Power Input Consumption Annual Output Embossing pattern
HHM-1600SMS 1600mm 9 - 100 1200KVA 800KW 3500T Diamond, Oval
HHM-2400SMS 2400mm 9 - 100 1600KVA 1200KW 5000T Diamond, Oval
HHM-3200SMS 3200mm 9 - 100 2200KVA 1600KW 6500T Diamond, Oval



SS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-120G/㎡ ≈400KVA 650º-800º/Ton 3700T
2400mm 9-120G/㎡ ≈500KVA 650º-800º/Ton 5100T
3200mm 9-120G/㎡ ≈800KVA 650º-800º/Ton 6600T
4000mm 9-120G/㎡ ≈1000KVA 650º-800º/Ton 8800T
4800mm 9-120G/㎡ ≈1200KVA 650º-800º/Ton 10000T



SSS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈630KVA 650º-800º/Ton 5800T
2400mm 9-100G/㎡ ≈1000KVA 650º-800º/Ton 7300T
3200mm 9-100G/㎡ ≈1250KVA 650º-800º/Ton 10000T
4000mm 9-100G/㎡ ≈1500KVA 650º-800º/Ton 12400T
4800mm 9-100G/㎡ ≈1800KVA 650º-800º/Ton 14000T



M Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 15-300G/㎡ ≈600KVA 3000º-3500º/Ton 800T
2400mm 15-300G/㎡ ≈800KVA 3000º-3500º/Ton 1100T
3200mm 15-300G/㎡ ≈1000KVA 3000º-3500º/Ton 1500T

Polypropylene PP Meltblown Nonwoven Fabric Machine For Hospital Gown 1

Parts of spunbonded nonwoven fabric production line:



Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter



Spunbonded process and technical flow chart:



Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product



Parts of Melt blown nonwoven fabric production line:



Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter



Melt blown process and technical flow chart:



Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product



Polypropylene PP Meltblown Nonwoven Fabric Machine For Hospital Gown 2



Main parts of nonwoven system .

Polypropylene PP Meltblown Nonwoven Fabric Machine For Hospital Gown 3

Meltblown die head assembly

maximum temperature: 300.;

Max.output:200kg/h;

Heating zone:8tod;

Perforated length:3,350mm;

HPI:40;

1 Sets L/D=10; Number of holes:5.276;

Capillary diameter:0.3mm;



Polypropylene PP Meltblown Nonwoven Fabric Machine For Hospital Gown 4



Spinning Beam



One of the main components of the melt spinning machine is a polymer melt through the filter into the spinning box and spinning through the melt distribution and heat preservation. A rectangular metal box with a box for outsourced insulation. It contains the melt distribution pipe, the pump seat and the shotcrete head component. A device for fixing a spinneret.





Polypropylene PP Meltblown Nonwoven Fabric Machine For Hospital Gown 5



Extrusion Machine

Aperture:90 300kg/h 1pc;

Heating System: electricity heating; Drive Motor: Siemens; Original:CHINA





Polypropylene PP Meltblown Nonwoven Fabric Machine For Hospital Gown 6



Name: Spunbond Spinning System

With a spinneret of 0.45mm hole diameter , the viscous polymer solution is transformed into a trickle with a specific cross-section through the micro pores, and solidified by the coagulation medium to form filaments



Polypropylene PP Meltblown Nonwoven Fabric Machine For Hospital Gown 7



Stretching Unit

The stretching device including up stretching and down stretching unit, the function is drawing spinning, flaments into web forming by air.





Polypropylene PP Meltblown Nonwoven Fabric Machine For Hospital Gown 8



Automatic Winding Machine

Effective width:1600/2400/3200 mm Rolling Speed:200-400M/Minute Rolling Diameter:2000 mm Original: CHINA



Polypropylene PP Meltblown Nonwoven Fabric Machine For Hospital Gown 9





Exhibition show with customer



Polypropylene PP Meltblown Nonwoven Fabric Machine For Hospital Gown 10



Polypropylene PP Meltblown Nonwoven Fabric Machine For Hospital Gown 11





Packaging and shipping



Electrical and small parts will numbered put in carton box or wooden box , large machine will wrapping with PE film fixed in container , keep cargo safe .

Polypropylene PP Meltblown Nonwoven Fabric Machine For Hospital Gown 12



Polypropylene PP Meltblown Nonwoven Fabric Machine For Hospital Gown 13



Why choose us?


1. High standard nonwoven machine specification.
2. Free inspection invitation before delivery.
3. your order safe and your money is safe.
4. Free door to door engineering service in 24 month.
5. CE Certification and ISO:9001 management system.





FAQ:


1.How can i know your machine has good quality?
You can visit our company and we will see many machines in China,because we also have many customers from local market.
2.What is the delivery time for nonwoven machines as usual?
We need 3-6 month to make your order.
3.Will you inspect my order before shipping?
We accept SGS inspection service and buyer own inspect it,we will pay all expense for buyer visiting.
4.How is your after-sale service and warranty?
we provide 12 month warranty and free door to door engineering service in the period.
Free spare parts replacement and online technical support.
5.How long time for machine installation?
It takes 60-90 days for machine installation as usual.
