200gsm SS Customized Non Woven Fabric Making Machine High Efficiency

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : components wood box packaged , machine wrapping with PE film keep cargo safe Delivery Time : For detailed talk
Payment Terms : L/C, T/T Supply Ability : For detailed talk
Place of Origin: Chuzhou China Brand Name: Chuzhou HH non-woven
Certification: CE Model Number: HHM - SS SSS

Detail Information

Machine Item: HHM SS Non Woven Fabric Making Machine Width: 1600 2400 3200 4000 4800 Mm
Gsm: 10 - 200 G Weight: 70 - 200 Ton
Annual: 5000 - 10000 Ton Power Install: 600 (1.6 M) 800 (3.2 M) /KW
Service: Engineer Over Sea Or Video On Line Cooling Water: 5 M2 / H 20℃ 2.5m2/h 10℃
High Light:

200gsm Non Woven Fabric Making Machine

,

Customized Non Woven Fabric Making Machine

,

200gsm pp spunbond nonwoven fabric machine

Product Description

HHM high efficiency customized easy operation ss non woven fabric making machine





How to develop non-woven manufacturing business?
If you want to buy nonwovens, all potential buyers should check the following factors:
1. Sufficient project investment. This nonwoven machine is worth $200000 to $5 million.
2. The workshop space is 200 - 500m2 non-woven machine, with a length of 30m, a width of  20m and a height of 11m.
3. Non woven machine operation team 4 - 6 persons
4. Polypropylene raw materials and additives 5 tons per day
5. Stable 380 or corresponding power supply system

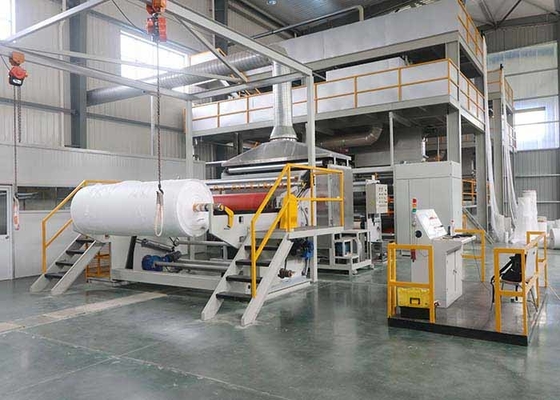

200gsm SS Customized Non Woven Fabric Making Machine High Efficiency 0




Model Effective Width Weight Range Output per day Machine speed Tranformer Power consumption Machine Size
HHM-1.6SS 1.6M 9-120G/M2 8-10.5Ton ≦350m/min ≈400KVA 650º-800º/Ton 45M*15M*12M
HHM-2.4SS 2.4M 9-120G/M2 10-15Ton ≦350m/min ≈500KVA 650º-800º/Ton 45M*18M*12M
HHM-3.2SS 3.2M 9-120G/M2 13-20Ton ≦350m/min ≈800KVA 650º-800º/Ton 45M*20M*12M
HHM-4.0SS 4.0M 9-120G/M2 15-25Ton ≦350m/min ≈1000KVA 650º-800º/Ton 45M*22M*12M
HHM-4.8SS 4.8M 9-120G/M2 20-30Ton ≦350m/min ≈1200KVA 650º-800º/Ton 45M*24M*12M



  • .High automation,A fully automatic fabric assembly line. Ensure machine stability and labor cosst saving .
  • Leading technology ,0.25 mm hold diameter of spinneret asKASEN from Japan
  • International well- know Brand parts,Siemens PLC and Schnelder electrical components with high performance and reliable technologh.
  • European safely standards and meet CE standard.
  • Lower maintenance cost , ultrasonic cleaning machine+dry ice cleaning machine more advanced cleaning system .
  • Optional, wate eletret treatment over standard quality meet higher -level filtration standard.

Important data at a glance

Voltage AC380V,50 Hz
GSM RANGE 10-100GSM
MAX SPEED 500m/min
PRODUCTION CAPACITY 5000ton/year
Material Polypropylene chips (meltblown PP MIF: 1500-1800; Spunbond PP MIF: 28-45)
Product Width 1600mm:10-100gsm
Max. Roll Diameter 1500mm
Power Consumption ≥800kw
Air pressure 0.5-0.8MPa
Cooling water 5m2/h,20℃ or 2.5m2/h,10℃
Equipment Size 35m(L)X 18m(W)X 12m(H)





S is spunbonded nonwovens (spunbonded nonwovens), single s is single-layer spunbonded nonwovens, double S is double-layer composite spunbonded nonwovens, and three s is three-layer composite spunbonded nonwovens.
They can be durable and disposable. Insulated, conductive. Soft and rigid. Fine density, expandability. Anisotropy, anisotropy. Filtration, breathable, impermeable. Elastic, stiff. Light, loose, warm. It is as thin as a cicada's wing and as thick as felt. Waterproof and wet. Ironing, stitching and shaping. Flame retardant and antistatic. Water permeability, water resistance, wear resistance and plush rise. Aging resistance, good elasticity, high moisture absorption and good water resistance.
Application of spunbonded nonwovens spunbonded nonwovens are widely used in construction, agriculture, medicine and health, packaging and covering, disposable commodity clothing, decorative materials, civil engineering and other fields.
advantage
a . Short process flow, high production efficiency,
B. The whole process from feeding to cloth output is automatically controlled. AC frequency conversion technology (more energy-saving) and touch screen control are adopted. The technology has the advantages of reasonable structure, space saving, high working performance, low production consumption, convenient operation and less operation faults.
PLC control, touch screen operation.







Technical Parameters ( Standard Specification) of Our Nonwoven Machine
  Model No. Gram Weight MaxSpeed(m/min) Capacity(T/Days) Equipment Size



HH-S (single beam)

1.6m 9-250 150 4-6 18*8*12m
2.4m 5-7 18*10*12m
3.2m 8-10 18*15*12m



HH-SS (single beam)

1.6m 10-120 350 8-10.5 45*15*12m
2.4m 10-15 45*18*12m
3.2m 13-20 45*20*12m



HH-SSS (single beam)

1.6m 10-100 550 12-17 50*15*12m
2.4m 16-21 50*18*12m
3.2m 24-30 50*20*12m



Machine Model Reifenhauser Reicofil 3/4,Spunbond lines, spun-melt lins S, SS,SSS, SXS,SXXS,SMMS ,SMS ,SSMMS
Machine Size 18m-60m(L)*10m-31m(W)*10m-12m(H)
Raw Material required

PP(polypropylene),additives

MFI/MFR:25-40g/10min(spunbonding process)

MFI/MFR:800-2000g/10min (Melt-blowning process)

Effective width 1600mm,2400mm,3200mm,4000mm,4800mm customizable width by requirements
Max Speed 150m/mn-550m/min
Transformer&Power consumption

Transformer require:200KVA-3000KVA

Power consumption :500KWH/Ton-1400KWH/Ton

Output per year 1500 Tons - 10000 Tons
Products GSM 8gsm-250 gsm
Applications of products

Industrial:Shopping bags, furniture ,agriculture ,packageing,etc

Medical:Surgical gown /cap /sheet /mask ,etc

Hygiene: Diapers ,sanitary ,napking , etc.

Advanced technology nonwoven fabric making machine

S Model (Packaging , Agricultural Cover )

Working width Fabric Consumption Annual output/Year
1600mm 9-250G/㎡ 130KW 1800T
2400mm 9-250G/㎡ 180KW 2200T
3200mm 9-250G/㎡ 200KW 3300T
4000mm 9-250G/㎡ 300KW 4400T
4800mm 9-250G/㎡ 400KW 5100T



SS Model ( Baby Diaper ,Medical Products )

Working width Fabric Consumption Annual output/Year
1600mm 9-120G/㎡ 200KW 3700T
2400mm 9-120G/㎡ 2500KW 5100T
3200mm 9-120G/㎡ 200KW 6600T
4000mm 9-120G/㎡ 300KW 8800T
4800mm 9-120G/㎡ 450KW 10000T





M Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 15-300G/㎡ ≈600KVA 3000º-3500º/Ton 800T
2400mm 15-300G/㎡ ≈800KVA 3000º-3500º/Ton 1100T
3200mm 15-300G/㎡ ≈1000KVA 3000º-3500º/Ton 1500T



SMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈800KVA 1300º-1600º/Ton 3200T
2400mm 9-100G/㎡ ≈1250KVA 1300º-1600º/Ton 5100T
3200mm 9-100G/㎡ ≈1600KVA 1300º-1600º/Ton 7000T
4000mm 9-100G/㎡ ≈2000KVA 1300º-1600º/Ton 8700T
4800mm 9-100G/㎡ ≈2250KVA 1300º-1600º/Ton 10500T



Width 1600 M
Gsm 9 - 120 gsm
Output per day 8 - 10.5 Ton
Machine Speed ≦ 350 m / min
Transformer ≈ 400 KVA
Power Consumption 650º - 800º / Ton
Machine Size 45 * 15 *12 M





200gsm SS Customized Non Woven Fabric Making Machine High Efficiency 1

Description Of Non-woven Machine



B.Parts of spunbonded nonwoven fabric production line:
Recycle extruder---->Main extruder---->Filter---->Metering pump---->
Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
Quenching air chamber---->Stretching device---->Web former---->
Calender---->Winder---->Slitter


C.Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)---->Raw material----> Melting---->
Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
Web forming---->Calendering---->Winding----> Cutting---->Final product


D.Parts of Melt blown nonwoven fabric production line:
Main extruder---->Filter---->Metering pump---->Air heating system---->
Melt blown sprayer(ENKA sprayer)---->Web former---->Winder---->Slitter


E.Melt blown process and technical flow chart:
Raw material----> Melting---->Filtering---->Measuring ---->Air heating---->
Spraying---->Web forming---->Winding----> Cutting---->Final product



200gsm SS Customized Non Woven Fabric Making Machine High Efficiency 2

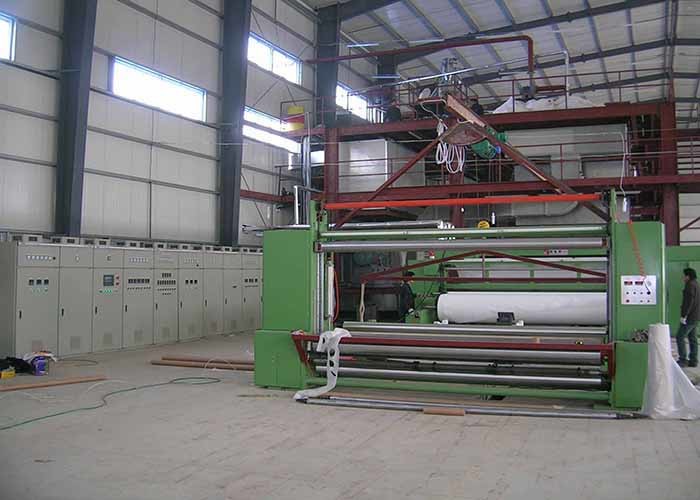

Main parts of spunbond making machine



200gsm SS Customized Non Woven Fabric Making Machine High Efficiency 3



Spinning Beam

Model:1600/2400/3200mm; Heating System:Oil/Electricity Heating; Distribution Design: big hanger type; Original:CHINA;



200gsm SS Customized Non Woven Fabric Making Machine High Efficiency 4



Extrusion Machine

Aperture:90 300kg/h 1pc;

Heating System: electricity heating; Drive Motor: Siemens; Original:CHINA;



200gsm SS Customized Non Woven Fabric Making Machine High Efficiency 5

Meltblown die head assembly

maximum temperature: 300.;

Max.output:200kg/h;

Heating zone:8tod;

Perforated length:3,350mm;

HPI:40;

1 Sets L/D=10; Number of holes:5.276;

Capillary diameter:0.3mm;

Capillary length:3,600mm;



200gsm SS Customized Non Woven Fabric Making Machine High Efficiency 6



Automatic Winding Machine

Effective width:1600/2400/3200 mm Rolling Speed:200-400M/Minute Rolling Diameter:2000 mm Original: CHINA



200gsm SS Customized Non Woven Fabric Making Machine High Efficiency 7



Production Line Control Cabinet

Voltage: 380 V/3 Phase; Touch Screen:Siemens; PLC: Siemens; Frequency:Siemens; Indicator: RKC,JAPAN; Original:CHINA;



Precisely CNC center hold machining parts beyond customer require.



200gsm SS Customized Non Woven Fabric Making Machine High Efficiency 8



200gsm SS Customized Non Woven Fabric Making Machine High Efficiency 9





Exhibition Show with customer



200gsm SS Customized Non Woven Fabric Making Machine High Efficiency 10



200gsm SS Customized Non Woven Fabric Making Machine High Efficiency 11





Packaging Details


Main machine parts will be packed with wooden cases.Electrical parts will be packed with plastic and then packed into wooden cases.For the steel structure they will be packed in bulk into containers.



200gsm SS Customized Non Woven Fabric Making Machine High Efficiency 12



200gsm SS Customized Non Woven Fabric Making Machine High Efficiency 13



our service :



1.Machine Inspection



We warmly welcome the customer to come our factory to inspect the production line before delivery . The machines only be delivered when the you accept the quality of the machines and the product.



2.Installation and Training



Once we finalize the production and delivery,we will assign  about 1-3 professional engineers both in mechanical and electrical parts to the buyer’s factory for installation and samples test . And the engineers will also train some skilled workers for buyer. The seller will explain, operate and analyse in theory on the spot until the customer can operate the equipment himself. The customer can consult with the seller at any moment if they don’t understand.



3.After-sale Service



If you have difficulties or faults that can not be resolved by themselves during the practical production, we will offer relative technology immediately or assign workers to resolve the problems on the spot.
