China PP Spunbond Nonwoven Production Line manufacturer

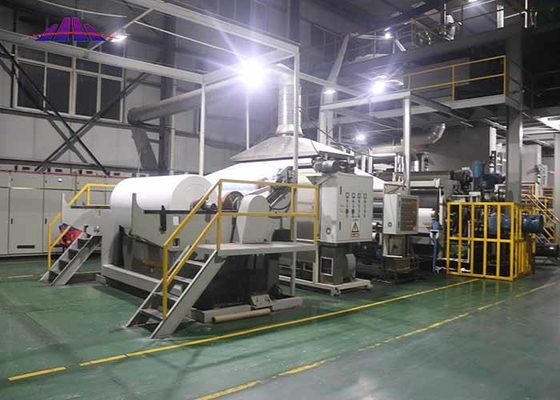

90gsm SSS PP Non Woven Fabric Production Line For Disposable Garments

Product Details:
Place of Origin: Chuzhou China
Brand Name: Chuzhou HH non-woven
Certification: CE
Model Number: 2.4 3.2 M
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wood box packaged , machine wrapping with PE film keep cargo safe
Delivery Time: For detailed talk
Payment Terms: L/C, T/T
Supply Ability: For detailed talk

Detail Information

Product Name: Spunbond Nonwoven Fabric Making Machine Transformer: 630 KVA - 1800 KVA
Technicla: Triple Three SSS Spunbond Customized: Accepted
Speed: 70 - 550 M / Min Number Of Die: Three
Service: Dedicated Engineer On Line Support Port: Nanjing / Shanghai
High Light:

PP non woven fabric production line

,

90gsm non woven fabric production line

,

90gsm nonwoven textile machinery

Product Description

reliable high speed SSS PP Spunbond Nonwoven Fabric Making Machine For Disposable garments face mask use

Product Application

The equipment uses PP as raw material to produce nonwovens, and adopts negative pressure air extraction molding machine technology to make PP spunbonded nonwovens have the characteristics of uniform coverage, high strength, good air permeability and good hand feeling. It is widely used in medical treatment, protective articles, household, hotel articles, beauty disposable articles, agricultural covers, clothing packaging, construction and other industries.



90gsm SSS PP Non Woven Fabric Production Line For Disposable Garments 0



Sss nonwoven fabric

SSS Nonwoven Fabric
Item





G/m2

specification

15 30 45 60 90 120
Allowable deviation(%) First class ±8 ±7
Final product ±10 ±9
Width deviation (%) First class +2.0 ,-1.0 +2.0 ,-1.0
Final product +2.5 ,-1.5 +2.5 ,-1.5

Fracture

strength

MD N/5cm First class 15 35 50 68 95 130
Final product 12 30 45 65 91 108
CD N/5cm First class 10 28 44 64 82 95
Final product 8 25 38 57 57 90





SSS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈630KVA 650º-800º/Ton 5800T
2400mm 9-100G/㎡ ≈1000KVA 650º-800º/Ton 7300T
3200mm 9-100G/㎡ ≈1250KVA 650º-800º/Ton 10000T
4000mm 9-100G/㎡ ≈1500KVA 650º-800º/Ton 12400T
4800mm 9-100G/㎡ ≈1800KVA 650º-800º/Ton 14000T





4800 SSS Model



Effective Width 4800mm
Weight Range 9 - 100 g / ㎡
Out put daily 32 - 40 ton
Machine speed ≦ 550 m / min
Transformer ≈ 1800 KVA
Power Consumption 650º - 800 º / Ton
Machine Size 50*24* 12 M





Applicaton of non -woven
Household geotextiles Industrial/military Heatth care
Tea&coffe bags Soil Stabilizer Military Clothing Lens Tissue
Aprons Drainage Coated Fabrics Diapers

Table clothes

Ironing Boards

Pad

Table Softenner

Sheets

Pond Liners

Sedimentation&Erosion

Roads&Railways

Conveyor Belts

Clean Room Apparel

Air Conditioning Filters

Bandages & Tapes

Surgical Caps,Gowns,Masks

Shoe Cover





Parts Of PP Non Woven Fabric Equipment :



Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box---->Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter

Spun-Laid Process And Technical Flow Chart:

Additive(Recycling offcut fabric)---->Raw material---->Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->Web forming---->Calendering---->Winding----> Cutting---->Final product



90gsm SSS PP Non Woven Fabric Production Line For Disposable Garments 1



Final product



90gsm SSS PP Non Woven Fabric Production Line For Disposable Garments 2



90gsm SSS PP Non Woven Fabric Production Line For Disposable Garments 3



Name: Material Auto-Feeder

Brand:HHM

Original:China

Feeding capacity: 500kg/h for 1.6m , 800kg/h for 3.2m

Delivering distance:12m

Material:stainless steel

Fuction: Automatic sucking the PP materils to the non woven fabric making machine





90gsm SSS PP Non Woven Fabric Production Line For Disposable Garments 4



Metering Pump
Brand:HHM
Original:China
Supply volume:200cc for 1.6m, 200ccx2 for 3.2m

Rotate speed:5~35r/min

Max Pressure:35MPa

Temperature:≤330℃

Fuction: meter PP melt liquid



90gsm SSS PP Non Woven Fabric Production Line For Disposable Garments 5



Name:Main Extruder
Brand:HHM
Original:China
Diameter:Φ135mm for 1.6m,Φ170mm for 3.2m,

Max speed: 75r/min for 1.6m , 85r/min for 3.2m

Motor:90kw for 1.6m , 132kw for 3.2m



90gsm SSS PP Non Woven Fabric Production Line For Disposable Garments 6



Name: Spinning Box

Orifice number:11019 for 1.6m , 17651 for 3.2m

Orifice diameter:Φ0.45mm

L/D=4:1

Max temperature:300℃



Fuction : for spining the PP flament.



Name Spinning box
Orifice number 1109 for 1.6 m , 17651 for 3.2 m
Orifice diameter ¢0.45mm L/D 4 : 1
Max temperature 300℃
Fuction For spinning the PP flow



90gsm SSS PP Non Woven Fabric Production Line For Disposable Garments 7

Name:Filter
Brand:HHM
Original: China
Type: Hydraulic or Candle filter

Filter precision: 45μm~60μm

Fitration area: 2.5 m2for 1.6m,3.5 m2 for 3.2m

Heat source : heat-transfer oil , circular heating



90gsm SSS PP Non Woven Fabric Production Line For Disposable Garments 8







High - precisely CNC center



90gsm SSS PP Non Woven Fabric Production Line For Disposable Garments 9



90gsm SSS PP Non Woven Fabric Production Line For Disposable Garments 10



90gsm SSS PP Non Woven Fabric Production Line For Disposable Garments 11







Exhibition Show



90gsm SSS PP Non Woven Fabric Production Line For Disposable Garments 12



90gsm SSS PP Non Woven Fabric Production Line For Disposable Garments 13



PACKING DETAIL



NUDE PACKING , WOODEN CASE IS OPTIONAL. CASE PACKING:CARDING MACHINE, LAPPER AND ELECTRIC BOXES WOODEN CASE PACKAGED.

OTHER MACHINES NUDE PACKAGING



90gsm SSS PP Non Woven Fabric Production Line For Disposable Garments 14







90gsm SSS PP Non Woven Fabric Production Line For Disposable Garments 15





FAQ (Frequently Asked Questions):



1.What are your advantages? Why should customer choose HHM as supplier?

1). Are you professional?

We are the professional factory and have been focusing only on spunbond and meltblown nonwoven machines.

2). How long are your history?

Our first machine was produced in 2010 in Jianshan factory. Our Chuzhou factory was established in 2018. Our first oversea project was in 2010.

3). What is your machines capacity?

Our spunbond machine has about 30-40% higher capacity than most other common suppliers.

4). Are your technology advanced?

We have upgraded to the 5th generation technology (other suppliers are still the 3rd generation) and have developed more than 20 items of our own core technology for nonwoven industry. We are planning to apply for some key patents protection certificates in year 2021.

5). How much filament fineness can be produced from your machines?

We can assure the filament fineness from our machine is ≤1.8D

6). Are your machines durable?

Our machines are strong structure with long term stable performance, different from many other suppliers' machines which can only keep good performance for short time even less than 1 year.



2.What are the widths of your machine?

We mainly produce 2.4m and 3.2m width machines. The 1.6m, 4.2m and custom widths are also available although with a bit longer delivery time.



3.What beams machine you produce?

We produce S, SS, SSS, SMS, SMMS, SSMS, SSMMS and M machines. S=spunbond, M= meltblown.



4.How long is your delivery time?

Generally the production time needs 3-6 months upon condition. We will confirm you the exact time when you place order.



5.Do you offer installing service?

Sure. We will despatch our technical workers to oversea sites to instruct and help install the machines, meantime to train the workers of customer until they can produce fabric by themselves.



6.What is your warranty?

We offer 1-2 years warranty upon the different parts.
