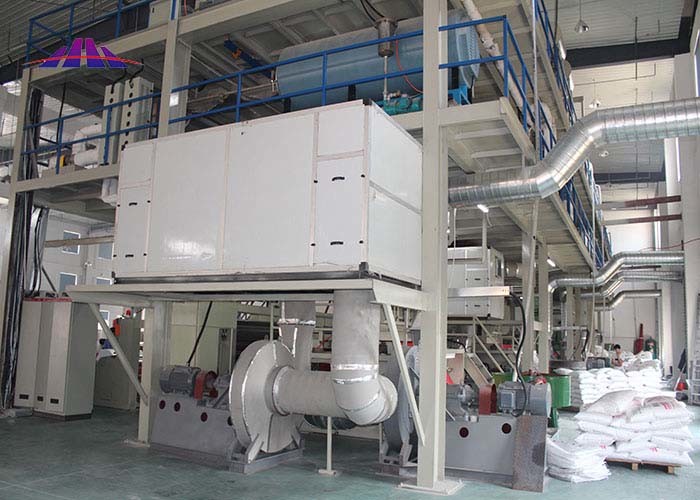

550m/Min SSMS Non Woven Fabric Production Line Meltblown Spunbond

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : components wood box packaged , machine wrapping with PE film keep cargo safe Delivery Time : 90 - 150 days
Payment Terms : L/C, T/T Supply Ability : 3 line / months
Place of Origin: Chuzhou China Brand Name: Chuzhou HH non-woven
Certification: CE Model Number: smms

Detail Information

Product: Ssms Non Woven Fabric Production Line Advantage: Hydrophobic Ssms
Customized: Acceptable Payment: TT / LC
Speed: 550m/min Raw Material: PP Polypropylene
Warranty: One Year Weight: 70 - 150 Ton
High Light:

SSMS Non Woven Fabric Production Line

,

550m/min Non Woven Fabric Production Line

,

SSMS meltblown fabric making machine

Product Description



Hydrophobic SSMS Nonwoven Fabric Producting Machinery LINE

The production line can produce hydrophobic SMM fabrics with high cost performance, German technology and affordable domestic price. Quality first, we insist on quality first,
We guarantee that every major part has a one-year warranty
Physical properties of SSMS
The physical properties of the product shall meet the following requirements
Physical performance requirements
Mass per unit area g / m2 11-13 > 13-17 > 17-21 > 21-25 > 25-30 > 30-35 > 35-40 > 40-50 > 50-60 > 60-70 > 70-80 > 80
Mass deviation rate per unit area:% ≤± 6%, ≤± 4%,
Single value deviation per unit area% ≤± 12%
Longitudinal breaking strength n / 5cm > 18 > 23 > 28 > 35 > 40 > 50 > 54 > 67 > 81 > 90 > 100 > 108
Longitudinal elongation at break% > 30 > 30 > 30 > 30 > 30 > 30 > 30 > 30 > 30 > 30 > 30 > 30
Transverse breaking strength n / 5cm > 9 > 11 > 14 > 18 > 22 > 28 > 32 > 38 > 45 > 55 > 60 > 65
Transverse elongation at break% > 30 > 30 > 30 > 30 > 30 > 30 > 30 > 30 > 30 > 30 > 30 > 30 > 30 > 30 > 30 > 30 > 30
Static pressure mmh2o > 80 > 110 > 130 > 150 > 200 > 220 > 250 > 280 > 300 > 300 > 300 > 300
Air permeability L / m2 / s > 1100 > 900 > 800 > 700 > 600 > 400 > 250 > 200 > 150 > 125 > 125 > 100
Note: for horizontal mesh SMS products with spunbonded layer, the breaking strength and elongation shall be subject to the contract or agreement between the supplier and the seller.
Appearance quality
The cloth surface shall be uniform and smooth without obvious creases, broken edges, holes and oil stains, and shall be rolled neatly.
SMMs covers all the performance of SMS and greatly expands the performance of SMS:
1) Bacteria
2) Hydrostatic pressure
3) Strength
4) Consistency
5) Soft
6) Application field



It is certain that the future application field of SMMS will radiate to all aspects of people's life, replacing.

What is SMMS non-woven fabric

Belongs to the composite non-woven fabric, it is spunbond and melt-blown composite products;

An extension of SMS non-woven fabric.

.

550m/Min SSMS Non Woven Fabric Production Line Meltblown Spunbond 0



HHM SMMS Fabric production line catalog



Model Effective Width Weight Range Output per day Machine speed Tranformer Power consumption Machine Size
HHM-1.6SMMS 1.6M 9-100G/M2 7-12Ton ≦450m/min ≈1500KVA 1700º-1900º/Ton 55M*20M*12M
HHM-2.4SMMS 2.4M 9-100G/M2 10-18Ton ≦450m/min ≈1600KVA 1700º-1900º/Ton 55M*23M*12M
HHM-3.2SMMS 3.2M 9-100G/M2 14-24Ton ≦450m/min ≈2200KVA 1700º-1900º/Ton 55M*25M*12M
HHM-4.0SMMS 4.0M 9-100G/M2 17-30Ton ≦450m/min ≈2500KVA 1700º-1900º/Ton 55M*28M*12M
HHM-4.8SMMS 4.8M 9-100G/M2 23-36Ton ≦450m/min ≈200+630KVA 1700º-1900º/Ton 55M*31M*12M





SMS/SMMS/SSMS/SSMMS Model(Filtration Material, Baby Diaper ,Medical Products)

Working width Fabric Consumption Annual output/Year
1600mm 15-250G/㎡ 400KW 3200T
2400mm 15-250G/㎡ 600KW 5100T
3200mm 15-250G/㎡ 800KW 7000T
4000mm 15-250G/㎡ 1000KW 8700T
4800mm 15-250G/㎡ 1200KW 10500T



finished fabric sample

550m/Min SSMS Non Woven Fabric Production Line Meltblown Spunbond 1



Parts of spunbonded nonwoven fabric production line:



Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter

Spunbonded process and technical flow chart:

Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product



Parts of Melt blown nonwoven fabric production line:



Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter



Melt blown process and technical flow chart:

Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product





550m/Min SSMS Non Woven Fabric Production Line Meltblown Spunbond 2





Main Components of SMMS system



Suction amchine and color matching machine are mainly used to extract pp material and its dyeing

Metering pump is used to control the output by calculating the amount of pp material

Screw extruder is to heat PP material and extrude raw material

Spinning box ,is one of most import parts of the non-woven fabric manufacturing machine. PP material through the spinning box is spun into countless strands of silk .

Filter to filter the melted PP raw material and remove impurities

The silk thread is spun through this box to achieve temperature control and constant temperature .

Draft divice , including up draft and down draft .spinning allows the thread to reach the right thickness through preciss drafting devices.

Calandr where the yarn is spun to form the rudiments of nonwoven fabric .the calander is very large .

Winder machine is used to have made the non woven finished products into the packaging equipment .





550m/Min SSMS Non Woven Fabric Production Line Meltblown Spunbond 3





550m/Min SSMS Non Woven Fabric Production Line Meltblown Spunbond 4





550m/Min SSMS Non Woven Fabric Production Line Meltblown Spunbond 5



550m/Min SSMS Non Woven Fabric Production Line Meltblown Spunbond 6



High precisely CNC machine



550m/Min SSMS Non Woven Fabric Production Line Meltblown Spunbond 7

550m/Min SSMS Non Woven Fabric Production Line Meltblown Spunbond 8



EXHIBITION SHOW



550m/Min SSMS Non Woven Fabric Production Line Meltblown Spunbond 9



550m/Min SSMS Non Woven Fabric Production Line Meltblown Spunbond 10





Packing and delivery



The line or components will also be treated according to export standard against damage and rusting before delivery



550m/Min SSMS Non Woven Fabric Production Line Meltblown Spunbond 11



550m/Min SSMS Non Woven Fabric Production Line Meltblown Spunbond 12





Our Service



1.Installation:

The seller will send 4-7 engineers to install, test the production line and train customers'
workers in buyers' factory. It will take more than 1 month for the whole installation and
operational training.

The seller should cover engineers' salary and visa cost. And the buyer should pay the bill of
Round air tickets, accommodations and transportation in buyers' country as well as food,
medical care, safety cost, and related cost happened in buyers' country. Also, the buyer
should support enough labor, electric wire near the control panel and tools for installations.


2.Guarantee:


Guarantee period for the delivered equipment will be 12month after installation but not later
than 18months after the date of shipment. In case that any item proved to be defective and
the damage is confirmed by seller's technicians within guarantee period, the seller will
either send engineers to repair or supply a new components for replacement free of charge
on the basis of CNF delivery. Besides, HH nonwoven will offer technical support during guarantee
period.
The above item does not apply to the parts which have regular spares or get damaged from
normal wear, abnormal operation, improper maintenance or inadequate manual works. The
seller is not liable for any machinery production loss under any circumstances.

3. Service procedure during guarantee period:

HH nonwoven provides pre-sales, sales and after sales service, especially one year of free
maintenance warranty.
If there are problems with the machine parts, customer can take pictures and send to us by
email to explain the situation, we will help to solve it on line or by email as soon as possible.
During the guarantee period, any malfunction or difficulty which can not get well done after
communication, the seller will send engineers to buyers' factory for problem solving. The
charge burned by buyers include costs of engineers' transportation and accommodation in
buyers' country and air ticket.
