cost effective hydrophilic for hygiene wet wips adult baby diapers non woven fabric making machine

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : wooden case Delivery Time : For detailed talk
Supply Ability : For detailed talk
Place of Origin: Chuzhou China Brand Name: Chuzhou HH non-woven
Certification: CE Model Number: SMS SMMS SSMMS S SS SSS

Detail Information

Produce Name: SS Non Woven Fabric Making Line Feature: Hydrophilic ,Eco-friendly
Key Selling Point: Long Service Life Model: HHM 2400 SS
GSM: 9 - 120 G Warranty: One Year
Power Consumption: 650℃ - 800 ℃ / Ton Original: China
High Light:

Hydrophilic pp non woven fabric machine

,

wet wipes non woven fabric machine

,

hydrophilic automatic non woven machine

Product Description



cost effective hydrophilic for hygiene wet wips adult baby diapers non woven fabric making machine



Affinity non-woven fabric is an environmentally friendly textile fabric, many people may not know it, but its products, we often see adult or baby diapers, household life essential rags, women's tampons and so on. It's all because of it. Hydrophilic non-woven fabric has strong liquid absorption, harmless to human body, convenient and practical! High output 2400mm stainless steel PP spunbond non-woven production line, using polypropylene (PP) as raw material to produce non-woven fabrics. Pp spindle-bonded non-woven fabric was prepared by negative pressure extraction. This product has the characteristics of uniform coverage, high strength, good air permeability, good hand feeling and so on. Widely used in medical protective equipment, home, hotel facade beauty care disposable products, agricultural cover, clothing packaging, construction and so on.

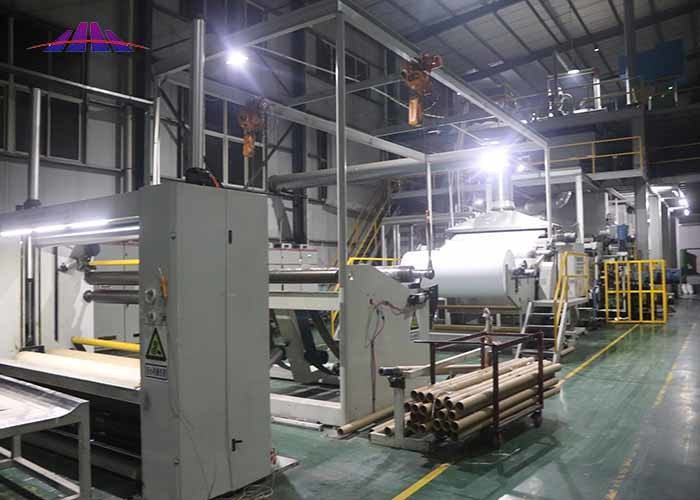

cost effective hydrophilic for hygiene wet wips adult baby diapers non woven fabric making machine 0



HHM 2400 m SS Double beam fabric making line date



Width 2400 M
Gsm 9 - 120 gsm
Output per day 10 - 15Ton
Machine Speed ≦ 350 m / min
Transformer ≈ 500 KVA
Power Consumption 650º - 800º / Ton
Machine Size 45 * 18 *12 M





SS Model



Working width Fabric Power input Consumption Annual output/Year
1600mm 9-120G/㎡ ≈400KVA 650º-800º/Ton 3700T
2400mm 9-120G/㎡ ≈500KVA 650º-800º/Ton 5100T
3200mm 9-120G/㎡ ≈800KVA 650º-800º/Ton 6600T
4000mm 9-120G/㎡ ≈1000KVA 650º-800º/Ton 8800T
4800mm 9-120G/㎡ ≈1200KVA 650º-800º/Ton 10000T



SSS Model



Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈630KVA 650º-800º/Ton 5800T
2400mm 9-100G/㎡ ≈1000KVA 650º-800º/Ton 7300T
3200mm 9-100G/㎡ ≈1250KVA 650º-800º/Ton 10000T
4000mm 9-100G/㎡ ≈1500KVA 650º-800º/Ton 12400T
4800mm 9-100G/㎡ ≈1800KVA 650º-800º/Ton 14000T



Machine Model Reifenhauser Reicofil 3/4,Spunbond lines, spun-melt lins S, SS,SSS, SXS,SXXS,SMMS ,SMS ,SSMMS
Machine Size 18m-60m(L)*10m-31m(W)*10m-12m(H)
Raw Material required

PP(polypropylene),additives

MFI/MFR:25-40g/10min(spunbonding process)

MFI/MFR:800-2000g/10min (Melt-blowning process)

Effective width 1600mm,2400mm,3200mm,4000mm,4800mm customizable width by requirements
Max Speed 150m/mn-550m/min
Transformer&Power consumption

Transformer require:200KVA-3000KVA

Power consumption :500KWH/Ton-1400KWH/Ton

Output per year 1500 Tons - 10000 Tons
Products GSM 8gsm-250 gsm
Applications of products

Industrial:Shopping bags, furniture ,agriculture ,packageing,etc

Medical:Surgical gown /cap /sheet /mask ,etc

Hygiene: Diapers ,sanitary ,napking , etc.





Technical Parameters ( Standard Specification) of Our Nonwoven Machine
  Model No. Gram Weight MaxSpeed(m/min) Capacity(T/Days) Equipment Size



HH-S (single beam)

1.6m 9-250 150 4-6 18*8*12m
  2.4m     5-7 18*10*12m
  3.2m     8-10 18*15*12m



HH-SS (single beam)

1.6m 10-120 350 8-10.5 45*15*12m
  2.4m     10-15 45*18*12m
  3.2m     13-20 45*20*12m



HH-SSS (single beam)

1.6m 10-100 550 12-17 50*15*12m
  2.4m     16-21 50*18*12m
  3.2m     24-30 50*20*12m



SMMMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-80G/㎡ ≈1600KVA 1700º-1900º/Ton 6200T
2400mm 9-80G/㎡ ≈2000KVA 1700º-1900º/Ton 8000T
3200mm 9-80G/㎡ ≈3000KVA 1700º-1900º/Ton 11000T
4200mm 9-80G/㎡ ≈3500KVA 1700º-1900º/Ton 14000T
4800mm 9-80G/㎡ ≈4000KVA 1700º-1900º/Ton 16000T



1.Description Of Non-woven Machine



1) Parts of spunbonded nonwoven fabric production line:
Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter


2) Spunbonded process and technical flow chart:


Additive(Recycling off-cut fabric)---->Raw material----> Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
Web forming---->Calendering---->Winding----> Cutting---->Final product







cost effective hydrophilic for hygiene wet wips adult baby diapers non woven fabric making machine 1



Nonwoven fabric roll



cost effective hydrophilic for hygiene wet wips adult baby diapers non woven fabric making machine 2







Precisely CNC machining



cost effective hydrophilic for hygiene wet wips adult baby diapers non woven fabric making machine 3



cost effective hydrophilic for hygiene wet wips adult baby diapers non woven fabric making machine 4





cost effective hydrophilic for hygiene wet wips adult baby diapers non woven fabric making machine 5





cost effective hydrophilic for hygiene wet wips adult baby diapers non woven fabric making machine 6





Exhibition show



cost effective hydrophilic for hygiene wet wips adult baby diapers non woven fabric making machine 7





cost effective hydrophilic for hygiene wet wips adult baby diapers non woven fabric making machine 8





Packaging Details



Main machine parts will be packed with wooden cases.Electrical parts will be packed with plastic and then packed into wooden cases.For the steel structure they will be packed in bulk into containers.



cost effective hydrophilic for hygiene wet wips adult baby diapers non woven fabric making machine 9



cost effective hydrophilic for hygiene wet wips adult baby diapers non woven fabric making machine 10





Our Service



Pre-sale Service

Employees have a special sense of responsibility and excellent teamwork spirit, so the machine adopts unique and outstanding components, which meet the highest standards of the nonwoven industry.

With the support of modern technology, to provide all customers with the best solution machinery Claim.



After-sales Service

Our customer service can answer inquiries.

We only believe that: the best machine with innovative ideas and high-quality after-sales service: "will meet your special requirements."
