China PP Spunbond Nonwoven Production Line manufacturer

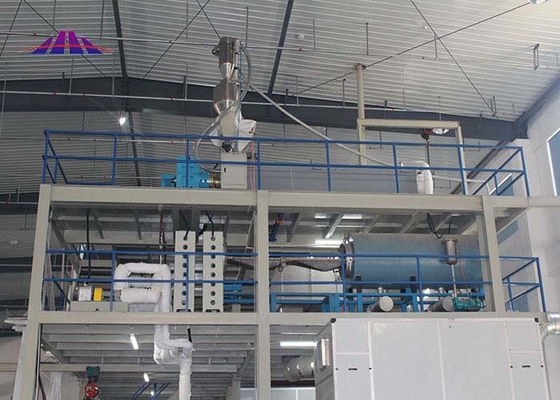

600m/Min 80gsm Meltblown Fabric Production Line High Safety

Product Details:
Place of Origin: Chuzhou China
Brand Name: Chuzhou HH non-woven
Certification: CE
Model Number: SMS SMMS SSMMS S SS SSS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wood box packaged , machine wrapping with PE film keep cargo safe
Delivery Time: For detailed talk
Payment Terms: L/C, T/T
Supply Ability: For detailed talk

Detail Information

Model: Meltblown Fabric Production Line SMS SMMS Specition: 1.6 - 4.8 M
Gsm: 9 - 80 G Certificate: CE ISO 900
Weight: 100 -200 T Size: 60 *31 *12 M
High Light:

600m/min Meltblown Fabric Production Line

,

80gsm Meltblown Fabric Production Line

,

80gsm melt blown cloth production line

Product Description



Meltblown Spunbond Composite Nonwoven Fabric Machine SMS SMMS Ssms Ssmms Meltblown Fabric Production Line



Non-woven Machinery Application


Hospital and protective equipment: surgical mask, surgical curtain, surgical mask, disposable clothing, surgical curtain, shoe covers, etc. Combined with other types of non-woven fabrics
Sanitary materials: baby diapers, adult incontinence pads, female hygiene pads, other cleaning applications.
Technical engineering: civil engineering, construction engineering, agricultural field, automobile field, etc.
Packaging products: shopping bags, rice bags, tea bags, clothing packaging, etc.
Home products: spring wrapped cloth, bedding, seat supplies, etc.
Paper composite materials and other work protection, protective clothing, gas masks, etc

600m/Min 80gsm Meltblown Fabric Production Line High Safety 0



1 SSMMS SMMS SMS DATA SHEET



Production line parameters(m) Weight ( g / m2)

Max speed

( m / min )

Production

Capacity ( t / y )

2.4 8 -150 600 10000
3.2 13000
4.2 16500





2. Process flow


Additive (recycle edge)

Materialmelting and extruding filtering metering spinning quenching air-flow drawing web forming calendaring winding and slitting







600m/Min 80gsm Meltblown Fabric Production Line High Safety 1

4 Key component



600m/Min 80gsm Meltblown Fabric Production Line High Safety 2

Name:Main Extruder Brand:HHM Original:China Diameter:Φ135mm for 1.6m,Φ170mm for 3.2m,Max speed: 75r/min for 1.6m , 85r/min for 3.2m Motor:90kw for 1.6m , 132kw for 3.2m

600m/Min 80gsm Meltblown Fabric Production Line High Safety 3

Name:FilterBrand:HHMOriginal: ChinaType: Hydraulic or Candle filterFilter precision: 45μm~60μmFitration area: 2.5 m2for 1.6m,3.5 m2 for 3.2m

Heat source : heat-transfer oil , circular heating

600m/Min 80gsm Meltblown Fabric Production Line High Safety 4

Name: Spinning BoxOrificenumber:11019for1.6m17651for3.2mOrificediameter:Φ0.45mmL/D=4:1Max temperature:300℃

Fuction : for spining the PP flament.



Name Spinning box
Orifice number 1109 for 1.6 m , 17651 for 3.2 m
Orifice diameter ¢0.45mm L/D 4 : 1
Max temperature 300℃
Fuction For spinning the PP flow



600m/Min 80gsm Meltblown Fabric Production Line High Safety 5

Calandr machine where the yarn is spun to form the rudiments of nonwoven fabric .the calander is very large .

600m/Min 80gsm Meltblown Fabric Production Line High Safety 6

SLitter  cutter & Winder machine is used to have made the non woven finished products into the packaging equipment



5 High - accuracy CNC center keep S SS SMS SSMMS non woven making line beyond customer requriement .



600m/Min 80gsm Meltblown Fabric Production Line High Safety 7



600m/Min 80gsm Meltblown Fabric Production Line High Safety 8



600m/Min 80gsm Meltblown Fabric Production Line High Safety 9



6 Shipping and packing



Machine Nude packing , wooden case is optional , case packing , ecletric parts carton box or wooden case packaged , other machines nue packaging wrapping with PE film keep cargo safe.





600m/Min 80gsm Meltblown Fabric Production Line High Safety 10



600m/Min 80gsm Meltblown Fabric Production Line High Safety 11



600m/Min 80gsm Meltblown Fabric Production Line High Safety 12
