China PP Spunbond Nonwoven Production Line manufacturer

Meltblown Nonwoven Polypropylene Fabric Machine 100gsm 300KW

Product Details:
Place of Origin: Chuzhou China
Brand Name: Chuzhou HH non-woven
Certification: CE
Model Number: ssmms
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: For detailed talk
Packaging Details: wood box packaged , machine wrapping with PE film keep cargo safe
Delivery Time: For detailed talk
Supply Ability: For detailed talk

Detail Information

Product Name: 4200 Meltblown Fabric Production Line Effective Width: 4200 Mm
Automic Grade: Fully Automicly Model: 4200 HHM Ssmms
Gsm: 9 - 100 Gsm Power: 300 KW
SIZE: 60 * 28 *12 M Final Product: Hygiene Non-woven Medical
High Light:

100gsm polypropylene fabric machine

,

Meltblown polypropylene fabric machine

,

300KW pp melt blown filter machine

Product Description

Professional Services Sms/smms/ssms/ssmms Ss Meltblown Nonwoven Digital Print Non Woven MachiMeltblown Fabric Production line



H H advantages of non-woven fabric manufacturing machine:
1. High precision polypropylene raw material mixer and additives; 2. Large capacity extruder with good screw and barrel performance;
3. High performance melt filtration system;
4. High speed and high precision melt pump;
5. The latest melt flow design and spinning system;
Familiar with PLC control system and motor;
7. Intelligent operation procedure and monitoring system;

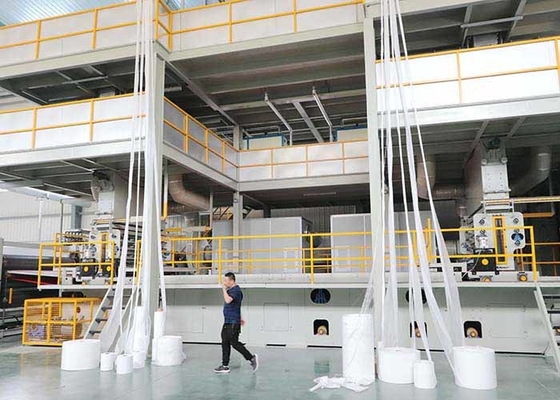

Meltblown Nonwoven Polypropylene Fabric Machine 100gsm 300KW 0



4200 SMMSS Model



Effective Width 4200mm
Weight Range 9 - 80 g / ㎡
Out put daily 30 - 40 ton
Machine speed ≦ 600 m / min
Transformer ≈ 3500 KVA



SMMMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-80G/㎡ ≈1600KVA 1700º-1900º/Ton 6200T
2400mm 9-80G/㎡ ≈2000KVA 1700º-1900º/Ton 8000T
3200mm 9-80G/㎡ ≈3000KVA 1700º-1900º/Ton 11000T
4200mm 9-80G/㎡ ≈3500KVA 1700º-1900º/Ton 14000T
4800mm 9-80G/㎡ ≈4000KVA 1700º-1900º/Ton 16000T






HHM-SSMMS Five-Beam spunmelt nonwoven fabric making machine/line

Effective

Width(mm)

Raw Materials

Max.Speed

(Tons/year)

GSM Range

(g/sq.m)

Daily Capacity

(Tons/Day)

Annual Capacity

(Tons/year)

2400



Polypropylene(PP)

600 9-80 23 8400
3200       31 11400
4800       40 14600
The whole line can CUSOMIZED as your needs .



Parts of spunbonded nonwoven fabric production line:



Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter

Spunbonded process and technical flow chart:

Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product



Parts of Melt blown nonwoven fabric production line:



Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter



Melt blown process and technical flow chart:



Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product



Meltblown Nonwoven Polypropylene Fabric Machine 100gsm 300KW 1

Key component



Meltblown Nonwoven Polypropylene Fabric Machine 100gsm 300KW 2

Maximum temperature

300 ℃

Max. Output

200 kg / h

Heating zone

8 tod

Perforated length

3,350 mm

HPI

40

Number of holes

5,276

1 Set L/D

10

Capillary diameter

0.3mm

Capillary length

3,600mm

Meltblown Nonwoven Polypropylene Fabric Machine 100gsm 300KW 3

Brand:HHM

Aperture (1pc)

90 300 kg / h

The screw L/D of the main extruder

30:1

The screw L/D of the ancillary extruder

15:1

Meltblown Nonwoven Polypropylene Fabric Machine 100gsm 300KW 4

Name:Filter
Brand:HHM
Original: China
Type: Hydraulic or Candle filter

Filter precision: 45μm~60μm

Fitration area: 2.5 m2for 1.6m,3.5 m2 for 3.2m

Heat source : heat-transfer oil , circular heating

Meltblown Nonwoven Polypropylene Fabric Machine 100gsm 300KW 5

Name: Spinning Box

Orifice number:11019 for 1.6m , 17651 for 3.2m

Orifice diameter:Φ0.45mm

L/D=4:1

Max temperature:300℃

Fuction : for spining the PP flament.

Meltblown Nonwoven Polypropylene Fabric Machine 100gsm 300KW 6



Draft divice , including up draft and down draft .spinning allows the thread to reach the right thickness through preciss drafting devices.





Advanced CNC center



Meltblown Nonwoven Polypropylene Fabric Machine 100gsm 300KW 7

Meltblown Nonwoven Polypropylene Fabric Machine 100gsm 300KW 8





Package and shipment



Meltblown Nonwoven Polypropylene Fabric Machine 100gsm 300KW 9

Meltblown Nonwoven Polypropylene Fabric Machine 100gsm 300KW 10Meltblown Nonwoven Polypropylene Fabric Machine 100gsm 300KW 11




FAQ

A .Do you offer installing service?

Sure. We will despatch our technical workers to oversea sites to instruct and help install the machines, meantime to train the workers of customer until they can produce fabric by themselves.
B .What is your warranty?

We offer 1-2 years warranty upon the different parts.

 C .How long is your delivery time?

Generally the production time needs 3-6 months upon condition. We will confirm you the exact time when you place order.

D  .Are you factory or trading company? and where is your factory located, how can I visit it?

We are factory with export rights. We manufacture machines and export to customers by ourself. Our factory is located in Chuzhou City, Anhui Province, which is famous for making non-woven fabric machinery. You can take a plane to Nanjing / Shanghai Airport, or take a high-speed train to Chuzhou Station, we will pick you up.

E Why would i choose your product?

1.Quality Control in whole process, provide individual high cost-effective nonwoven lines, helping customer cost saving. 2.Focus on non woven equipment research and development in 14 years. Install and running more than 200 lines all over the world 3.Over 20 person team for machine after sales service.Ensure the customers can get quickly and professional installation and debugged in time.
