SS SMMS PP Spunbond Machine Non Woven Textile Machinery For Protection Clothing

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : wood box and machine wrapping with PE film keep cargo safe Delivery Time : For detailed talk
Supply Ability : For detailed talk
Place of Origin: Chuzhou China Brand Name: Chuzhou HH non-woven
Certification: CE Model Number: SMS SMMS SSMMS S SS SSS

Detail Information

Product Name: SMMS Non Woven Fabric Production Line 4800 Technical: Spunbond & Meltblown
Effective Width: 4800 Mm Raw Material: PP Polypropylene
Daily Output: 36 Ton Smms Roll Voltage: Customer Requrist
Service: Engineer Over Sea Or On Line Support Machine Weight: 100-200 Ton
High Light:

SMMS non woven textile machinery

,

Spunbond non woven textile machinery

,

SMMS non woven fabric lamination machine

Product Description

adult diaper baby SS SMMS PP Spunbonded Fiber Making Spunbond Machine Non Woven Fabric Production Line





Product category:

1)SMMS Composite medical Non-Woven Fabric

2)SMS Composite nonwoven fabric

3)SS Spunbonded nonwoven fabric

4)S Spunbonded nonwoven fabric

5) M Melt blown nonwoven fabric

Basic gram weight:SMS:9-100g/㎡ SMS:9-100g/㎡ S:10-150g/㎡



Product Application



1) Medical and sanitary cloth: surgical clothes, protective clothing, masks, diapers, etc;
2) Industrial cloth: filter material, insulating material, cement packing bag, geotextile.
3) Agricultural cloth: planting protection cloth and seedling raising cloth.
4) Environmental protection materials: sanitary products, such as filter non-woven fabric, tarpaulin, etc.

Introduction to the composition of the meltblown production line





Product application



Material PP chip Weight range 10-150 g/m2
Model

HHM-1.6SMMS/HHM-2.4SMMS

HHM-3.2SMMS/HHM-4.0SMMS/HHM-4.8SMMS

Fabric usage

Medical applicant,shopping bag , packing

Operation suit,face mask, baby diaper.etc



  •  Hot air heating system

(1) Atlas air compressor

Boost pressure: 0.7MPa

Power: 120KW~200KW

(2) Air heater

Heating power: 220KW-240KW

Material of tank and pipeline: stainless steel 304

Insulation form: stainless steel seal outside the insulation layer

  • Electret system.
  • Rack platform device:
  • Steel structure, easy to disassemble, firm and reliable, including stairs, etc
  • Die head heating power: about 70kw
  •  Electrical control box

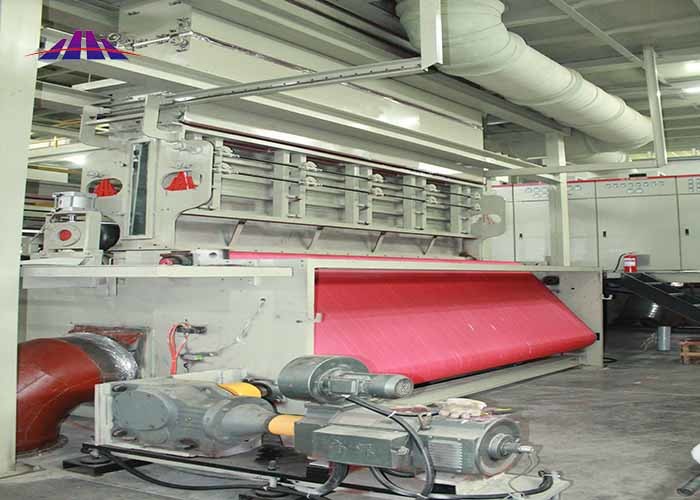

SS SMMS PP Spunbond Machine Non Woven Textile Machinery For Protection Clothing 0



4000 SMMS Model



Effective Width 4000mm
Weight Range 9 - 100 g / ㎡
Out put daily 30 ton
Machine speed ≦ 450 m / min
Transformer ≈ 2500 KVA
Power Consumption 1700º - 1900 º / Ton
Machine Size 55 *28* 12 M





Technical Parameters

Model

HHM-1.6

SMMS

HHM-2.4SMMS HHM-3.2SMMS HHM-4.0SMMS HHM-4.8SMMS
Effective width 1.6M 2.4M 3.2M 4.0M 4.8M
Weight range 10-100g/m2 10-100g/m2 10-100g/m2 10-100g/m2 10-100g/m2
Out put per day 7-12Ton 10-18Ton 14-24Ton 17-30Ton 21-36Ton
Machine speed ≦400/min ≦400/min ≦400/min ≦400/min ≦400/min
Transformer capacity ≦1500KVA ≦1600KVA ≦2200KVA ≦25000KVA ≦2630KVA
Power consumption 1400º-2000º/Ton 1400º-2000º/Ton 1400º-2000º/Ton 1400º-2000º/Ton 1400º-2000º/Ton
Machine Size(L*W*H) 45m*18m*12m 45m-22m*12m 45m*25m*12m 45m*28m*12m 45m*31m*12m



Model Effective width Daily capacity Speed Spinning system GSM Range Machine dimension
Length*Width*Height
HH-1600M 1600MM 2000Kg 70M/Min Meltblown 15-300 18*10*10 meter
HH-2400M 2400MM 3000Kg       18*11*10 meter
HH-3200M 3200MM 4500Kg       18*13*10 meter
HH-1600S 1600MM 5000Kg 150M/Min

Spunbond

(S)

9-250 18*8*12 meter
HH-2400S 2400MM 7000Kg       18*10*12 meter
HH-3200S 3200MM 10000Kg       18*15*12 meter
HH-1600SS 1600MM 9000Kg 350M/Min

Spunbond

(SS)

8-150 45*15*12 meter
HH-2400SS 2400MM 13000Kg       45*18*12 meter
HH-3200SS 3200MM 16000Kg       45*20*12 meter
HH-1600SSS 1600MM 12000Kg 550M/Min

Spunbond

(SSS)

9-120 50*15*12 meter
HH-2400SSS 2400MM 16000Kg       50*18*12 meter
HH-3200SSS 3200MM 24000Kg       50*20*12 meter





Parts of spunbonded nonwoven fabric production line:

Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter

Spunbonded process and technical flow chart:

Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product



Parts of Melt blown nonwoven fabric production line:

Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter



Melt blown process and technical flow chart:

Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product



Working process



SS SMMS PP Spunbond Machine Non Woven Textile Machinery For Protection Clothing 1

Mainly componet



SS SMMS PP Spunbond Machine Non Woven Textile Machinery For Protection Clothing 2



Aperture (1pc) 90 300 kg / h
The screw L/D of the main extruder 30:1
The screw L/D of the ancillary extruder 15:1





SS SMMS PP Spunbond Machine Non Woven Textile Machinery For Protection Clothing 3



Maximum temperature 300 ℃
Max. Output 200 kg / h
Heating zone 8 tod
Perforated length 3,350 mm
HPI 40
Number of holes 5,276
1 Set L/D 10
Capillary diameter 0.3mm
Capillary length 3,600mm



SS SMMS PP Spunbond Machine Non Woven Textile Machinery For Protection Clothing 4



Spinning box ,is one of most import parts of the non-woven fabric manufacturing machine. PP material through the spinning box is spun into countless strands of silk .



SS SMMS PP Spunbond Machine Non Woven Textile Machinery For Protection Clothing 5



Metering pump is used to control the output by calculating the amount of pp material



SS SMMS PP Spunbond Machine Non Woven Textile Machinery For Protection Clothing 6





Suction amchine and color matching machine are mainly used to extract pp material and its dyeing





Advanced CNC tools



SS SMMS PP Spunbond Machine Non Woven Textile Machinery For Protection Clothing 7



SS SMMS PP Spunbond Machine Non Woven Textile Machinery For Protection Clothing 8



SS SMMS PP Spunbond Machine Non Woven Textile Machinery For Protection Clothing 9



SS SMMS PP Spunbond Machine Non Woven Textile Machinery For Protection Clothing 10



Packing and delievery



SS SMMS PP Spunbond Machine Non Woven Textile Machinery For Protection Clothing 11



SS SMMS PP Spunbond Machine Non Woven Textile Machinery For Protection Clothing 12



FAQ

1 Are you factory or trading company?

Actually we are manufacturer with our own factory , have the right to export and import product authorized by government.



2. Can you do OEM .

Yes of course .we can produce the product an per you request.



3. Can I get sample from your company? Should I pay the express fee?

If we have the sample in stock ,it will be free. If you want a customized sample ,we can renegotiate the cost. About the express fee , please offer a freight collected account and pay for the express by you side. After confirming you order ,the samples freight will be deducted from you order’s total cost.



4. what can I do if machine stop work?

You can email us ,call us or video call we let our engineer checking what is the problem is, if the spare parts or something broken in the warranty time, we offer free.



5. what is your after service?

We offer customer a lifetime service.
