China PP Spunbond Nonwoven Production Line manufacturer

1600mm Automatic Non Woven Making Machine Stably Single Beam

Product Details:
Place of Origin: Chuzhou
Brand Name: Chuzhou HH non-woven
Certification: CE
Model Number: 1.6 S 2.4 S 3.2 S 4.8
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1000000$/set
Packaging Details: wooden case
Delivery Time: For detailed talk
Payment Terms: L/C, T/T
Supply Ability: For detailed talk

Detail Information

Machine Name: Non Woven Fabric Making Machine 1.6 S Supply Type: Can Customized
Machine Size: 18 M *8 M *12 M Application: Shopping Bags , Agriculture , Face Mask ,..etc
Certificate: CE Automatic: Fully Automatic
Width: 1600 Core Component: PLC ,gear Box , Spinning Die , Spinning Beam ..
High Light:

1600mm automatic non woven making machine

,

single beam non woven fabric machine

,

automatic non woven fabric machine 1600mm

Product Description

stably Automatic PP single beam Non Woven Fabric Making Machine




HHM 1600 m S Single beam fabric making line date



Width 1600 M
Gsm 9 - 250 gsm
Output per day 4 - 6Ton
Machine Speed ≦150 m / min
Transformer ≈ 200 KVA
Power Consumption 600º - 700º / Ton
Machine Size 18 * 8 *12 M





With a spinneret of 0.45mm hole diameter , the viscous polymer solution is transformed into a trickle with a specific cross-section through the micro pores, and solidified by the coagulation medium to form filaments
Stretching Unit
The stretching device including up stretching and down stretching unit, the function is drawing spinning, flaments into web forming by air.
1.Efficiently strentching with less energy consumption.
2.Evenly spinning filaments with less difference
3.Closed system with easy concrol






S Model

Effective width(mm) 1600 2400 3200 4000 4800
Output(ton/year) 1800T 2200T 3300T 4400T 5100T
GMS Range(g/㎡) 9-250 9-250 9-250 9-250 9-250
Max.speed(m/min) 150 150 150 150 150


Spunbond making line cataloge


Model Effective Width Weight Range Output per day Machine speed Tranformer Power consumption Machine Size
HHM-1.6S 1.6M 9-250G/M2 4-6Ton ≦150m/min ≈200KVA 650º-700º/Ton 18M*8M*12M
HHM-2.4S 2.4M 9-250G/M2 5-7Ton ≦150m/min ≈250KVA 650º-700º/Ton 18M*10M*12M
HHM-3.2S 3.2M 9-250G/M2 8-10Ton ≦150m/min ≈315KVA 650º-700º/Ton 18M*15M*12M
HHM-4.0S 4.0M 9-250G/M2 11-13Ton ≦150m/min ≈360KVA 650º-700º/Ton 18M*18M*12M
HHM-4.8S 4.8M 9-250G/M2 12-15Ton ≦150m/min ≈400KVA 650º-700º/Ton 18M*22M*12M



Detailed Images



1600mm Automatic Non Woven Making Machine Stably Single Beam 0

Name: Material Auto-Feeder

Brand:HHM

Original:China

Feeding capacity: 500kg/h for 1.6m , 800kg/h for 3.2m

Delivering distance:12m

Material:stainless steel

Fuction: Automatic sucking the PP materils to the non woven fabric making machine







1600mm Automatic Non Woven Making Machine Stably Single Beam 1



Name:Main Extruder
Brand:HHM
Original:China
Diameter:Φ135mm for 1.6m,Φ170mm for 3.2m,

Max speed: 75r/min for 1.6m , 85r/min for 3.2m

Motor:90kw for 1.6m , 132kw for 3.2m

Fuction: Automatic heat , melt and extrude the PP materials



1600mm Automatic Non Woven Making Machine Stably Single Beam 2

Name:Main Extruder
Brand:HHM
Original:China
Diameter:Φ135mm for 1.6m,Φ170mm for 3.2m,

Max speed: 75r/min for 1.6m , 85r/min for 3.2m

Motor:90kw for 1.6m , 132kw for 3.2m

Fuction: Automatic heat , melt and extrude the PP materials









Process diagram:

This is the process flow chart of spunbonded non-woven fabric line. The whole assembly line has clear structure and perfect
function. The role and function of each link are clearly visible.
1600mm Automatic Non Woven Making Machine Stably Single Beam 3
Advannced CNC Tools

1600mm Automatic Non Woven Making Machine Stably Single Beam 4

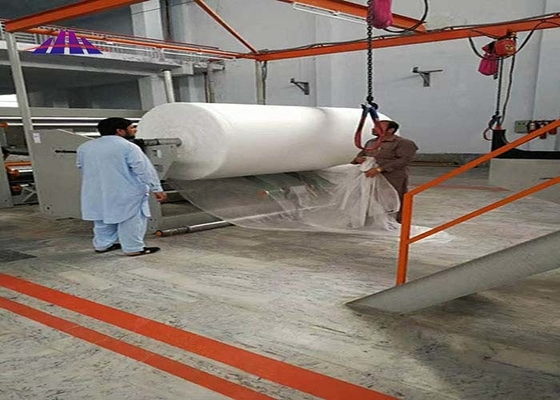

Nonwoven line in job side

1600mm Automatic Non Woven Making Machine Stably Single Beam 51600mm Automatic Non Woven Making Machine Stably Single Beam 61600mm Automatic Non Woven Making Machine Stably Single Beam 7

FAQ
1. Q : Are you a factory or trading company ?
A : We are established in 2009 , has been in onwoven industry for more than ten years .
2. Q: Do you have technical support?
A: yes , we will provide on-site installation service.
3 Q : How does your factory do regarding quality control ?
A: Quality is the most important principle . we always attach great importane to quality controlling from the very beginnging to the very end , our factory has passed CE and ISO certification .
4 Q :How long is you machine’s warrant period .
A : bascily one year warranty , long time service support .
