3200mm PP Spunbond Nonwoven Production Line SMS SMMS SSS For Diaper

Product Details:
Place of Origin: Chuzhou China
Brand Name: Chuzhou HH non-woven
Certification: CE
Model Number: SMS SMMS SSMMS S SS SSS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wooden box packaged , machine wrapping with PE film keep cargo safe
Delivery Time: 90 - 150 days
Payment Terms: L/C, T/T
Supply Ability: For detailed talk

Detail Information

Item: PP Sms Nonwoven Production Line Width: 3200 Mm
Install Power: 1600 Kva Power Consumption: 1300 º - 1600 º
Cutting Presion: ± 1.5 Mm Usage: Hygiene, Filtration, Medical
Energy: Electrical Or Natural Gas Certificate: CE
High Light:

3200mm PP Spunbond Nonwoven Production Line

,

SSS PP Spunbond Nonwoven Production Line

,

3200mm spunbond fabric machine

Product Description

PP SPUBOND NONWOVEN Production line SMMS SMS SERIES



Description of SMS SYTEM



3.2m SMS non-woven fabric forming machine production line, with high-efficiency and high-quality non-woven fabric production capacity. The effective width of the cloth is 3.2m, the speed of the production line can reach 450 m / min, and the output cloth is widely used, especially in health protection.
HH nonwoven advantages
1. High capacity 8000 tons according to ssmms 3200 GSM 13 g / ㎡ 10 months / year
2. Affordable, flexible design and low investment. Compared with well-known brands, the total price is only 50% - 60%.
3. The delivery time is short, 120 days according to 2.4 m standard
4. Excellent quality, components of famous brands, Gardner Denver, simmes, SKF
5. Low energy consumption and energy saving of electricity and natural gas.
Non woven fabrics produced by spinning bonding method are widely used in diapers, sanitary textiles, filtration and other fields, automobile industry, civil engineering, packaging, carpet substrate and so on. Melt blown spinning, commonly known as SMS, is a three-layer non-woven fabric. It is made of a layer of spun bonded polypropylene,

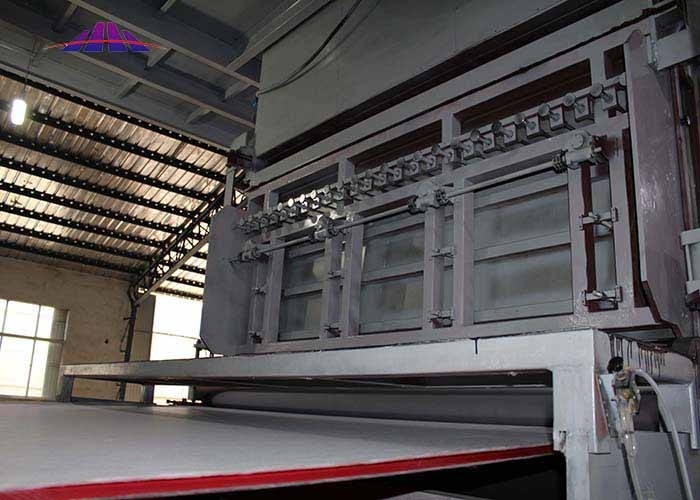

 3200mm PP Spunbond Nonwoven Production Line SMS SMMS SSS  For Diaper 0



Model HH-1600 SMS HH - 2400 SMS HH - 3200 SMS
No. of Die Head SS : 2 + M : 1
Filament Denier 1.5 - 2.0 d / 2 - 55 um
GSM Range (g / sq.m) 9 - 100 g /sq.m
Speed ( m / min ) 550 m / min
Effective width (mm) 1600 mm 2400 mm 3200 mm
Daily output (kg /day) 10000 kg 15000 kg 20000 kg



Model Effective width Daily capacity Speed Spinning system GSM Range Machine dimension
Length*Width*Height
HH-1600M 1600MM 2000Kg 70M/Min Meltblown 15-300 18*10*10 meter
HH-2400M 2400MM 3000Kg       18*11*10 meter
HH-3200M 3200MM 4500Kg       18*13*10 meter
HH-1600S 1600MM 5000Kg 150M/Min

Spunbond

(S)

9-250 18*8*12 meter
HH-2400S 2400MM 7000Kg       18*10*12 meter
HH-3200S 3200MM 10000Kg       18*15*12 meter
HH-1600SS 1600MM 9000Kg 350M/Min

Spunbond

(SS)

8-150 45*15*12 meter
HH-2400SS 2400MM 13000Kg       45*18*12 meter
HH-3200SS 3200MM 16000Kg       45*20*12 meter
HH-1600SSS 1600MM 12000Kg 550M/Min

Spunbond

(SSS)

9-120 50*15*12 meter
HH-2400SSS 2400MM 16000Kg       50*18*12 meter
HH-3200SSS 3200MM 24000Kg       50*20*12 meter



Advantages of HHM non-woven fabric manufacturing machine: 1) high precision polypropylene and additive raw material mixer; 2) High capacity extruder, good performance of screws and barrel; 3) High-performance melt filtration system; 4) High speed, high precision melt pump; 5) The latest melt flow design and spinning system; 6) Well-known PLC control system and motor; 7) Intelligent operation procedures and monitoring system



1600 SMMS Model

Effective Width 1600mm
Weight Range 9 - 100 g / ㎡
Out put daily 7 - 12 ton
Machine speed ≦ 50 m / min
Transformer ≈ 1500 KVA
Power Consumption 1700º - 1900 º / Ton
Machine Size 55 *20 * 12 M



machine feature

Product Name Spunbond non-woven production line Technology Rhine ,Germany
Type M,S,SS,SSS,SMS,SSMS,SSMMS Spinneret Size 0.45mm,10500 holes
Lead Time 90 - 108 days Trade type Manufacturer
Payment 15% deposit 80% before shipping 5 % after line running Perfomance 3 - 25 tons / day
Location Chuzhou city Anhui province , China Warranty 1 year
Near sea port Nanjing / Shanghai SIZE 1600 - 4800 mm



Technical parameter sms

Model No Working Width Fabric GSM Power Input Consumption Annual Output Embossing pattern
HHM-1600SMS 1600mm 9 - 100 1200KVA 800KW 3500T Diamond, Oval
HHM-2400SMS 2400mm 9 - 100 1600KVA 1200KW 5000T Diamond, Oval
HHM-3200SMS 3200mm 9 - 100 2200KVA 1600KW 6500T Diamond, Oval



3200mm PP Spunbond Nonwoven Production Line SMS SMMS SSS  For Diaper 1

Parts of spunbonded nonwoven fabric production line:



Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter



Spunbonded process and technical flow chart:



Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product



Parts of Melt blown nonwoven fabric production line:



Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter



Melt blown process and technical flow chart:



Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product



3200mm PP Spunbond Nonwoven Production Line SMS SMMS SSS  For Diaper 2



Main parts of nonwoven system .

3200mm PP Spunbond Nonwoven Production Line SMS SMMS SSS  For Diaper 3

Meltblown die head assembly

maximum temperature: 300.;

Max.output:200kg/h;

Heating zone:8tod;

Perforated length:3,350mm;

HPI:40;

1 Sets L/D=10; Number of holes:5.276;

Capillary diameter:0.3mm;



3200mm PP Spunbond Nonwoven Production Line SMS SMMS SSS  For Diaper 4



Spinning Beam



One of the main components of the melt spinning machine is a polymer melt through the filter into the spinning box and spinning through the melt distribution and heat preservation. A rectangular metal box with a box for outsourced insulation. It contains the melt distribution pipe, the pump seat and the shotcrete head component. A device for fixing a spinneret.





3200mm PP Spunbond Nonwoven Production Line SMS SMMS SSS  For Diaper 5



Extrusion Machine

Aperture:90 300kg/h 1pc;

Heating System: electricity heating; Drive Motor: Siemens; Original:CHINA





3200mm PP Spunbond Nonwoven Production Line SMS SMMS SSS  For Diaper 6



Name: Spunbond Spinning System

With a spinneret of 0.45mm hole diameter , the viscous polymer solution is transformed into a trickle with a specific cross-section through the micro pores, and solidified by the coagulation medium to form filaments



3200mm PP Spunbond Nonwoven Production Line SMS SMMS SSS  For Diaper 7



Stretching Unit

The stretching device including up stretching and down stretching unit, the function is drawing spinning, flaments into web forming by air.





3200mm PP Spunbond Nonwoven Production Line SMS SMMS SSS  For Diaper 8



Automatic Winding Machine

Effective width:1600/2400/3200 mm Rolling Speed:200-400M/Minute Rolling Diameter:2000 mm Original: CHINA



3200mm PP Spunbond Nonwoven Production Line SMS SMMS SSS  For Diaper 9





Exhibition show with customer



3200mm PP Spunbond Nonwoven Production Line SMS SMMS SSS  For Diaper 10



3200mm PP Spunbond Nonwoven Production Line SMS SMMS SSS  For Diaper 11





Packaging and shipping



Electrical and small parts will numbered put in carton box or wooden box , large machine will wrapping with PE film fixed in container , keep cargo safe .

3200mm PP Spunbond Nonwoven Production Line SMS SMMS SSS  For Diaper 12



3200mm PP Spunbond Nonwoven Production Line SMS SMMS SSS  For Diaper 13



Why choose us?


1. High standard nonwoven machine specification.
2. Free inspection invitation before delivery.
3. your order safe and your money is safe.
4. Free door to door engineering service in 24 month.
5. CE Certification and ISO:9001 management system.





FAQ:


1.How can i know your machine has good quality?
You can visit our company and we will see many machines in China,because we also have many customers from local market.
2.What is the delivery time for nonwoven machines as usual?
We need 3-6 month to make your order.
3.Will you inspect my order before shipping?
We accept SGS inspection service and buyer own inspect it,we will pay all expense for buyer visiting.
4.How is your after-sale service and warranty?
we provide 12 month warranty and free door to door engineering service in the period.
Free spare parts replacement and online technical support.
5.How long time for machine installation?
It takes 60-90 days for machine installation as usual.
