550m/Min 4200mm Nonwoven Production Line Anti Bacterial Health Care

Product Description

alcohol resistancel anti bacterial SMMS SMS SS SSS spunbond meltblown PP polypropylene non woven production line





1.Technical Advantages

1) The whole line is well-structured and easy to operate.
2) The whole line is highly automated.
3) Control elements are of well-know make, high performance and reliable technologies.
4) The whole line are controlled by PLC and operated with touch-screen.

5) The allocation of the main frame and auxiliary equipment can be special designed and adjusted according to customers requirement.



2.Nonwoven Fabric Usage:



1) Medical and health usage:operation suit,garment,face mask,diaper,sanitary napkin,disposable hygiene product.etc;
2) Home decoration:shopping bag,wall covering fabric,table cloth,bed sheet,bedspread.etc;

3) Lining for clothes or shoes:lining,adhesive interlining,shoe lining.etc;

4) Agricultural usage:Protection cover,nursery cover.etc;

3.The Advantage Of 4200MM Nonwoven Fabric Making Machines:

1) High accurate raw material blender for polyproplyene and additives;
2) High capacity extrusion machine with good screw and barrel;
3) High performance melt filtration system;
4) High Speed with high accurate melt pump;
5) Lastest melt flow design and spinning system;
6) Well-know PLC control system and motors;
7) Smart operation program and monitoring syustem;





SMS Feature definition:



•  Softness and stiffness. Fineness, expansibility.
•  Filterability, breathable and waterproof. Flexibility, rigidity.
•  Thin as a cicada and thick as felt. The water is permeable to moisture
•  Filling resistance, wrinkle resistance, good elasticity, high moisture absorption, water repellent.
• Spunbonded non-woven fabric: the polymer extrusion, stretch, form a continuous filament, filament laid into a net, fiber net after self bonding, thermal bonding, chemical bonding or machinery. Method to make the fiber net into non-woven fabric.
• Features: good performance (. Can be used in 150℃ environment for a long time, polyester can be used in 260℃ environment for a long time), aging resistance,. Ultraviolet ray, high elongation, good stability and air permeability, corrosion resistance, sound insulation





Date bases





Process speed	9-320 M/MIN
Model	HHM-PP 1600
Capacity	6-10T / Day (calculation basd on fabric 15 gsm , width at 1600 mm)
Filament Denier	SPunbond :1.5~2.5D Meltblown:1.6~4um
Fabric weight	10~100gsm
Total installed Power(kw)-sms	1299
Actual Power Consumption(KW) SMS	800
Water Consumption(Ton/Day)	0.3
Circulation Water(m3/H)	120
Circulatin water(m3/H)	120
Raw Material	100%polypropylene Granuyle GRade MFI 25-40 For spunbond MFI 800~1600 For Melt Blown
Molecule uniformity Degree(%)	>98%
Melting Point (℃)
ASH	< 0.15-0.25%
Plant Size	35m*18m*12m
Labor Requirement	7 Worker per shift ,2 shifts per 24 hours , totally 14 workers







Process flow:



Feeding(suction,dosing and mixing) →Melt and extruding(with recycle extruder)→Filtering→Metering→Spinning→Quenching→Airdrawing→Forming→Calendering→Winding→Slitting→Product
Installed power: 600KW
Web width: 3200mm
Max. winding diameter: ф1200mm
Annual output: 3000tons (50g/m2)
Single filament titer: ≤2.5 denier
Web weight: 10-200g/m2
Max. mechanical speed: 0-120m/min (Process speed:10-100m/min)
Electric consume: 700KWH(for 1ton product)

Workers and power

Number of workers: 3-4persons
External power supply: 500KVA
Water system: 0.2Mpa



Parts of spunbonded nonwoven fabric production line:

Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter

Spunbonded process and technical flow chart:

Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product



Parts of Melt blown nonwoven fabric production line:

Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter



Melt blown process and technical flow chart:

Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product



1.Parts of spunbonded nonwoven fabric production line:







2.Spunbonded process and technical flow chart:





Parts of spunbonded nonwoven fabric production line:

Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter

Spunbonded process and technical flow chart:

Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product





3.SMS Nonwovens Fabric Mainly Application :

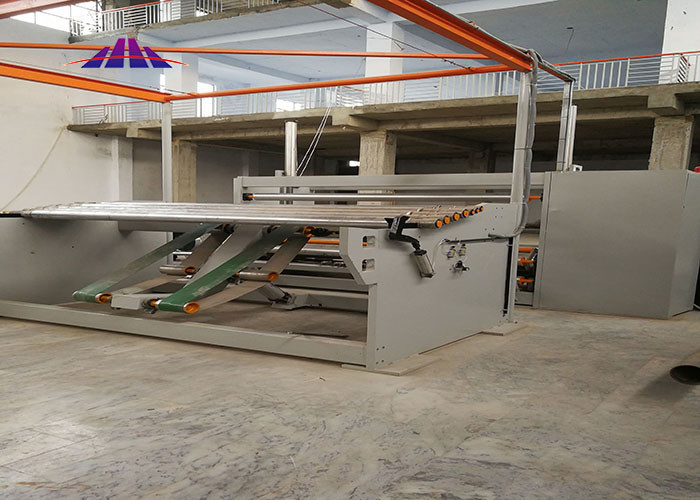

4, Image of our Machine line :







Advanced Equipment









HH Nonwoven Machinery Co., Ltd. is a professional manufacturer of PP bonded nonwoven production line and special application treatment equipment such as hydrophobic, anti alcohol (blood, oil, static electricity, aging, bacteria, ultraviolet), flame retardant, etc. integrating project design, production and sales. Training on processing, installation and operation of PP non-woven production line. The factory has experienced engineers and service teams for many years. It has developed and installed "HH" brand 1.6m, 1.8m, 2.4m, 3.2m to 4.2m and 4.8m PP bonded non-woven fabric production lines. The product models include s, SS, SSS, SMS, SMMs, etc. You can also customize the production line. We have ISO and CE certified export licenses. We have many PP bonded non-woven production lines in China, India, Bangladesh, Turkey, Russia, Vietnam, Indonesia, the United Arab Emirates and other countries. The feedback of each customer is important



Welcome vist us







1. Why choose us?

We are a high-tech enterprise integrating production, processing, sales and after-sales, with a complete and scientific quality management system.We infiltrate each other with unique creative solutions and super technical capabilities, presenting a unique and tailor-made solutions that perfectly suitable for you.



2. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;



3.What can you buy from us?

Spunbond meltblown fabric making manchine line , S SS SSS SMS SMMS SSMMS ,effective width from 1600mm to 4800 mm and non wove machine parts , more over we also have own fabric factory can supply kinds of fabric ,for detail pls contact us .
