China PP Spunbond Nonwoven Production Line manufacturer

Full automatic High Capacity 1600 2400 3200 SMS SMMS PP Spunbond Nonwoven production line

Product Details:
Place of Origin: Chuzhou China
Brand Name: Chuzhou HH non-woven
Certification: CE
Model Number: HHM SMS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wooden case
Delivery Time: 90 - 150 days
Payment Terms: L/C, T/T
Supply Ability: 3 line / months

Detail Information

Goods: Sms Smms Pp Spunbond Nonwoven Production Line Supply Type: Make To Order Manufacture
Key Selling: Easy Operation Technical: Germany Reifenhauser Reicofil 3/4
Material: Polypropylene Granules Denier: Spunbond 1.6 -1.8 D , Meltblown 1.6 - 4 Um
Annual Capacity: 10000 Ton Packing: Wooden Box Put In Container

Product Description

Full automatic High Capacity 1600 2400 3200 SMS SMMS PP Spunbond Nonwoven production line


HH non-woven series spunbond, melt-blown complete set of non-woven cloth machine, combing installation, commissioning and after-sales service. On the basis of continuous innovation and improvement, we can make full use of new technologies and new materials to ensure the stability and reliability of products and constantly meet customer requirements.
Our non-woven fabric manufacturing machine can produce different 10-250GSM high quality spunbond non-woven fabric.
The spinning die head adopts the coat hanger flow model to optimize the design, the melt distribution is uniform, the pressure is balanced, the fiber does not break or combine, there is no hole, no dead Angle, the color transition is fast. The mill adopts dc motor universal joint drive; The roller adopts super laser drilling technology to ensure the same temperature and no burrs during filling. The equipment uses in-line cutting, automatic low winding technology to service resources and improve production efficiency.
Feature Definition:
1. Softness and stiffness. Precision, scalability.
2. Filter, breathable and waterproof. Flexibility, rigidity.
Thin as cicadas and thick as felt. Water is permeable to moisture
4. Filling resistance, wrinkle resistance, good elasticity, high moisture absorption, waterproof.
Spunbond nonwovens: polymers extruded, stretched, formed continuous filament, filament laid into a network, fiber network by self-bonding, thermal bonding, chemical bonding or mechanical bonding. A method of making a fiber net into a nonwoven fabric.
Features: good performance (can be used in 150℃ environment for a long time, polyester can be used in 260℃ environment for a long time), aging resistance,. Uv, high elongation, good stability and permeability, corrosion resistance, sound insulation



Important data at a glance
Voltage
AC380V,50 Hz
GSM RANGE
10-100GSM
MAX SPEED
500m/min
PRODUCTION CAPACITY
5000ton/year
Material
Polypropylene chips (meltblown PP MIF: 1500-1800; Spunbond PP MIF: 28-45)
Product Width
1600mm:10-100gsm
Max. Roll Diameter
1500mm
Power Consumption
≥800kw
Air pressure
0.5-0.8MPa
Cooling water
5m2/h,20℃ or 2.5m2/h,10℃
Equipment Size
35m(L)X 18m(W)X 12m(H)




Spunmelt Composite Nonwovens Mainly Applications
Nonwoven Medical Product Surgical drapes ,Surgeon’s mask ,etc .
Nonwoven Hygiene Product Baby and adult diapers
Work protection product Protctive clothing , breathing masks
Nonwoven Filtration product Protective clothing , breathing masks



working process



1. PREPARE OF RAW MATERIAL

2. LOADING MATERIAL TO HOPPER/DOSING SYSTEM

3. SCREW EXTRUDER FOR MELTING MATERIAL

4. MELTING FILTERIMPURITY; METERING ACCRODING FINISHED WEIGHT

5. SPUNBOND: SPINNING BOX AND SPINNERET; MELTBLOWN HEAD AND SYSTEM

6. COOLING AND STRETCHING SYSTEM

7. WEB LAPPER& CONVEYOR

8. CALENDER IN HIGH TEMPERATURE AND HIGHSPEED; WINDING& SETTING& SLITTING& CUTTING

9. WAREHOUSE FOR FABRIC STORAG

SMS

Effective Width

(mm)

Raw Material

GSM Range

(g/sqm)

Max Speed

(m/min)

Annual Capacity

(Ton / year )

Daily Capacity

( Ton / day )


1600mm Polypropylene(PP)



9-100g

350 3200T 9T
2400mm 5100T 14T
3200mm 7000T 19T
4000mm 8700T 24T

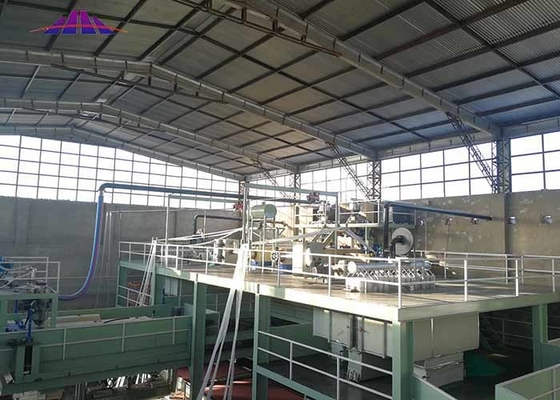

Full automatic High Capacity 1600 2400 3200 SMS SMMS PP Spunbond Nonwoven production line 0

SMS/SMMS/SSMS/SSMMS Model(Filtration Material, Baby Diaper ,Medical Products)

Working width Fabric Consumption Annual output/Year
1600mm 15-250G/㎡ 400KW 3200T
2400mm 15-250G/㎡ 600KW 5100T
3200mm 15-250G/㎡ 800KW 7000T
4000mm 15-250G/㎡ 1000KW 8700T
4800mm 15-250G/㎡ 1200KW 10500T



S Model (Packaging , Agricultural Cover )

Working width Fabric Consumption Annual output/Year
1600mm 9-250G/㎡ 130KW 1800T
2400mm 9-250G/㎡ 180KW 2200T
3200mm 9-250G/㎡ 200KW 3300T
4000mm 9-250G/㎡ 300KW 4400T
4800mm 9-250G/㎡ 400KW 5100T



SS Model ( Baby Diaper ,Medical Products )

Working width Fabric Consumption Annual output/Year
1600mm 9-120G/㎡ 200KW 3700T
2400mm 9-120G/㎡ 2500KW 5100T
3200mm 9-120G/㎡ 200KW 6600T
4000mm 9-120G/㎡ 300KW 8800T
4800mm 9-120G/㎡ 450KW 10000T







Parts of spunbonded nonwoven fabric production line:



Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter



Spunbonded process and technical flow chart:



Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product



Parts of Melt blown nonwoven fabric production line:



Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter



Melt blown process and technical flow chart:



Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product



Full automatic High Capacity 1600 2400 3200 SMS SMMS PP Spunbond Nonwoven production line 1

Full automatic High Capacity 1600 2400 3200 SMS SMMS PP Spunbond Nonwoven production line 2



Raw Material Dosing Machine

Weight system: by weight; Hopper : 4 pcs; Accuracy:0.01%; Feeding Percentage: 1-99%; Original:USA/ITALY;





Full automatic High Capacity 1600 2400 3200 SMS SMMS PP Spunbond Nonwoven production line 3



Meltblown heater

Melting injection cloth heater is an electric heating device installed in a tube insulation container to heat gas and liquid.Melting-blown cloth heater has fast heating speed, good insulation performance and high heating temperature.



Full automatic High Capacity 1600 2400 3200 SMS SMMS PP Spunbond Nonwoven production line 4



Spinning Beam

Model:1600/2400/3200mm; Heating System:Oil/Electricity Heating; Distribution Design: big hanger type; Original:CHINA;

Full automatic High Capacity 1600 2400 3200 SMS SMMS PP Spunbond Nonwoven production line 5

Extrusion Machine

Aperture:90 300kg/h 1pc;

Heating System: electricity heating; Drive Motor: Siemens; Original:CHINA;



Full automatic High Capacity 1600 2400 3200 SMS SMMS PP Spunbond Nonwoven production line 6



Automatic Winding Machine

Effective width:1600/2400/3200 mm Rolling Speed:200-400M/Minute Rolling Diameter:2000 mm Original: CHINA



Full automatic High Capacity 1600 2400 3200 SMS SMMS PP Spunbond Nonwoven production line 7



Production Line Control Cabinet

Voltage: 380 V/3 Phase; Touch Screen:Siemens; PLC: Siemens; Frequency:Siemens; Indicator: RKC,JAPAN; Original:CHINA;



High precisely CNC center hold machining parts beyond customer requirest .



Full automatic High Capacity 1600 2400 3200 SMS SMMS PP Spunbond Nonwoven production line 8



Full automatic High Capacity 1600 2400 3200 SMS SMMS PP Spunbond Nonwoven production line 9



Exhibition show with customer



Full automatic High Capacity 1600 2400 3200 SMS SMMS PP Spunbond Nonwoven production line 10



Full automatic High Capacity 1600 2400 3200 SMS SMMS PP Spunbond Nonwoven production line 11



Shipping and packing



Be Coated with anti-corrosion oil, and covered with plastic film, then packed in wooden box.


Full automatic High Capacity 1600 2400 3200 SMS SMMS PP Spunbond Nonwoven production line 12



Full automatic High Capacity 1600 2400 3200 SMS SMMS PP Spunbond Nonwoven production line 13



FAQ



Q1: What's your warranty policy?
A1: The Seller will guarantee the machine for 18 months since the date of shipment (that is leaving from Seller's factory) or the seller will guarantee the machine for 12 months since the date of starting installation and adjustment, whichever comes first.

Q2: What's your minimum order quantity?
A2: Min order quantity: 1 set or by negotiate with each other.

Q3: What package do you use for the product?
A3: Be Coated with anti-corrosion oil, and covered with plastic film, then packed in wooden box.

Q4: Do you have technical instruction if I buy your product?
A4: Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still cannot be solved, welcome to contact us for help.

Q5: What is your overseas service?
A5: We will provide high quality overseas service, our technical staff will be able to provide you with technical support, for you personally to overseas assembly and test equipment.

Q6: Will you conduct training for our staff here?
A6: Yes, we will provide technology support to factory technology, training for the relative person.

Q7: What are your terms of payment?
A7: We accept T/T.

Q8: How does your factory do regarding quality control?
A8: Quality is priority. We always attach great importance to quality controlling from the beginning. And we have CE certificate.

Q9: How does your factory control the quality?
A9: We have the professional QC group inspect the details in each process. After finishing the goods, our QC will inspect piece by piece.

Q10: I am very satisfied after I read your FAQ, how can I start to purchase my order?
A10: Please click the "send" at the bottom of this page or contact our sales on Trade Mange online!
