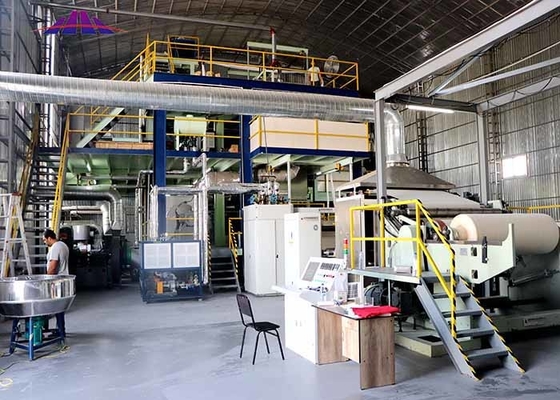

SMS PP Spunbond Nonwoven Production Line 1600mm For Surgical Gown

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : wooden case Delivery Time : 90 - 150 days
Payment Terms : L/C, T/T Supply Ability : 3 line / months
Place of Origin: Chuzhou China Brand Name: Chuzhou HH non-woven
Certification: CE Model Number: HHM SMS

Detail Information

Item: Sms Smms Pp Spunbond Nonwoven Production Line Usage: Surgical Gown ,medical Clothe ,baby Adult Diaper
Key Selling: Cost Effective Payment: TT / LC
Leading Time: 60 - 150 Days Warranty: 365 Days
Daily Output: 28 Ton Port: Shanghai / Nanjing
High Light:

1600mm Spunbond Nonwoven Production Line

,

SMS PP Spunbond Nonwoven Production Line

,

SMS nonwoven textile machinery

Product Description

Surgical Gown SMS pp spunbond Nonwoven Fabric Making Machine production line



SMS spunlaced nonwoven machine
SMS spunbonded nonwovens production line is a nonwovens production line which combines spunbonded and melt blown production technology and adopts three beam structure design. Intelligent electric control box and spinning drafting system are adopted. The system control mode adopts advanced AC frequency conversion speed regulation and all digital synchronous communication.
SMS Spunlaced melt nonwovens are produced for PP / PET / PLA / two-component Spunlaced melt composite nonwovens. After the raw materials are imported, they can be extruded, smelted, filtered, measured, spun, cooled, stretched, netted, thermally bonded, cut, packaged, stored and transported as required.
advantage
The design and manufacture of PP nonwovens meet the personal needs of customers, equivalent to 3 / 4 of reifenhauser reicofil. Therefore, their potential applications are also widely.
PP Nonwoven machinery has the characteristics of less investment, compact structure, small floor area, simple production process, simple operation, labor saving and wide adaptability.
In spunbonded nonwovens, the polymer is transformed into endless filaments by melting and stretching, and then deposited on the metal mesh belt. Converting particles into nonwovens requires only one production step.
We distinguish three different types of spunbonded: one beam, two beam and three beam. The biggest difference is the greater linear speed, so the additional beam provides additional output capacity.

SMS PP Spunbond Nonwoven Production Line 1600mm For Surgical Gown 0



SMS pp Spunbond Non-Woven Production Line consists:



Extruder, filter, Melt pump, spinning box, stretching device, Suction fan, Calender, Winding, Unwinding, slitting device. All can be automatic.

Machine main data:

Raw material:PP, masterbatch, additives.

Final product width:1600mm

FIBER FINENESS: ≤2.2den

Output:330kg/h (according to 15g/square eter,1.6M width)

Fabric weight: 13—150GSM square meter

Line speed:10—550 m/min

Application of spunbond fabricsSpunbond nonwovens are widely used in construction , agriculture, medicine and health , packaging and coverings, disposable commodities clothing, decorative materials, civil engineering, etc.









Important data at a glance
Voltage
AC380V,50 Hz
GSM RANGE
10-100GSM
MAX SPEED
500m/min
PRODUCTION CAPACITY
5000ton/year
Material
Polypropylene chips (meltblown PP MIF: 1500-1800; Spunbond PP MIF: 28-45)
Product Width
1600mm:10-100gsm
Max. Roll Diameter
1500mm
Power Consumption
≥800kw
Air pressure
0.5-0.8MPa
Cooling water
5m2/h,20℃ or 2.5m2/h,10℃
Equipment Size
35m(L)X 18m(W)X 12m(H)




Spunmelt Composite Nonwovens Mainly Applications
Nonwoven Medical Product Surgical drapes ,Surgeon’s mask ,etc .
Nonwoven Hygiene Product Baby and adult diapers
Work protection product Protctive clothing , breathing masks
Nonwoven Filtration product Protective clothing , breathing masks



working process



1. PREPARE OF RAW MATERIAL

2. LOADING MATERIAL TO HOPPER/DOSING SYSTEM

3. SCREW EXTRUDER FOR MELTING MATERIAL

4. MELTING FILTERIMPURITY; METERING ACCRODING FINISHED WEIGHT

5. SPUNBOND: SPINNING BOX AND SPINNERET; MELTBLOWN HEAD AND SYSTEM

6. COOLING AND STRETCHING SYSTEM

7. WEB LAPPER& CONVEYOR

8. CALENDER IN HIGH TEMPERATURE AND HIGHSPEED; WINDING& SETTING& SLITTING& CUTTING

9. WAREHOUSE FOR FABRIC STORAG

SMS

Effective Width

(mm)

Raw Material

GSM Range

(g/sqm)

Max Speed

(m/min)

Annual Capacity

(Ton / year )

Daily Capacity

( Ton / day )


1600mm Polypropylene(PP)



9-100g

350 3200T 9T
2400mm 5100T 14T
3200mm 7000T 19T
4000mm 8700T 24T





SMS/SMMS/SSMS/SSMMS Model(Filtration Material, Baby Diaper ,Medical Products)

Working width Fabric Consumption Annual output/Year
1600mm 15-250G/㎡ 400KW 3200T
2400mm 15-250G/㎡ 600KW 5100T
3200mm 15-250G/㎡ 800KW 7000T
4000mm 15-250G/㎡ 1000KW 8700T
4800mm 15-250G/㎡ 1200KW 10500T



S Model (Packaging , Agricultural Cover )

Working width Fabric Consumption Annual output/Year
1600mm 9-250G/㎡ 130KW 1800T
2400mm 9-250G/㎡ 180KW 2200T
3200mm 9-250G/㎡ 200KW 3300T
4000mm 9-250G/㎡ 300KW 4400T
4800mm 9-250G/㎡ 400KW 5100T



SS Model ( Baby Diaper ,Medical Products )

Working width Fabric Consumption Annual output/Year
1600mm 9-120G/㎡ 200KW 3700T
2400mm 9-120G/㎡ 2500KW 5100T
3200mm 9-120G/㎡ 200KW 6600T
4000mm 9-120G/㎡ 300KW 8800T
4800mm 9-120G/㎡ 450KW 10000T

SMS PP Spunbond Nonwoven Production Line 1600mm For Surgical Gown 1





Parts of spunbonded nonwoven fabric production line:



Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter



Spunbonded process and technical flow chart:



Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product



Parts of Melt blown nonwoven fabric production line:



Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter



Melt blown process and technical flow chart:



Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product



SMS PP Spunbond Nonwoven Production Line 1600mm For Surgical Gown 2

SMS PP Spunbond Nonwoven Production Line 1600mm For Surgical Gown 3



Raw Material Dosing Machine

Weight system: by weight; Hopper : 4 pcs; Accuracy:0.01%; Feeding Percentage: 1-99%; Original:USA/ITALY;





SMS PP Spunbond Nonwoven Production Line 1600mm For Surgical Gown 4



Meltblown heater

Melting injection cloth heater is an electric heating device installed in a tube insulation container to heat gas and liquid.Melting-blown cloth heater has fast heating speed, good insulation performance and high heating temperature.



SMS PP Spunbond Nonwoven Production Line 1600mm For Surgical Gown 5



Spinning Beam

Model:1600/2400/3200mm; Heating System:Oil/Electricity Heating; Distribution Design: big hanger type; Original:CHINA;

SMS PP Spunbond Nonwoven Production Line 1600mm For Surgical Gown 6

Extrusion Machine

Aperture:90 300kg/h 1pc;

Heating System: electricity heating; Drive Motor: Siemens; Original:CHINA;



SMS PP Spunbond Nonwoven Production Line 1600mm For Surgical Gown 7



Automatic Winding Machine

Effective width:1600/2400/3200 mm Rolling Speed:200-400M/Minute Rolling Diameter:2000 mm Original: CHINA



SMS PP Spunbond Nonwoven Production Line 1600mm For Surgical Gown 8



Production Line Control Cabinet

Voltage: 380 V/3 Phase; Touch Screen:Siemens; PLC: Siemens; Frequency:Siemens; Indicator: RKC,JAPAN; Original:CHINA;



High precisely CNC center hold machining parts beyond customer requirest .



SMS PP Spunbond Nonwoven Production Line 1600mm For Surgical Gown 9



SMS PP Spunbond Nonwoven Production Line 1600mm For Surgical Gown 10



Exhibition show with customer



SMS PP Spunbond Nonwoven Production Line 1600mm For Surgical Gown 11



SMS PP Spunbond Nonwoven Production Line 1600mm For Surgical Gown 12



Shipping and packing



Be Coated with anti-corrosion oil, and covered with plastic film, then packed in wooden box.


SMS PP Spunbond Nonwoven Production Line 1600mm For Surgical Gown 13



SMS PP Spunbond Nonwoven Production Line 1600mm For Surgical Gown 14



FAQ



Q1: What's your warranty policy?
A1: The Seller will guarantee the machine for 18 months since the date of shipment (that is leaving from Seller's factory) or the seller will guarantee the machine for 12 months since the date of starting installation and adjustment, whichever comes first.

Q2: What's your minimum order quantity?
A2: Min order quantity: 1 set or by negotiate with each other.

Q3: What package do you use for the product?
A3: Be Coated with anti-corrosion oil, and covered with plastic film, then packed in wooden box.

Q4: Do you have technical instruction if I buy your product?
A4: Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still cannot be solved, welcome to contact us for help.

Q5: What is your overseas service?
A5: We will provide high quality overseas service, our technical staff will be able to provide you with technical support, for you personally to overseas assembly and test equipment.

Q6: Will you conduct training for our staff here?
A6: Yes, we will provide technology support to factory technology, training for the relative person.

Q7: What are your terms of payment?
A7: We accept T/T.

Q8: How does your factory do regarding quality control?
A8: Quality is priority. We always attach great importance to quality controlling from the beginning. And we have CE certificate.

Q9: How does your factory control the quality?
A9: We have the professional QC group inspect the details in each process. After finishing the goods, our QC will inspect piece by piece.

Q10: I am very satisfied after I read your FAQ, how can I start to purchase my order?
A10: Please click the "send" at the bottom of this page or contact our sales on Trade Mange online!
