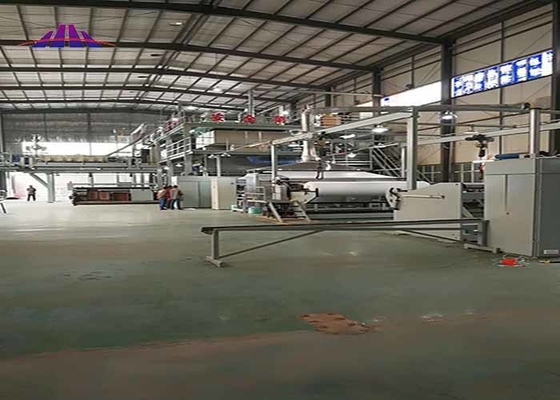

SMS PP Spunbond Nonwoven Production Line Flexible Design 3200mm

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : wood box packaged , machine wrapping with PE film keep cargo safe Delivery Time : For detailed talk
Payment Terms : L/C, T/T Supply Ability : For detailed talk
Place of Origin: Chuzhou China Brand Name: Chuzhou HH non-woven
Certification: CE Model Number: HHM SMS

Detail Information

Cargo: SMS 3.2 M PP Spunbond Nonwoven Production Line Width: 3200 Mm
Machine Size: 45*25*12 M Transformer: 1600 Kva
Advantage: Flexibility Design Daily: 20 Ton / Day
Certificate: CE ISO 900 Original: Chuzhou China
High Light:

PP Spunbond Nonwoven Production Line

,

3200MM PP Spunbond Nonwoven Production Line

,

3200MM Nonwoven Fabric Making Line

Product Description



3200MM Sms PP Spunbond Nonwoven Fabric Making Machine Production Line From China



Product Details



SMS / SMMs / ssmms PP spunbonded nonwoven production line
SMS / SMMs / ssmms PP spunlaced nonwoven production line
Model: SMS / SMMs / SSMS / ssmms / sssmms
Size: 1600mm / 2400mm / 3200mm
Speed: 0 - 600 m / min
Gsm: 10 - 80 g
Filament D: 1.4-1.7d and 1.8-2.2d
Scope of application: health care
The equipment uses polypropylene (PP) as raw material to produce nonwovens. It adopts negative pressure air suction net technology and PP spunbonded nonwovens. The products have the characteristics of uniform coverage, high strength, good air permeability and good hand feeling. It is widely used in medical care, protective articles, home, hotel accessories, beauty disposable products, agricultural tools, clothing packaging, construction and other fields.
Main applications of melt blown nonwovens:
Non woven sanitary products: infant health, female health, urinary incontinence products, sanitary napkins, adsorbents, control adsorbent functional inserts
Non woven absorbent products: absorbent cloth, rag, oil absorbing medium, liquid (benzene, water, blood)



3200 SMS Model

Effective Width 3200mm
Weight Range 9 - 100 g / ㎡
Out put daily 12 - 20 ton
Machine speed ≦ 350 m / min
Transformer ≈ 1600 KVA
Power Consumption 1300º - 1600 º / Ton
Machine Size 45 *25 * 12 M



Spunbonded Nowovens Maily Applications
Nonwoven Hygiene Product Cleaning wipes:Baby care , cosmetics ,etc.Baby and adult diapers:Top sheets , back sheets ,ears, tapes, landing zone;Female hygiene:Wings ,Top sheets
Nonwoven Medical Product Surgeon’s mask ,disposable garments ,Surgeon’s Cap,surgical drapes ,surgical sheet ,shoe covers , etc
Nonwoven packaging Product Shopping bag ,rice backaging ,tea bag ,clothes packaging, etc.



SMS PP Spunbond Nonwoven Production Line Flexible Design 3200mm 0





Machine Model Reifenhauser Reicofil 3/4,Spunbond lines, spun-melt lins S, SS,SSS, SXS,SXXS,SMMS ,SMS ,SSMMS
Machine Size 18m-60m(L)*10m-31m(W)*10m-12m(H)
Raw Material required

PP(polypropylene),additives

MFI/MFR:25-40g/10min(spunbonding process)

MFI/MFR:800-2000g/10min (Melt-blowning process)

Effective width 1600mm,2400mm,3200mm,4000mm,4800mm customizable width by requirements
Max Speed 150m/mn-550m/min
Transformer&Power consumption

Transformer require:200KVA-3000KVA

Power consumption :500KWH/Ton-1400KWH/Ton

Output per year 1500 Tons - 10000 Tons
Products GSM 8gsm-250 gsm
Applications of products

Industrial:Shopping bags, furniture ,agriculture ,packageing,etc

Medical:Surgical gown /cap /sheet /mask ,etc

Hygiene: Diapers ,sanitary ,napking , etc.



SMS

Effective Width

(mm)

Raw Material

GSM Range

(g/sqm)

Max Speed

(m/min)

Annual Capacity

(Ton / year )

Daily Capacity

( Ton / day )


1600mm Polypropylene(PP)



9-100g

350 3200T 9T
2400mm 5100T 14T
3200mm 7000T 19T
4000mm 8700T 24T



SMMS Model



Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈1500KVA 1700º-1900º/Ton 4000T
2400mm 9-100G/㎡ ≈1600KVA 1700º-1900º/Ton 6200T
3200mm 9-100G/㎡ ≈2200KVA 1700º-1900º/Ton 8400T
4000mm 9-100G/㎡ ≈2500KVA 1700º-1900º/Ton 10500T
4800mm 9-100G/㎡ ≈2630KVA 1700º-1900º/Ton 12700T



Parts of spunbonded nonwoven fabric production line:



Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter

Spunbonded process and technical flow chart:

Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product



Parts of Melt blown nonwoven fabric production line:



Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter



Melt blown process and technical flow chart:

Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product





SMS PP Spunbond Nonwoven Production Line Flexible Design 3200mm 1



SMS PP Spunbond Nonwoven Production Line Flexible Design 3200mm 2



SMS PP Spunbond Nonwoven Production Line Flexible Design 3200mm 3







Payment & Shipping Terms:



Minimum Order Quantity: 1SET
Delivery Time: 150Days
Payment Terms: T/T,L/C,D/P
Supply Ability: 50 sets per year
Port FOB Shanghai or Nanjing





Main Component



Suction amchine and color matching machine are mainly used to extract pp material and its dyeing

Metering pump is used to control the output by calculating the amount of pp material

Screw extruder is to heat PP material and extrude raw material

Spinning box ,is one of most import parts of the non-woven fabric manufacturing machine. PP material through the spinning box is spun into countless strands of silk .

Filter to filter the melted PP raw material and remove impurities

The silk thread is spun through this box to achieve temperature control and constant temperature .





SMS PP Spunbond Nonwoven Production Line Flexible Design 3200mm 4



Name: Spinning Box

Orifice number:11019 for 1.6m , 17651 for 3.2m

Orifice diameter:Φ0.45mm

L/D=4:1

Max temperature:300℃



Fuction : for spining the PP flament.



Name Spinning box
Orifice number 1109 for 1.6 m , 17651 for 3.2 m
Orifice diameter ¢0.45mm L/D 4 : 1
Max temperature 300℃
Fuction For spinning the PP flow





SMS PP Spunbond Nonwoven Production Line Flexible Design 3200mm 5



Name:Main Extruder
Brand:HHM
Original:China
Diameter:Φ135mm for 1.6m,Φ170mm for 3.2m,

Max speed: 75r/min for 1.6m , 85r/min for 3.2m

Motor:90kw for 1.6m , 132kw for 3.2m

SMS PP Spunbond Nonwoven Production Line Flexible Design 3200mm 6





SMS PP Spunbond Nonwoven Production Line Flexible Design 3200mm 7











Exhibition Show





SMS PP Spunbond Nonwoven Production Line Flexible Design 3200mm 8



SMS PP Spunbond Nonwoven Production Line Flexible Design 3200mm 9



High precisely CNC



SMS PP Spunbond Nonwoven Production Line Flexible Design 3200mm 10

SMS PP Spunbond Nonwoven Production Line Flexible Design 3200mm 11







Packaging Details



NUDE PACKING , WOODEN CASE IS OPTIONAL. CASE PACKING:CARDING MACHINE, LAPPER AND ELECTRIC BOXES WOODEN CASE PACKAGED.

OTHER MACHINES NUDE PACKAGING.









SMS PP Spunbond Nonwoven Production Line Flexible Design 3200mm 12



SMS PP Spunbond Nonwoven Production Line Flexible Design 3200mm 13





FAQ
1.Q:I already have one factory but there is a little difference in the size,for example the height can't meet 13m,only 12m?
A:Don't be worry. Your machine could be customized.

2.Q:How to make sure your machine's quality?how about the service?
A:Each machine gets ISO9001:2008,CE, SGS. And warranty is one year. you can enjoy the service within production lifetime.

3.Q:How can I get right machine for myself, if I have no ideal about it?
A:Tell me what kind of fabric that you want, how much you want to produce and your factory szie etc. We will design for you.
