High Capacity Non Woven Fabric Machine 1600mm 2400mm 3200mm

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : wooden case Delivery Time : For detailed talk
Payment Terms : L/C, T/T Supply Ability : For detailed talk
Place of Origin: Chuzhou China Brand Name: Chuzhou HH non-woven
Certification: CE Model Number: 2.4 sms

Detail Information

Cargo: 3.2 2.4 Sms Pp Spunbond Nonwoven Production Line Gsm: 8- 100 G
Method: Meltblown & Spunbond Width: 3200 2400 Mm
Speed: 600 M / Min Annual Output: 5000 - 15000 Ton
Brand: HHM Core Component: Engine PLC Gear Box
High Light:

2400mm Non Woven Fabric Printing Machine

,

1600mm Non Woven Fabric Machine

,

3200mm non woven roll making machine

Product Description

alcohol resistance SMS SMMS medical doctor gown protection cloths PP spunbond nonwoven production line



HHM SMS SMMs ssmms series PP spunbonded nonwovens production line takes polypropylene particles as raw materials to produce PP spunbonded nonwovens or melt blown nonwovens online.
1. This production line is a full-automatic PP non-woven production line, starting from PP feeding - heating-2. extrusion-filtration-spinning-filament drafting-fiber forming-embossing-winding-slitting.
The production line is a full-automatic PP non-woven production line, which adopts intelligent programming control and high-quality PLC control system. The whole machine has the advantages of simple operation and convenient maintenance.
3. The production line adopts Baiwang / AEC gravity PP feeder, MAG spinning pump, enka spinneret, Custer embossing calender, carrier cooling system, Siemens motor / PLC and other well-known parts / equipment.

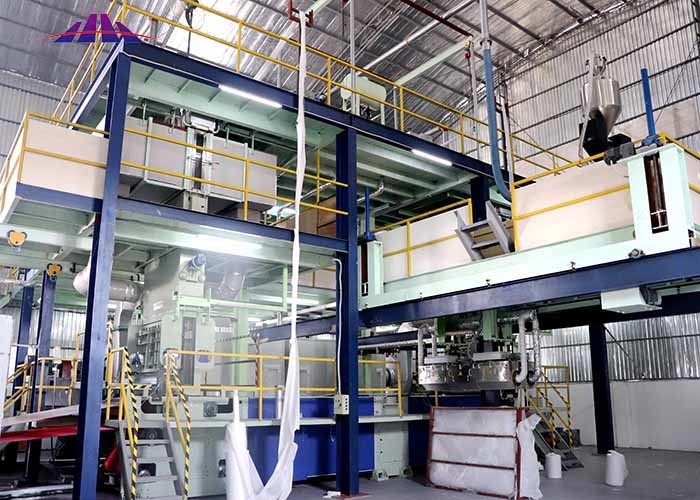

High Capacity Non Woven Fabric Machine 1600mm 2400mm 3200mm 0



Mechanical part:
1. Name: extruder
Model: φ 130/150/170
Heating system: electric heating
Drive motor: Siemens
Original: China
2. Name: raw material feeder
Weight system: calculated by weight
Hopper: 4 pieces
Accuracy: 0.01%
Feeding ratio: 1 - 99%
Original: USA / Italy
3. Name: candle filter
Model: CPF - Pt - 3.5 C
Filtering area: 3.5 M2
Capacity: 650 kg / h
Filter box: 2 (online switching)
Original: China
4. Name: spinning pump
Model: 200 / 250 / 300cc
Capacity: 300 - 450 kg / h
Speed: 40 rpm
Drive motor: Siemens
Original: China / Germany
5. Name: rotating beam
Model: 1600 / 2400 / 3200mm
Heating system: Oil / electric heating
Power distribution design: large hanger type
Original: China
6. Name: spinneret
Spinneret width: 256 mm
Borehole diameter: 0.45mm
Number of holes: 12350 - 24500 PC
Material: sus431
Original: China / Germany
7. Name: upper / lower drafting unit
Effective width: 1600 / 2400 / 3200mm
Fiber fineness: 1.6-2.4 opponents
Original: China
8. Name: melt blown tow
Model: 1600 / 2400 / 3200mm
Material: sus630
Spinneret hole: 0.32-0.35mm
Fabric weight: 2 - 200g
Original: Germany and Japan
9. Name: embossing calender
Relief pattern: ovel / diamond / Sesame dot
Embossing roller diameter: 450-520mm
Linear pressure: 30 - 125N / mm
Original: China / Germany
10. Name: automatic winding machine
Effective width: 1600 / 2400 / 3200mm
Rolling speed: 200 - 400m / min
Rolling diameter: 2000 mm
Original: China
11. Name: automatic slotting machine
Speed: 600 - 800 m / min
minute. Slotting width: 80mm
Max. Rolling size: 1500 mm diameter
Automatic tension control: Online
Auto meter counting: Online
Original: China
12. Name: production line control cabinet
Voltage: 380V / 3 phases
Touch screen: Siemens
Company: Siemens
Frequency: Siemens
Indicators: RKC, Japan
Original: China



HHM SMMS DATA SHEET

Model Effective Width Weight Range Output per day Machine speed Tranformer Power consumption Machine Size
HHM-1.6SMMS 1.6M 9-100G/M2 7-12Ton ≦450m/min ≈1500KVA 1700º-1900º/Ton 55M*20M*12M
HHM-2.4SMMS 2.4M 9-100G/M2 10-18Ton ≦450m/min ≈1600KVA 1700º-1900º/Ton 55M*23M*12M
HHM-3.2SMMS 3.2M 9-100G/M2 14-24Ton ≦450m/min ≈2200KVA 1700º-1900º/Ton 55M*25M*12M
HHM-4.0SMMS 4.0M 9-100G/M2 17-30Ton ≦450m/min ≈2500KVA 1700º-1900º/Ton 55M*28M*12M
HHM-4.8SMMS 4.8M 9-100G/M2 23-36Ton ≦450m/min ≈200+630KVA 1700º-1900º/Ton 55M*31M*12M



Process speed 9-550 M/MIN
Model HHM-PP 1600
Capacity 6-10T / Day (calculation basd on fabric 15 gsm , width at 1600 mm)
Filament Denier SPunbond :1.5~2.5D Meltblown:1.6~4um
Fabric weight 10~100gsm

Total installed

Power(kw)-sms

1299

Actual Power

Consumption(KW) SMS

800

Water

Consumption(Ton/Day)

0.3
Circulation Water(m3/H) 120
Circulatin water(m3/H) 120
Raw Material

100%polypropylene Granuyle GRade MFI 25-40 For spunbond

MFI 800~1600 For Melt Blown

Molecule uniformity

Degree(%)

>98%
Melting Point (℃)
ASH < 0.15-0.25%
Plant Size 35m*18m*12m
Labor Requirement 7 Worker per shift ,2 shifts per 24 hours , totally 14 workers .



SMS nonwoven fabric



G / ㎡ 17 30 60
MD N / 5 cm ≧23 ≧40 ≧81
CD N / 5 cm ≧11 ≧22 ≧45
MD Elongatin % ≧30 ≧30 ≧30
CD Elongatin % ≧30 ≧30 ≧30
Hydro-static pressure resistance mm H2o ≧110 ≧200 ≧300



SMS Model

Effective Width

(mm)

Raw Material

GSM Range

(g/sqm)

Max Speed

(m/min)

Annual Capacity

(Ton / year )

Daily Capacity

( Ton / day )


1600mm Polypropylene(PP)



9-100g

350 3200T 9T
2400mm 5100T 14T
3200mm 7000T 19T
4000mm 8700T 24T



SMMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈1500KVA 1700º-1900º/Ton 4000T
2400mm 9-100G/㎡ ≈1600KVA 1700º-1900º/Ton 6200T
3200mm 9-100G/㎡ ≈2200KVA 1700º-1900º/Ton 8400T
4000mm 9-100G/㎡ ≈2500KVA 1700º-1900º/Ton 10500T
4800mm 9-100G/㎡ ≈2630KVA 1700º-1900º/Ton 12700T





Spunmelt Composite Nonwovens Mainly Applications
Nonwoven Medical Product Surgical drapes ,Surgeon’s mask ,etc .
Nonwoven Hygiene Product Baby and adult diapers
Work protection product Protctive clothing , breathing masks
Nonwoven Filtration product Protective clothing , breathing masks



Parts of spunbonded nonwoven fabric production line:



Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter



Spunbonded process and technical flow chart:



Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product



Parts of Melt blown nonwoven fabric production line:



Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter



Melt blown process and technical flow chart:



Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product



High Capacity Non Woven Fabric Machine 1600mm 2400mm 3200mm 1





Manin parts of SMS system



High Capacity Non Woven Fabric Machine 1600mm 2400mm 3200mm 2

Maximum temperature 300 ℃
Max. Output 200 kg / h
Heating zone 8 tod
Perforated length 3,350 mm
HPI 40
Number of holes 5,276
1 Set L/D 10
Capillary diameter 0.3mm
Capillary length 3,600mm



High Capacity Non Woven Fabric Machine 1600mm 2400mm 3200mm 3



winder & Winder The main function for a large package of cloth cutting according to customer specifications, to meet the customer's length, width, volume weight requirements. machine is used to have made the non woven finished products into the packaging equipment .

High Capacity Non Woven Fabric Machine 1600mm 2400mm 3200mm 4



Two cooling blower for each other pressure gauges, pressure switches, air channel transfer baffles, air oil and water filter separators, cooling fan control cabinet and so on. Two cooling fans share a control cabinet to automatically control the start and stop of the two typhoon machines. The cooling wind can be taken directly from the air or from the outlet of the fan.





Precisely CNC center make sure machine parts meet customer request .



High Capacity Non Woven Fabric Machine 1600mm 2400mm 3200mm 5High Capacity Non Woven Fabric Machine 1600mm 2400mm 3200mm 6





Exhibition Show



High Capacity Non Woven Fabric Machine 1600mm 2400mm 3200mm 7



High Capacity Non Woven Fabric Machine 1600mm 2400mm 3200mm 8



Packing & shipping



eletrical parts , small machine parts put in wooden or carton box , eaach box nembered .

huge machine with PE film wrapping several turns fixed in container keep cargo safe.



High Capacity Non Woven Fabric Machine 1600mm 2400mm 3200mm 9
