China PP Spunbond Nonwoven Production Line manufacturer

45T Multifunctional Non Woven Fabric Making Line Single Beam

Product Details:
Place of Origin: Chuzhou China
Brand Name: Chuzhou HH non-woven
Certification: CE
Model Number: HHM - S SS SSS SMS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: components wood box packaged , machine wrapping with PE film keep cargo safe
Delivery Time: 90 - 150 days
Payment Terms: L/C, T/T
Supply Ability: 3 line / months

Detail Information

Cargo Product: S Nonwoven Fabric Making Line Technical: S Single Beam
Number Of Dia: One Application: Agriculture Cover Bag, Packaging , Textile
Warranty After: Engineer Over Sea Or On Line Video Gsm: 250 G
Out Put Daily: 45 T HS Code: 844900900
High Light:

Multifunctional Non Woven Fabric Making Line

,

45T Non Woven Fabric Making Line

,

45T non woven fabric production line

Product Description

Free Shipping Durable S Spunbond Nonwoven Fabric Making Machine Production Lines Manufacturing Equipment Single Beam Sustainably



Advantages of S spunbond nonwovens production line:
S spunbond nonwovens line is much simpler in structure and operation than SS or SSS line. Even if the
Therefore, S spunbond nonwovens production line also has the characteristics of less investment, small footprint, labor saving and high cost
Mass production and so on.
S spunbond nonwovens production line adopts the world's advanced well-known brand pneumatic components, electrical components, mechanical components
Operating parts.
S spunbond nonwovens production line adopts automatic, intelligent manufacturing, to help customers save labor costs. And S
Spunbond nonwovens production line is completely green to the environment, completely free of pollution.
S spunbond nonwovens production line is designed to be able to recycle waste, thus realizing the need to save material costs
Customer service.

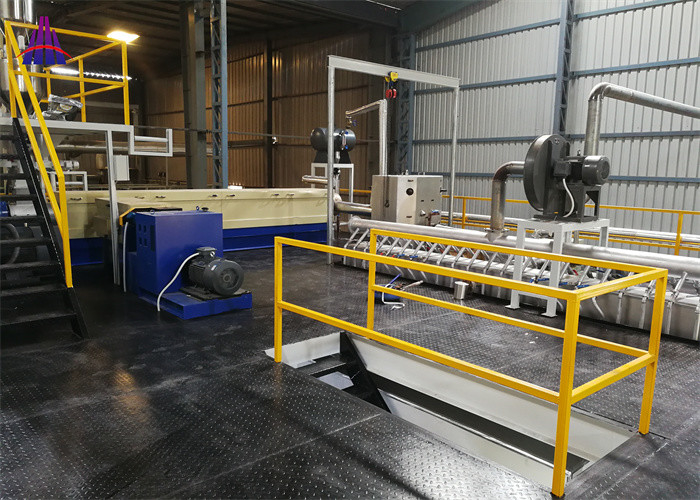

45T Multifunctional Non Woven Fabric Making Line Single Beam 0


S Model (Packaging , Agricultural Cover )

Working width Fabric Consumption Annual output/Year
1600mm 9-250G/㎡ 130KW 1800T
2400mm 9-250G/㎡ 180KW 2200T
3200mm 9-250G/㎡ 200KW 3300T
4000mm 9-250G/㎡ 300KW 4400T
4800mm 9-250G/㎡ 400KW 5100T
FEATURES AT A GLANCE
HIGHT CAPACITY
HIGHT QUALITY
ECONOMICALLY
RELIABLY
SUSTAINABLY
AUTOMATIC
MULTIFUNCTION

1 Production line capacity 11 t/day (output calculation is based on product fabric weighted at 50 gsm)
2 Width 3200mm
3 Machine speed 9~200m/min
4 Process speed 9~150m/min
5 Filament denier 1.8~2.0D
6 Fabric weight 9~200gsm
7 Raw material 100% polypropylene granule fiber grade, MFI 25~35 for SPUNBOND, MFI 1600~1800 for MELTBLOWN



MODEL UNIT HH-S1600 HH-S2400 HH-S3200 HH-S4200
Effective Fabric Width mm 1600 2400 3200 4200
Original Fabric Width mm 1850 2650 3510 4510
Daily Capacity (based on 30gsm) ton 4 7 10 12
Max Diameter of Fabric In Roll mm 1200 2000 2000 2000
Monofiilament Fineness denier 1.5~2.0 1.5~2.0 1.5~2.0 1.5~2.0
GSM of Fabric g/m2 10~200 8~150 10~150 10~150
Max Production Speed m/min 150 150 150 150
Process Production Speed m/min 15~150 15~150 15~150 15~150
Total Installation Power kw 380 450 500 550
Machiney Dimension(L*W*H) meter 15*8*11 15*12*11 15*14*11 15*16*11
Installation Site Iimension(L*W*H) meter 21*15*12 21*17*12 21*19*12 21*22*12
Total Net Weight Of Machine(appox) ton 68 75 85 95



Non woven fabric making system show







45T Multifunctional Non Woven Fabric Making Line Single Beam 1



HHM 1600 m SS Double beam fabric making line date

Width 1600 M
Gsm 9 - 120 gsm
Output per day 8 - 10.5 Ton
Machine Speed ≦ 350 m / min
Transformer ≈ 400 KVA
Power Consumption 650º - 800º / Ton
Machine Size 45 * 15 *12 M

The Non woven fabric making is really good business , for example like 1.6 M spunbond fabric making line will got profit annual as below ,
(commodity price base in Chian market ).

Type HHM S 1.6 Fabric Making line , Output Daily :6 Ton
Items Cost USD/ton Cost /year
Polypropylene PP Chips $1,400 $3,066,000
Electrictity Power $90 $197,100
Laborer $32 $70,080
Machine Parts consumption $3 $6,570
Total   $3,339,750
Non woven Fabric price $1,881 $4,119,390
Return per year   $779,640


HHM 1600 m SS Double beam fabric making line date

Width 1600 M
Gsm 9 - 120 gsm
Output per day 8 - 10.5 Ton
Machine Speed ≦ 350 m / min
Transformer ≈ 400 KVA
Power Consumption 650º - 800º / Ton
Machine Size 45 * 15 *12 M




Item/annual/width 1600mm 2400mm 3200mm
S 1500 T / year 2200 T / year 3000 T / year
SS 2100 - 2700 T / year 2400 - 3600 T / year 3000 - 4500 T / year
SMS 2400 - 300 T / year 2700 - 4200 T / year 3000 - 4800 T / year



Machine Model Reifenhauser Reicofil 3/4,Spunbond lines, spun-melt lins S, SS,SSS, SXS,SXXS,SMMS ,SMS ,SSMMS
Machine Size 18m-60m(L)*10m-31m(W)*10m-12m(H)
Raw Material required

PP(polypropylene),additives

MFI/MFR:25-40g/10min(spunbonding process)

MFI/MFR:800-2000g/10min (Melt-blowning process)

Effective width 1600mm,2400mm,3200mm,4000mm,4800mm customizable width by requirements
Max Speed 150m/mn-550m/min
Transformer&Power consumption

Transformer require:200KVA-3000KVA

Power consumption :500KWH/Ton-1400KWH/Ton

Output per year 1500 Tons - 10000 Tons
Products GSM 8gsm-250 gsm
Applications of products

Industrial:Shopping bags, furniture ,agriculture ,packageing,etc

Medical:Surgical gown /cap /sheet /mask ,etc

Hygiene: Diapers ,sanitary ,napking , etc.



SS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-120G/㎡ ≈400KVA 650º-800º/Ton 3700T
2400mm 9-120G/㎡ ≈500KVA 650º-800º/Ton 5100T
3200mm 9-120G/㎡ ≈800KVA 650º-800º/Ton 6600T
4000mm 9-120G/㎡ ≈1000KVA 650º-800º/Ton 8800T
4800mm 9-120G/㎡ ≈1200KVA 650º-800º/Ton 10000T



SSS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈630KVA 650º-800º/Ton 5800T
2400mm 9-100G/㎡ ≈1000KVA 650º-800º/Ton 7300T
3200mm 9-100G/㎡ ≈1250KVA 650º-800º/Ton 10000T
4000mm 9-100G/㎡ ≈1500KVA 650º-800º/Ton 12400T
4800mm 9-100G/㎡ ≈1800KVA 650º-800º/Ton 14000T



M Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 15-300G/㎡ ≈600KVA 3000º-3500º/Ton 800T
2400mm 15-300G/㎡ ≈800KVA 3000º-3500º/Ton 1100T
3200mm 15-300G/㎡ ≈1000KVA 3000º-3500º/Ton 1500T



SMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈800KVA 1300º-1600º/Ton 3200T
2400mm 9-100G/㎡ ≈1250KVA 1300º-1600º/Ton 5100T
3200mm 9-100G/㎡ ≈1600KVA 1300º-1600º/Ton 7000T
4000mm 9-100G/㎡ ≈2000KVA 1300º-1600º/Ton 8700T
4800mm 9-100G/㎡ ≈2250KVA 1300º-1600º/Ton 10500T

SMMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈1500KVA 1700º-1900º/Ton 4000T
2400mm 9-100G/㎡ ≈1600KVA 1700º-1900º/Ton 6200T
3200mm 9-100G/㎡ ≈2200KVA 1700º-1900º/Ton 8400T
4000mm 9-100G/㎡ ≈2500KVA 1700º-1900º/Ton 10500T
4800mm 9-100G/㎡ ≈2630KVA 1700º-1900º/Ton 12700T


Description Of Non-woven Machine



1) Parts of spunbonded nonwoven fabric production line:
Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter
2) Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)---->Raw material----> Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
Web forming---->Calendering---->Winding----> Cutting---->Final product



45T Multifunctional Non Woven Fabric Making Line Single Beam 2

"X" mean position for future





Main parts of non woven system



45T Multifunctional Non Woven Fabric Making Line Single Beam 3



Suction amchine and color matching machine are mainly used to extract pp material and its dyeing

Metering pump is used to control the output by calculating the amount of pp material

Screw extruder is to heat PP material and extrude raw material

Spinning box ,is one of most import parts of the non-woven fabric manufacturing machine. PP material through the spinning box is spun into countless strands of silk .

Filter to filter the melted PP raw material and remove impurities

The silk thread is spun through this box to achieve temperature control and constant temperature .

Draft divice , including up draft and down draft .spinning allows the thread to reach the right thickness through preciss drafting devices.

Calandr where the yarn is spun to form the rudiments of nonwoven fabric .the calander is very large .

Winder machine is used to have made the non woven finished products into the packaging equipment .



Precisely CNC center make sure machining parts beyond customer required



45T Multifunctional Non Woven Fabric Making Line Single Beam 4





45T Multifunctional Non Woven Fabric Making Line Single Beam 5



Exhibiton show , customer satisfaction is our top priority



45T Multifunctional Non Woven Fabric Making Line Single Beam 6





45T Multifunctional Non Woven Fabric Making Line Single Beam 7





Package and delivery



electrical parts and small parts each will numbered in carton or wooden box , large machine will wrapping with PE film fixed in container keep cargo safe . For the steel structure they will be packed in bulk into containers.



45T Multifunctional Non Woven Fabric Making Line Single Beam 8



45T Multifunctional Non Woven Fabric Making Line Single Beam 9





1.Why should customer choose HHM as supplier?What are your advantages?



1). Are you professional?
We are the professional factory and have been focusing only on spunbond and meltblown nonwoven machines.
2). How long are your history?
Our first machine was produced in 2005 in jIANSHAN factory. Our Chuzhou factory was established in 2018. Our first oversea project was in 2010.
3). What is your machines capacity?
Our spunbond machine has about 30-40% higher capacity than most other common suppliers.
4). Are your technology advanced?
We have upgraded to the 5th generation technology (other suppliers are still the 3rd generation) and have developed more than 20 items of our own core technology for nonwoven industry. We are planning to apply for some key patents protection certificates in year 2021.
5). How much filament fineness can be produced from your machines?
We can assure the filament fineness from our machine is ≤1.8D
6). Are your machines durable?
Our machines are strong structure with long term stable performance, different from many other suppliers' machines which can only keep good performance for short time even less than 1 year.

2.What are the widths of your machine?


We mainly produce 2.4m and 3.2m width machines. The 1.6m, 4.2m and custom widths are also available although with a bit longer delivery time.

3.What beams machine you produce?


We produce S, SS, SSS, SMS, SMMS, SSMS, SSMMS and M machines. S=spunbond, M= meltblown.

4.How long is your delivery time?


Generally the production time needs 3-6 months upon condition. We will confirm you the exact time when you place order.

5.Do you offer installing service?


Sure. We will despatch our technical workers to oversea sites to instruct and help install the machines, meantime to train the workers of customer until they can produce fabric by themselves.

6.What is your warranty?


We offer 1-2 years warranty upon the different parts.
