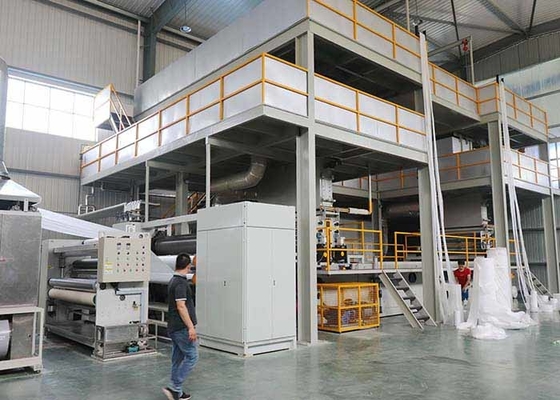

250gsm 2400mm Meltblown Fabric Production Line High Yield

250gsm 2400mm Meltblown Fabric Production Line High Yield
250gsm 2400mm Meltblown Fabric Production Line High Yield 250gsm 2400mm Meltblown Fabric Production Line High Yield 250gsm 2400mm Meltblown Fabric Production Line High Yield

Large Image :  250gsm 2400mm Meltblown Fabric Production Line High Yield

Product Details:
Place of Origin: Chuzhou China
Brand Name: Chuzhou HH non-woven
Certification: CE
Model Number: HH Meltblown
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: components wood box packaged , machine wrapping with PE film keep cargo safe
Delivery Time: 90 - 150 days
Payment Terms: L/C, T/T
Supply Ability: 3 line / months

250gsm 2400mm Meltblown Fabric Production Line High Yield

Description
Description: Meltblown Fabric Production Line Effective Width: 2400 Mm
Transformer: 800 KVA Consumption: 3000 º-3500 º / Ton
Gsm: 250 G Advantage: Time Saving High Yield
Weight: 50 Ton Type Supplyer: Manufacture
High Light:

250gsm Meltblown Fabric Production Line

,

2400mm Meltblown Fabric Production Line

,

2400mm meltblown nonwoven machine

Time-saving high yield 2400 1600 Meltblown Non-woven Fabric Machine



The project adopts the precision extrusion system of China HH non-woven fabric Co., Ltd., equipped with high-precision melt distribution system, screen exchanger, gear pump, melt spray hanger mold, M-belt, auxiliary vertical electret electrostatic treatment and winding device.
Technical advantages
1) The whole line has reasonable structure and convenient operation.
The whole production line is highly automated.
3) The control components have excellent manufacturing, excellent performance and reliable technology.
4) The whole line is controlled by PLC and operated by touch screen.
5) The configuration of host and auxiliary equipment can be specially designed and adjusted according to customer requirements.



HHM-2400 Melt Blown line data

Effective Width 2400mm
Weight Range 15-300 g / ㎡
Out put day 3 - 4 ton
Machine speed 10-70 m/ min
Transformer ≈800 KVA
Power consumption 3000º - 3500º / ton
Machine Size 18 *11 *10 M



Description Melt blown machine raw material



Raw materials pp polypropylene Melting point 166℃
Spunbond pp melt index 28-45 Denier of spunbond fiber 1.8-2.5 denier
Meltblown pp melt index 1300-1800 Denier of melt blown fiber 1.6-4 microns





250gsm 2400mm Meltblown Fabric Production Line High Yield 0



Technical Parameters

Model HHM-1.6m HHM-2.4M HHM-3.2M
Effective Width 1.6 M 2.4 M 3.2 M
Weight Range 18-300 G/㎡ 18-300 G/㎡ 18-300 G/㎡
Out put day 2-3 Ton 3-4 Ton 4.5-5 Ton
Machine Speed ≦70 m/min ≦70 m/min ≦70 m/min
Power Consumption 3000º-3500º/Ton 3000º-3500º/Ton 3000º-3500º/Ton
Machine Size(L*W*H) 18M*10M*10M 18M*11M*10M 18M*13M*10M





Meltblown Making Machine Series

Model

Product Width

(mm)

GSM Range

( g / ㎡ )

Capacity

(kg /day )

Melt blown

(BFE&PFE)

HHM- 1600 1600 15 - 300 200 - 300

BFE 99+

PFE 95+

HHM - 2400 2400 300 - 400
HHM - 3200 3200 450 - 500







Meltblown non-woven fabric production line components:

Screw extruder---->filter---->metering pump---->heating system---->melt blown box (Kasen)---->netting machine---- >Rewind

 Meltblown production process flow chart:

Raw Material----> Melt Extrusion----> Filtration----> Metering----> Air Heating Compression----> Melt Blown----> Web Formation----> Winding



250gsm 2400mm Meltblown Fabric Production Line High Yield 1





Meltblown non-woven fabric production line components:





Screw extruder---->filter---->metering pump---->heating system---->melt blown box (Kasen)---->netting machine---- >Rewind





(1) Receiving networked device:

Line speed: up to 50m/min

Meltblown receiving adjustment range: 200mm

Installation form: It can be moved horizontally, which is convenient for installation, debugging and maintenance

Driving rate: 1.1KW

(2) Suction net fan:

Power: 75KW,

4. Hot air heating system

(1) Atlas air compressor

Boost pressure: 0.7MPa

Power: 120KW~200KW

(2) Air heater

Heating power: 220KW-240KW

Material of tank and pipeline: stainless steel 304

Insulation form: stainless steel seal outside the insulation layer

5. Electret system.

6. Rack platform device:

Steel structure, easy to disassemble, firm and reliable, including stairs, etc.

7. Die head heating power: about 70kw

8. Electrical control box



250gsm 2400mm Meltblown Fabric Production Line High Yield 2





250gsm 2400mm Meltblown Fabric Production Line High Yield 3







250gsm 2400mm Meltblown Fabric Production Line High Yield 4





250gsm 2400mm Meltblown Fabric Production Line High Yield 5





250gsm 2400mm Meltblown Fabric Production Line High Yield 6





250gsm 2400mm Meltblown Fabric Production Line High Yield 7





High precisely CNC center



250gsm 2400mm Meltblown Fabric Production Line High Yield 8









250gsm 2400mm Meltblown Fabric Production Line High Yield 9





Exhibition Show



250gsm 2400mm Meltblown Fabric Production Line High Yield 10



250gsm 2400mm Meltblown Fabric Production Line High Yield 11



Packing & shipping



Main machine parts will be packed with wooden cases.Electrical parts will be packed with plastic and then packed into wooden cases.For the steel structure they will be packed in bulk into containers.



250gsm 2400mm Meltblown Fabric Production Line High Yield 12





250gsm 2400mm Meltblown Fabric Production Line High Yield 13



FAQ



1.Q : Are you a factory or trading company ?

A : We are established in 2009 , has been in onwoven industry for more than ten years .

2.Q: Do you have technical support?

A: yes , we will provide on-site installation service.

3 Q : How does your factory do regarding quality control ?

A: Quality is the most important principle . we always attach great importane to quality controlling from the very beginnging to the very end , our factory has passed CE and ISO certification .

4 Q :How long is you machine’s warrant period .

A : bascily one year warranty , long time service support .
