SSS Three Beams Non Woven Fabric Making Line Machine Spunbond

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : wooden box packaged , machine wrapping with PE film keep cargo safe Delivery Time : For detailed talk
Supply Ability : For detailed talk
Place of Origin: Chuzhou China Brand Name: Chuzhou HH non-woven
Certification: CE Model Number: HHM - 4000 S Model

Detail Information

Name: Triple Sss Non Woven Fabric Making Line Production Width: 1600mm
Cutting Precision: ±1.5 Mm Annual Output: 5000 - 15000 Ton
Bearing: SKF / NSK Raw Material Consumption: ≦ 0.2 %
Service: Dedicate Engineer Oversea Or Online HS Code: 844900900
High Light:

SSS Non Woven Fabric Making Line

,

Three beams Non Woven Fabric Making Line

,

SSS Spunbond Nonwoven Production Line

Product Description



Triple three SSS 1600mm Spunbond Nonwoven Fabric Production making Line Machine and Face Mask Non Woven Making Machine



TRIPLE-BEAM SPUNBOND LINE (SSS)



HH M SSS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈630KVA 650º-800º/Ton 5800T
2400mm 9-100G/㎡ ≈1000KVA 650º-800º/Ton 7300T
3200mm 9-100G/㎡ ≈1250KVA 650º-800º/Ton 10000T
4000mm 9-100G/㎡ ≈1500KVA 650º-800º/Ton 12400T
4800mm 9-100G/㎡ ≈1800KVA 650º-800º/Ton 14000T




Non woven fabric manufacturing machine
1. Weight: 10-260 g / m2.
2. Width: 1.6-3.2m.
3. Color: according to the version color produced by the customer.
4. Provide five non-woven products: dot pattern, cross pattern, Canberra pattern, mouth pattern, small dot pattern, triangle pattern and plastic film.
Non woven machine features:
(1) High strength, small vertical and horizontal difference and strong strength;
(2) Acidic, non-toxic, no radiation, harmless to human physiology;
(3) Good air permeability;
(4) Masterbatch dyeing never fades.


Production specifiction:
Width:1.6-4.8M
Gram:15-200GSM
Embossing:Oval and Dimond
Color:Two sides with two different colors can be made.
Special application:Anti-static, anti-alcohol, anti-aging, anti-UV, anti-oil, anti-blood.






PP Spunbond Non Woven Fabric Making Machine



The main production we have S/SS/SS/SMS/SMMS/SSMMS,and they also have different specifications ,the width of them had 1.6m/2.4m/3.2m,different configurations had different price ,so if you want to buy our machine ,you can tell us some details ,we will give the professional advice and the best service will be supplied to you welcome to vist our company , and hope we can have a deeply cooperation.



Non Woven Fabric Making Machine Specification:
1. Weight :10-260 grams / square meter.
2. Width :1.6-3.2 meters.
3. Color: can according to the customer's production version of the color.
4. Provides: dot patterns, cross pattern, Canberra, mouth the word pattern, a small dot pattern, the appearance of a triangle pattern of five non-woven products and plastic film.

Non Woven Fabric Making Machine Features:
(1) high strength, strong vertical and horizontal to the small differences;
(2) acid, non-toxic, non-radiation, harmless to human physiology;
(3) has an excellent air permeability;
(4) masterbatch staining never fades.

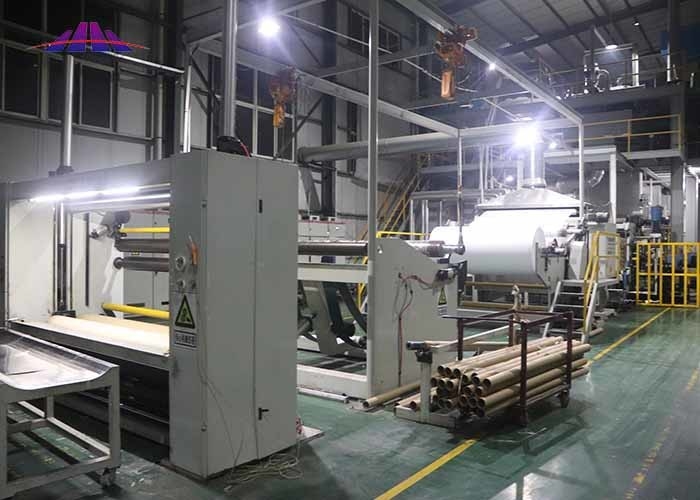

SSS Three Beams Non Woven Fabric Making Line Machine Spunbond 0



3200 SSS Model

Effective Width 3200mm
Weight Range 9 - 100 g / ㎡
Out put daily 24 - 30 ton
Machine speed ≦ 550 m / min
Transformer ≈ 1250 KVA
Power Consumption 650º - 800 º / Ton
Machine Size 50*20 * 12 M



SSS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈630KVA 650º-800º/Ton 5800T
2400mm 9-100G/㎡ ≈1000KVA 650º-800º/Ton 7300T
3200mm 9-100G/㎡ ≈1250KVA 650º-800º/Ton 10000T
4000mm 9-100G/㎡ ≈1500KVA 650º-800º/Ton 12400T
4800mm 9-100G/㎡ ≈1800KVA 650º-800º/Ton 14000T



Model Effective width Daily capacity Speed Spinning system GSM Range Machine dimension
Length*Width*Height
HH-1600M 1600MM 2000Kg 70M/Min Meltblown 15-300 18*10*10 meter
HH-2400M 2400MM 3000Kg 18*11*10 meter
HH-3200M 3200MM 4500Kg 18*13*10 meter
HH-1600S 1600MM 5000Kg 150M/Min

Spunbond

(S)

9-250 18*8*12 meter
HH-2400S 2400MM 7000Kg 18*10*12 meter
HH-3200S 3200MM 10000Kg 18*15*12 meter
HH-1600SS 1600MM 9000Kg 350M/Min

Spunbond

(SS)

8-150 45*15*12 meter
HH-2400SS 2400MM 13000Kg 45*18*12 meter
HH-3200SS 3200MM 16000Kg 45*20*12 meter
HH-1600SSS 1600MM 12000Kg 550M/Min

Spunbond

(SSS)

9-120 50*15*12 meter
HH-2400SSS 2400MM 16000Kg 50*18*12 meter
HH-3200SSS 3200MM 24000Kg 50*20*12 meter







Working process:



Meterial mix machine----> Automatic feeder----> main extruder----> filter----> metering pum



---> Spinning box----> Stretching device----> Web forming machine----> Calender



----> Winding and Slitting machine





Main parts introduce



SSS Three Beams Non Woven Fabric Making Line Machine Spunbond 1



working process





SSS Three Beams Non Woven Fabric Making Line Machine Spunbond 2



Machine finised product



SSS Three Beams Non Woven Fabric Making Line Machine Spunbond 3

SSS Three Beams Non Woven Fabric Making Line Machine Spunbond 4



CNC Center keep machinery parts precisely beyond customer request



SSS Three Beams Non Woven Fabric Making Line Machine Spunbond 5

SSS Three Beams Non Woven Fabric Making Line Machine Spunbond 6







Exhibition show

SSS Three Beams Non Woven Fabric Making Line Machine Spunbond 7



SSS Three Beams Non Woven Fabric Making Line Machine Spunbond 8



.Packaging & Delivery



Packaging Details
Nude packing , wooden case is optional.
case packing:Carding machine, lapper and electric boxes wooden case packaged.
Other machines nude packaging.



SSS Three Beams Non Woven Fabric Making Line Machine Spunbond 9

SSS Three Beams Non Woven Fabric Making Line Machine Spunbond 10

SSS Three Beams Non Woven Fabric Making Line Machine Spunbond 11







Why choose US



1.Why should customer choose HHM as supplier?What are your advantages?

1). Are you professional?
We are the professional factory and have been focusing only on spunbond and meltblown nonwoven machines.
2). How long are your history?
Our first machine was produced in 2005 in JIANSHAN factory. Our Chuzhou factory was established in 2018. Our first oversea project was in 2009.
3). What is your machines capacity?
Our spunbond machine has about 30-40% higher capacity than most other common suppliers.
4). Are your technology advanced?
We have upgraded to the 5th generation technology (other suppliers are still the 3rd generation) and have developed more than 20 items of our own core technology for nonwoven industry. We are planning to apply for some key patents protection certificates in year 2021.
5). How much filament fineness can be produced from your machines?
We can assure the filament fineness from our machine is ≤1.8D
6). Are your machines durable?
Our machines are strong structure with long term stable performance, different from many other suppliers' machines which can only keep good performance for short time even less than 1 year.

2.What are the widths of your machine?
We mainly produce 2.4m and 3.2m width machines. The 1.6m, 4.2m and custom widths are also available although with a bit longer delivery time.

3.What beams machine you produce?
We produce S, SS, SSS, SMS, SMMS, SSMS, SSMMS and M machines. S=spunbond, M= meltblown.

4.How long is your delivery time?
Generally the production time needs 3-6 months upon condition. We will confirm you the exact time when you place order.

5.Do you offer installing service?
Sure. We will despatch our technical workers to oversea sites to instruct and help install the machines, meantime to train the workers of customer until they can produce fabric by themselves.

6.What is your warranty?
We offer 1-2 years warranty upon the different parts.
