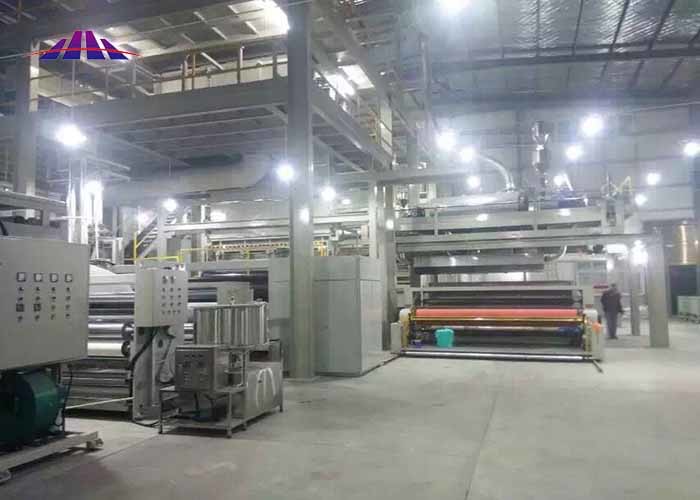

New Condition High Speed SMMS Non Woven Fabric Textile Spinning Machine Non Woven Fabric Production Line

Product Description

New Condition High Speed SMMS Non Woven Fabric Textile Spinning Machine Non Woven Fabric Production Line



Introduction to the composition of the meltblown production line



1. Automatic suction device: 1 set

2. Polymer extrusion and meltblown spinning system

(1) Screw extruder

Model: φ135mm

Screw technical parameters:

Diameter: 90mm

Material: 38CrMoAlA

Surface treatment: nitriding polishing

(2) Filter device

Drive form: hydraulic

Structure: plate type double station hydraulic screen changer

Pressure sensor: input configuration

(3) Metering pump

Extrusion output: 50-120 kg/h

Pressure sensor: both input and output are configured

Drive power: 4.5KW

(4) Melt transportation pipeline and insulation

(5) Combination of melt blown die and spinneret

Die material: SUS630

Die size: 1600mm

Spinneret material: SUS630

Spinneret opening length: 1700mm

Spinning hole diameter: ≤0.25mm-0.35mm (customizable)

Spinning hole length-diameter ratio: 14:1





1600 SMMS Model



Effective Width	1600mm
Weight Range	9 - 100 g / ㎡
Out put daily	7 - 12 ton
Machine speed	≦ 450 m / min
Transformer	≈ 1500 KVA
Power Consumption	1700º - 1900 º / Ton
Machine Size	55 *20 * 12 M





Model	Effective width	Daily capacity	Speed	Spinning system	GSM Range	Machine dimension Length*Width*Height
HH-1600M	1600MM	2000Kg	70M/Min	Meltblown	15-300	18*10*10 meter
HH-2400M	2400MM	3000Kg				18*11*10 meter
HH-3200M	3200MM	4500Kg				18*13*10 meter
HH-1600S	1600MM	5000Kg	150M/Min	Spunbond (S)	9-250	18*8*12 meter
HH-2400S	2400MM	7000Kg				18*10*12 meter
HH-3200S	3200MM	10000Kg				18*15*12 meter
HH-1600SS	1600MM	9000Kg	350M/Min	Spunbond (SS)	8-150	45*15*12 meter
HH-2400SS	2400MM	13000Kg				45*18*12 meter
HH-3200SS	3200MM	16000Kg				45*20*12 meter
HH-1600SSS	1600MM	12000Kg	550M/Min	Spunbond (SSS)	9-120	50*15*12 meter
HH-2400SSS	2400MM	16000Kg				50*18*12 meter
HH-3200SSS	3200MM	24000Kg				50*20*12 meter





Parts of spunbonded nonwoven fabric production line:

Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter

Spunbonded process and technical flow chart:

Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product



Parts of Melt blown nonwoven fabric production line:

Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter



Melt blown process and technical flow chart:

Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product



Working process



Mainly componet





Aperture (1pc)	90 300 kg / h
The screw L/D of the main extruder	30:1
The screw L/D of the ancillary extruder	15:1







Maximum temperature	300 ℃
Max. Output	200 kg / h
Heating zone	8 tod
Perforated length	3,350 mm
HPI	40
Number of holes	5,276
1 Set L/D	10
Capillary diameter	0.3mm
Capillary length	3,600mm





Spinning box ,is one of most import parts of the non-woven fabric manufacturing machine. PP material through the spinning box is spun into countless strands of silk .



Advanced CNC tools









Exhibition show







Packing and delievery





FAQ

1. Q:How long will your engineer reach our factory?

A:Within one week after everything ready (machine arrival your factory, non woven material, power source, air compressor etc.Prepared)

2. Q:Does your engineer understand English?

A:Our engineers understand a little English. All our engineers have more than five years machine installation experience.

3. Q:What should we charge for your engineer?

A:You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 800CNY one day per person.

4. Q:How many days it will take for the intallation?

A: It will take around 45 days, depends on the machine type.

5. Q:How do we solve the machine problem after your engineer leaving?

A:Generally speaking, there will be no problem after finishing installation. In case you have any problem, you can contact our sales at any time. Our engineers will take a solution video according your description.
