120mm OD Horizontal Fabric Slitting Machine Fabric Slitter For Nonwoven Machinery

Minimum Order Quantity : 1 Price : 1000000$/set
Packaging Details : wooden case Delivery Time : For detailed talk
Payment Terms : L/C, T/T Supply Ability : For detailed talk
Place of Origin: Chuzhou Brand Name: Chuzhou HH non-woven
Certification: CE Model Number: slitter machine

Detail Information

Product Name: Slitter Winder Machine Raw Material: Non Woven Roller
Brand Name: HH Nonwoven Machinery Weight: 4000 Kg
Structure: Horizon Type Voltag: 380v
Automatic Grade: Fully Auto Key Word: Slitter Machine
High Light:

horizontal Fabric Slitting Machine

,

120mm Fabric Slitting Machine

,

120mm fabric slitter

Product Description

Fully automatic non woven fabric slitting rewinding machine with high speed Fabric Slitting Machine



HHM non-woven fabric slitting and rewinding machine is a new series of pet non-woven fabric slitting machine, equipped with the most advanced slitting knife and pneumatic knife. The machine adopts the latest technology in Taiwan and adopts pneumatic knife, which can flexibly cut the width of finished roll, and the change of width is very simple. This machine doesn't need a bottom knife. Replacing the bottom knife can greatly save operation time. It is specially designed for single axis rewinding, which is convenient for users. Tension control adopts automatic setting. Different widths have different choices, such as 800130012002503500mm. According to the requirements of customers, the machine can perfectly cooperate with pet non-woven fabrics, medical non-woven fabrics, Spunlaced non-woven fabrics, viscose non-woven fabrics, PP non-woven fabrics, etc.





Model HHM - slitter
Material Nonwoven Fabrics
Unwind roll width 800/1300/2500/3500 for customizee requirement
Unwind roll ID : 76 mm
Unwind roll OD : 120 mm Max
Finished roll width 40 mm to max unwinnd roll width
Finished roll ID : 76 mm
Finished roll OD : Max 600 mm
Design speed Maximum 200 m / min
Total power 5.5 kw
Voltage 220/380/415/440/450V(option)
Pneumatic requirement 0.3Mpa
Warranty 1 year



120mm OD Horizontal Fabric Slitting Machine Fabric Slitter For Nonwoven Machinery 0



120mm OD Horizontal Fabric Slitting Machine Fabric Slitter For Nonwoven Machinery 1

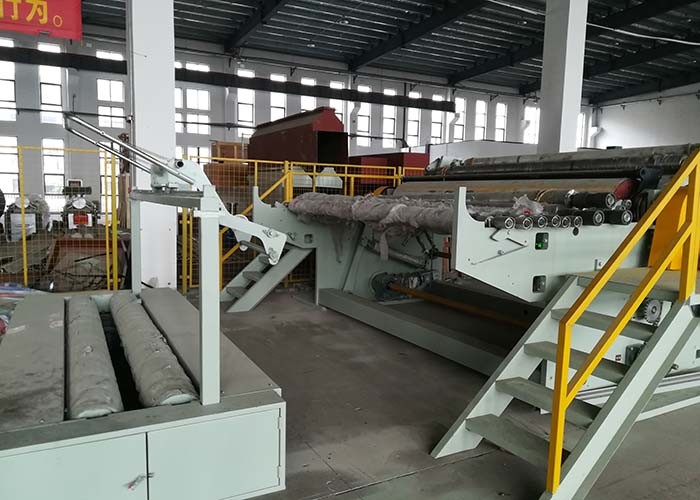

 slitter  machine view



120mm OD Horizontal Fabric Slitting Machine Fabric Slitter For Nonwoven Machinery 2

120mm OD Horizontal Fabric Slitting Machine Fabric Slitter For Nonwoven Machinery 3120mm OD Horizontal Fabric Slitting Machine Fabric Slitter For Nonwoven Machinery 4



120mm OD Horizontal Fabric Slitting Machine Fabric Slitter For Nonwoven Machinery 5







packing & shipping



packaging: products will packaged according to their shapes, weight, transport distance and transport



modes. large machines will be packaged in sections. every part of export machinery will be in standard



export package—seaworthy wooden case, waterproof film, straw rope, carton box etc., which will ensure



the intactness of products.

120mm OD Horizontal Fabric Slitting Machine Fabric Slitter For Nonwoven Machinery 6

120mm OD Horizontal Fabric Slitting Machine Fabric Slitter For Nonwoven Machinery 7



FAQ:



Q:Which machine do you require ?

A: We have many models of machine , please contact our sales office who will assist you to select the best machine to suit your requirement.

Q: Can you make the machine as buyer’s requests for us ?

A : Yes , We have a professional RD team with rich experience to design and manufacturing.

Q: What is your terms of payment ?

A: T / T or L / C 30% deposit , the balance after inspection and before shipment.

Q:How long is the warranty ?

A:Machine with one year warranty, if any parts broken , we will send new spareto buyer via express within 24 hours, life -long maintenance.

Q : How long is your delivery time ?

A: 2 weeks for standard model machine , 30 working days for customized model .

Q:How do you pack the machine ?

A:Free fumigation plywood cases.

Q :How do you deliver the machine?

A: By sea ,by air , by road.

Q:Will you support oversea service?

A:yes , our engineer can go to buyer’s factory to install the machine and train the operator for buyer.
