China PP Spunbond Nonwoven Production Line manufacturer

BFE PFE PPF Meltblown Fabric Production Line

Product Details:
Place of Origin: Chuzhou
Brand Name: HH non-woven
Certification: CE
Model Number: 1600 Meltblown
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1000000$/set
Packaging Details: wooden case
Delivery Time: For detailed talk
Supply Ability: For detailed talk

Detail Information

Machine Name: Meltblown Production M Line Theory: Meltblown
Application: Gown , Medical Filtration ,Thermal Insulation , Diaper Gsm: 15 - 300 G / M2
Brand: H H Nonwoven Max Speed: 10 - 70 M / Min
Machine Size: 18 M * 10 M *10 M Daily Capacity: 3 - 5 Ton
Effective With: 1600 - 3200 Mm
High Light:

BFE Meltblown Fabric Production Line

,

PFE Meltblown Fabric Production Line

Product Description

anti static anti virus BFE PFE PPF medical care Meltblown Fabric Production Line

It can produce superfine fiber non -woven fabrics ,focusing on non-woven products with good absorbency and high elasticity.

Technical Parameters

BFE PFE PPF Meltblown Fabric Production Line 0



Model HHM-1.6m HHM-2.4M HHM-3.2M
Effective Width 1.6 M 2.4 M 3.2 M
Weight Range 18-300 G/㎡ 18-300 G/㎡ 18-300 G/㎡
Out put day 2-3 Ton 3-4 Ton 4.5-5 Ton
Machine Speed ≦40 m/min ≦40 m/min ≦40 m/min
Power Consumption 3000º-3500º/Ton 3000º-3500º/Ton 3000º-3500º/Ton
Machine Size(L*W*H) 18M*10M*10M 18M*11M*10M 18M*13M*10M

HHM-SSMMS Five-Beam spunmelt nonwoven fabric making machine/line

Effective

Width(mm)

Raw Materials

GSM Range

(g/sq.m)

Max.Speed

(Tons/year)

Annual Capacity

(Tons/year)

Daily Capacity

(Tons/Day)

2400



Polypropylene(PP)

9-80 600 8400 23
3200 11400 31
4200 14600 40
The whole line can CUSOMIZED as your needs .



Parts of spunbonded nonwoven fabric production line:

Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter



Spunbonded process and technical flow chart:

Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product



Parts of Melt blown nonwoven fabric production line:

Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter



Melt blown process and technical flow chart:

Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product



key component



BFE PFE PPF Meltblown Fabric Production Line 1



Name:Main Extruder
Brand:HHM
Original:China
Diameter:Φ135mm for 1.6m,Φ170mm for 3.2m,

Max speed: 75r/min for 1.6m , 85r/min for 3.2m

Motor:90kw for 1.6m , 132kw for 3.2m



BFE PFE PPF Meltblown Fabric Production Line 2



Name:Filter
Brand:HHM
Original: China
Type: Hydraulic or Candle filter

Filter precision: 45μm~60μm

Fitration area: 2.5 m2for 1.6m,3.5 m2 for 3.2m

Heat source : heat-transfer oil , circular heating



BFE PFE PPF Meltblown Fabric Production Line 3



Name: Spinning Box

Orifice number:11019 for 1.6m , 17651 for 3.2m

Orifice diameter:Φ0.45mm

L/D=4:1

Max temperature:300℃

Fuction : for spining the PP flament.



BFE PFE PPF Meltblown Fabric Production Line 4

BFE PFE PPF Meltblown Fabric Production Line 5



Name:Metering Pump
Brand:HHM
Original:China
Supply volume:200cc for 1.6m, 200ccx2 for 3.2m

Rotate speed:5~35r/min

Max Pressure:35MPa

Temperature:≤330℃

Fuction: meter PP melt liquid



working process

BFE PFE PPF Meltblown Fabric Production Line 6

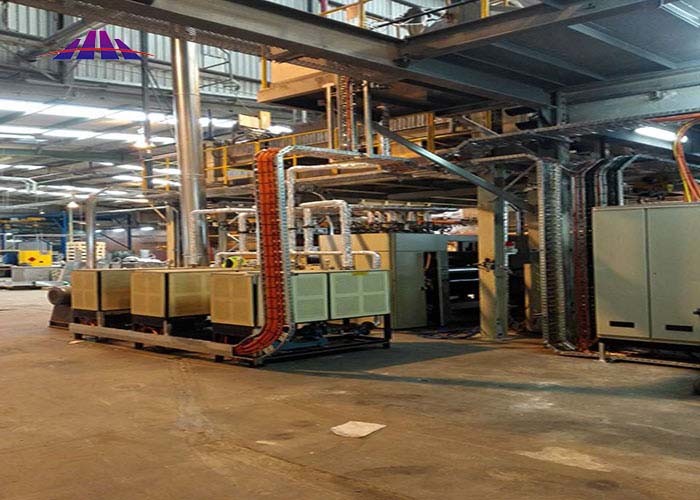

Machine image





BFE PFE PPF Meltblown Fabric Production Line 7BFE PFE PPF Meltblown Fabric Production Line 8



Packing and deliever



Machine Nude packing , wooden case is optional , case packing , electric parts carton box or wooden case packaged , other machines nue packaging wrapping with PE film keep cargo safe.

BFE PFE PPF Meltblown Fabric Production Line 9BFE PFE PPF Meltblown Fabric Production Line 10

BFE PFE PPF Meltblown Fabric Production Line 11



Our service

1. We provide pre-sales, sales and after sales service, especially one year of free maintenance warranty.

2. If there are problems with the machine parts, customer can take pictures and send to us by email to explain the situation, we will help to solve
it on line or by email as soon as possible.

3. If there are big problems of the machine caused by wrong operation, we will arrange professional engineer to solve the problem in customer's
factory, but all the cost including visa, air fare and accommodations must be paid by customer.
