China PP Spunbond Nonwoven Production Line manufacturer

100gsm Non Woven Fabric Production Line

Product Details:
Place of Origin: Chuzhou China
Brand Name: Chuzhou HH non-woven
Certification: CE
Model Number: SMS SMMS SSMMS S SS SSS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wood box packaged , machine wrapping with PE film keep cargo safe
Delivery Time: For detailed talk
Payment Terms: L/C, T/T
Supply Ability: For detailed talk

Detail Information

Product: 1.6 Smms Non Woven Fabric Production Line Machine Type: HHM 1.6 Smms
Gsm: 100 G Annual Capacity: 5000 - 15000 Ton
Voltage: 220 / 380 / Customized Power: 1000 Kw -3000 Kw
Size: 55 *20 * 12 M Delivery Time: 100 Days
High Light:

100gsm Non Woven Fabric Production Line

,

SMS Non Woven Fabric Production Line

Product Description



Medical doctor gown blood alcoholic resistance SMMS SMS Non woven fabric production line





The three resistance non-woven fabric SMMs is made of spunbonded non-woven fabric + melt blown non-woven fabric + melt blown non-woven fabric + spunbonded non-woven fabric and hot rolled four layers of fiber web. It has all the characteristics of ordinary SMMs non-woven fabric; Alcohol resistance reaches grade 10 (100% alcohol resistance); The static capacitance is 108-1012; Petroleum plasma; It is mainly used for protective articles, such as surgical clothes, surgical towels, surgical bags, medical bed sheets, hand washing clothes, isolation clothes, laboratory clothes, advanced protective clothes, etc. Different colors can be made according to different customers' preferences

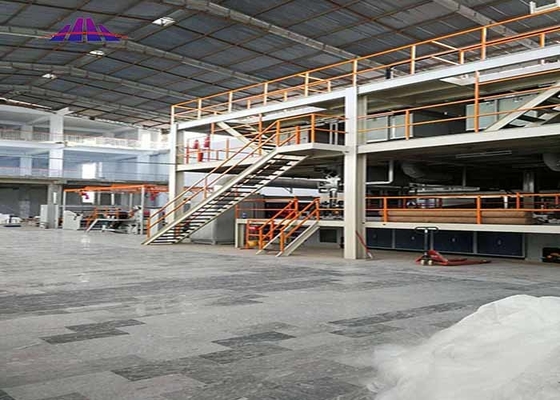

100gsm Non Woven Fabric Production Line 0



1600 SMMS Model

Effective Width 1600mm
Weight Range 9 - 100 g / ㎡
Out put daily 7 - 12 ton
Machine speed ≦ 50 m / min
Transformer ≈ 1500 KVA
Power Consumption 1700º - 1900 º / Ton
Machine Size 55 *20 * 12 M



HHM SMMS Product application

Material PP chip Weight range 10-150 g/m2
Model

HHM-1.6SMMS/HHM-2.4SMMS

HHM-3.2SMMS/HHM-4.0SMMS/HHM-4.8SMMS

Fabric usage

Medical applicant,shopping bag , packing

Operation suit,face mask, baby diaper.etc



HHM SMMS Non woven fabric making catalog



Effective width(mm) 1600 2400 3200 4000 4800
Output(ton/year) 4000T 6200T 5400T 10500T 12700T
GMS Range(g/㎡) 9-100 9-100 9-100 9-100 9-100
Max.speed(m/min) 450 450 450 450 450



SMS Model

Effective width(mm) 1600 2400 3200 4000 4800
Output(ton/year) 3200T 5100T 7000T 8700T 10500T
GMS Range(g/㎡) 9-100 9-100 9-100 9-100 9-100
Max.speed(m/min) 350 350 350 350 350



Parts of spunbonded nonwoven fabric production line:



Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter

Spunbonded process and technical flow chart:

Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product



Parts of Melt blown nonwoven fabric production line:



Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter



Melt blown process and technical flow chart:



Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product



working process chart



100gsm Non Woven Fabric Production Line 1



Main parts of SMMS non woven fabric making line



100gsm Non Woven Fabric Production Line 2



Melting Filter Also known as a quantitative pump or proportional pump, it is a reciprocating pump that can adjust the flow rate, and its flow can be adjusted stepless in the range of 0-100%. The characteristic is that the discharge pressure can be kept constant when the flow is adjusted. A device used to measure the amount of PP melts.


 Spinning beam One of the main components of the melt spinning machine is a polymer melt through the filter into the spinning box and spinning through the melt distribution and heat preservation. A rectangular metal box with a box for outsourced insulation. It contains the melt distribution

100gsm Non Woven Fabric Production Line 3



Upper Stretching Device Make the tow tensioned."

Lower Stretching Device Make the tow even more uniform before entering the netting mach

the electric control cabinet to electric power distribution and control equipment power."





100gsm Non Woven Fabric Production Line 4



Vacuum calcinator

The latest chemical fiber component, filter core cleaning equipment. It is suitable for the ordinary spinneret used for polyester, polyamide and polypropylene fiber."





100gsm Non Woven Fabric Production Line 5

Two cooling blower for each other pressure gauges, pressure switches, air channel transfer baffles, air oil and water filter separators, cooling fan control cabinet and so on. Two cooling fans share a control cabinet to automatically control the start and stop of the two typhoon machines. The cooling wind can be taken directly from the air or from the outlet of the fan.

Suction blower is used to pump, exhaust gas, and to compress the gas, and convert the energy input into the kinetic energy and potential energy of the gas in order to increase the unit energy of the gas.





High - precision CNC tools make sure machining part beyond customer request



100gsm Non Woven Fabric Production Line 6100gsm Non Woven Fabric Production Line 7



Exihibition Show with customer



100gsm Non Woven Fabric Production Line 8100gsm Non Woven Fabric Production Line 9



packing and delivery



Loading Details
Container 4-12 Pcs of 40HQ Container
Port Nanjing or Shanghai Port







Packing Details

The normal package is wooden Cases.



Some of huge equipment will load with wooden case;.



Each container weight 20-25 Tons.





100gsm Non Woven Fabric Production Line 10





100gsm Non Woven Fabric Production Line 11





100gsm Non Woven Fabric Production Line 12





FAQ

1.Q:I already have one factory but there is a little difference in the size,for example the height can't meet 13m,only 12m?

A:Don't be worry. Your machine could be customized.



2.Q:How to make sure your machine's quality?how about the service?

A:Each machine gets ISO9001:2008,CE, SGS. And warranty is one year. you can enjoy the service within production lifetime.



3.Q:How can I get right machine for myself, if I have no ideal about it?

A:Tell me what kind of fabric that you want, how much you want to produce and your factory szie etc. We will design for you.
