China PP Spunbond Nonwoven Production Line manufacturer

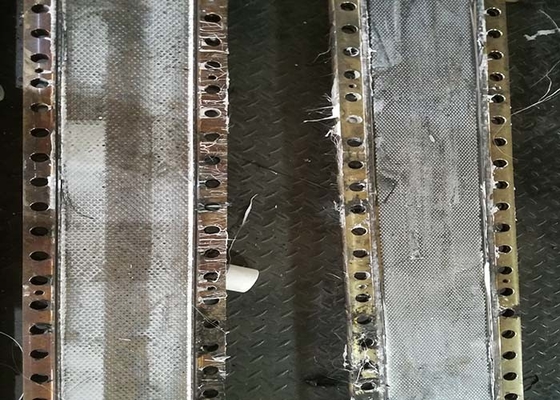

3200mm 4200mm Spinneret Extrusion Meltblown Die Head For Polypropylene

Product Details:
Place of Origin: Chuzhou China
Brand Name: HH non-woven
Certification: CE
Model Number: 1600 mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 30 days
Supply Ability: For detailed talk

Detail Information

Product: Melt And Spinneret Die Head Application: Non Woven Fabric Plant
Diameter Of Micro Hole Range: 0.02 Mm - 2.0mm Capillaries Tolerance: 0.001 Mm
Positional: 2 Um Length: 1600 3200 4200 Mm
Width: 216 Mm Package: Strong Wooden Box
High Light:

Spinneret Extrusion meltblown die head

,

3200mm meltblown die head

,

4200mm melt blown die

Product Description

3200mm 4200mm Spunbond Spinneret Extrusion Die for Polypropylene Non woven fabrics Spunbond Machine





innovate
Our team gives priority to customers' needs and can customize products. Our factory is equipped with advanced equipment to meet the changing market demand.
cooperation
The professional design team is willing to accept any suggestions from customers and cooperate with customers to create a win-win situation.





Products Description

Name non woven  spinneret Die
Material forging SUS630
Specification 1600-3200mm
Hole type round
Diameter 0.25-0.5mm
L/D 1:10-1:15



Product Show

Item size size size size
DIE HEAD FOR SPUNBOND 1924mm 2164mm 3616 4606
2074mm 2724mm 2914 3516
Customization according to customer production requirements, upon request.




Filter Mold Die Manufacturer Standard Type 1600mm width Polypropylene Melt Blown Non-woven Fabric
1. Material: sus 630 etc.
2. Specification: Custom Made, Based on Drawing Request
3. Certification: ISO 9001, RoHS, Utility Model Patent Certificate





Our Services & Strength


Complex Structures, High Quality, High Precision, Long Life Mold Base!

1. Quality Obsessive Manufacturing
2. Reasonable Price in the Market
3. Continuous Improvement Strategy
4. Diversified Rich Experienced Skilled Workers
5. Excellent Production Technology
6. Professional R & D Department
7. Advanced Imported Machines
8. Timely Service and Support





Name Spandex spinneret
Material Forging Sus 630 sus431
Specification 1600-4000 mm
Hole type Round
Diameter 0.25-0.5 mm
L / D 1:10 - 1: 15



 spinneret dia and melt blwon dia for non woven making line as below

Model Effective width Daily capacity Speed Spinning system GSM Range Machine dimension
Length*Width*Height
HH-1600M 1600MM 2000Kg 70M/Min Meltblown 15-300 18*10*10 meter
HH-2400M 2400MM 3000Kg       18*11*10 meter
HH-3200M 3200MM 4500Kg       18*13*10 meter
HH-1600S 1600MM 5000Kg 150M/Min

Spunbond

(S)

9-250 18*8*12 meter
HH-2400S 2400MM 7000Kg       18*10*12 meter
HH-3200S 3200MM 10000Kg       18*15*12 meter
HH-1600SS 1600MM 9000Kg 350M/Min

Spunbond

(SS)

8-150 45*15*12 meter
HH-2400SS 2400MM 13000Kg       45*18*12 meter
HH-3200SS 3200MM 16000Kg       45*20*12 meter
HH-1600SSS 1600MM 12000Kg 550M/Min

Spunbond

(SSS)

9-120 50*15*12 meter
HH-2400SSS 2400MM 16000Kg       50*18*12 meter
HH-3200SSS 3200MM 24000Kg       50*20*12 meter
HH-1600SMS 1600MM 10000Kg 350M/Min

Spunbond/

Meltblown/

Spunbond/

9-100 45*20*12 meter
HH-2400SMS 2400MM 14000Kg       45*23*12 meter
HH-3200SMS 3200MM 18000Kg       45*25*12 meter
HH-1600SMMS 1600MM 12000Kg 450M/Min

Spunbond

Meltblown

Meltblown

Spunbond

9-100 55*20*12 meter
HH-2400SMMS 2400MM 17000Kg       55*23*12 meter
HH-3200SMMS 3200MM 23000Kg       55*25*12 meter



1) Parts of spunbonded nonwoven fabric production line:

Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->

Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter

2) Spunbonded process and technical flow chart:

Additive(Recycling off-cut fabric)---->Raw material----> Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->

Web forming---->Calendering---->Winding----> Cutting---->Final product





3200mm 4200mm Spinneret Extrusion Meltblown Die Head For Polypropylene 0

3200mm 4200mm Spinneret Extrusion Meltblown Die Head For Polypropylene 1

3200mm 4200mm Spinneret Extrusion Meltblown Die Head For Polypropylene 2











3200mm 4200mm Spinneret Extrusion Meltblown Die Head For Polypropylene 3





3200mm 4200mm Spinneret Extrusion Meltblown Die Head For Polypropylene 43200mm 4200mm Spinneret Extrusion Meltblown Die Head For Polypropylene 5





Precisely CNC center hold machinning parts beyond customer request



3200mm 4200mm Spinneret Extrusion Meltblown Die Head For Polypropylene 6



3200mm 4200mm Spinneret Extrusion Meltblown Die Head For Polypropylene 7



Exhibition with customer



3200mm 4200mm Spinneret Extrusion Meltblown Die Head For Polypropylene 8





3200mm 4200mm Spinneret Extrusion Meltblown Die Head For Polypropylene 9



Packing & logistics



Will packing and loading as you need .

Make sure all products are qualified

DHL UPS FEDEX TNT EMS etc



3200mm 4200mm Spinneret Extrusion Meltblown Die Head For Polypropylene 10



3200mm 4200mm Spinneret Extrusion Meltblown Die Head For Polypropylene 11





Pre-sales Services

1. Tell customer the features and application of the machine in details.

2. Help customer to select suitable, cost-effective and practical machine configurations, as per the material features and processing requirements.

3. Provide machine trial running for material testing.

Sales Service

1. Provide engineering conditions required by the project and design the layout of the installation of the whole machine line for customer according to customer's factory condition.

2. Update the production schedule with you in time.

3. Discuss with you about the process required for your materials, screw combination arrangement, barrels arrangement, etc. Finally we will provide you the related drawings of screw combination and barrels arrangements.

4. The machine will be made according to the technical docs confirmed by our both parties and shipped on time.

After-sales Service

1.Always provide on-line support and

video technical support.

2. Provide instructions about how to install and debug the machine. And also provide the training of the operation workers.

3. Establish detailed user service files and provide lifelong tracking service.

4. The whole machine is guaranteed for one year

5. Ensure sufficient supply of spare parts and provide free technical consulting services for a long time.
