China PP Spunbond Nonwoven Production Line manufacturer

S SS SSS SMS SMMS Non Woven Fabric Making Machine For Diaper

Product Details:
Place of Origin: Chuzhou China
Brand Name: Chuzhou HH non-woven
Certification: CE
Model Number: HHM - SS SSS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: components wood box packaged , machine wrapping with PE film keep cargo safe
Delivery Time: For detailed talk
Payment Terms: L/C, T/T
Supply Ability: For detailed talk

Detail Information

Product: SSS SMS SMMS Non Woven Fabric Making Machine Usage: Adult & Child Diaper ,medical , Hygiene ,home Use , Farms ,bags
Annual Output: 1000 - 15000 Ton Power Consumption: 800 - 1400 KW *H / Ton
Weight: 60 - 200 Ton Technical: Spunbond And Meltblown Hot Air Drawing
Supply Ability: 40 Line Annual Port: Nanjing Or Shanghai
High Light:

SMMS Non Woven Fabric Making Machine

,

SMS Non Woven Fabric Making Machine

,

SMS Non Woven Fabric Cutting Machine

Product Description

1600mm 2400mm 3200mm S SS SSS SMS SMMS non woven fabric making machine



NONWOVENS APPLICATIONS

HHM non-woven production line is designed and manufactured according to customer's specific requirements. Their likelihood
The application field is correspondingly wide. Such as:
Packaging - shopping bags, rice packaging, clothing packaging, etc.
Hygiene - Infant and adult nappies, feminine hygiene, etc.
Surgical masks, disposable clothing, etc.
Furniture - bedspreads, seat covers, etc.
Technology - geotextiles, agriculture, etc.
Filtration - air, gas, liquid, etc.

Quick Details
1> Models: HHM-1600 SSS, HHM-2400 SSS, HHM-3200 SSS, and HHM-4000 SSS
2> width: 1600 to 4000 mm
3> Fabric: GSM:15~ 250g
4> speed: 0~550m/min
6> fineness: 1.5~2.5 Dtex
5> Chief Executive; ISO9001



Sss nonwoven fabric

SSS Nonwoven Fabric
Item





G/m2

specification

15 30 45 60 90 120
Allowable deviation(%) First class ±8 ±7
Final product ±10 ±9
Width deviation (%) First class +2.0 ,-1.0 +2.0 ,-1.0
Final product +2.5 ,-1.5 +2.5 ,-1.5

Fracture

strength

MD N/5cm First class 15 35 50 68 95 130
Final product 12 30 45 65 91 108
CD N/5cm First class 10 28 44 64 82 95
Final product 8 25 38 57 57 90

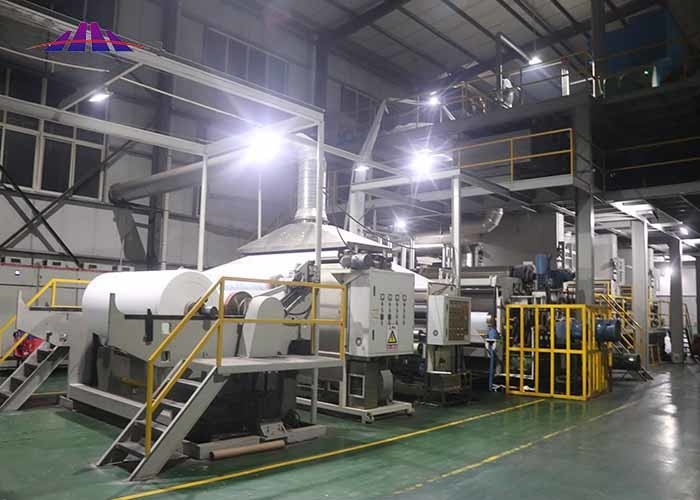

Advanced technology nonwoven fabric making machine

S SS SSS SMS SMMS Non Woven Fabric Making Machine For Diaper 0



S Model (Packaging , Agricultural Cover )

Working width Fabric Consumption Annual output/Year
1600mm 9-250G/㎡ 130KW 1800T
2400mm 9-250G/㎡ 180KW 2200T
3200mm 9-250G/㎡ 200KW 3300T
4000mm 9-250G/㎡ 300KW 4400T
4800mm 9-250G/㎡ 400KW 5100T



SS Model ( Baby Diaper ,Medical Products )

Working width Fabric Consumption Annual output/Year
1600mm 9-120G/㎡ 200KW 3700T
2400mm 9-120G/㎡ 2500KW 5100T
3200mm 9-120G/㎡ 200KW 6600T
4000mm 9-120G/㎡ 300KW 8800T
4800mm 9-120G/㎡ 450KW 10000T





M Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 15-300G/㎡ ≈600KVA 3000º-3500º/Ton 800T
2400mm 15-300G/㎡ ≈800KVA 3000º-3500º/Ton 1100T
3200mm 15-300G/㎡ ≈1000KVA 3000º-3500º/Ton 1500T



SMS Model

Working width Fabric Power input Consumption Annual output/Year
1600mm 9-100G/㎡ ≈800KVA 1300º-1600º/Ton 3200T
2400mm 9-100G/㎡ ≈1250KVA 1300º-1600º/Ton 5100T
3200mm 9-100G/㎡ ≈1600KVA 1300º-1600º/Ton 7000T
4000mm 9-100G/㎡ ≈2000KVA 1300º-1600º/Ton 8700T
4800mm 9-100G/㎡ ≈2250KVA 1300º-1600º/Ton 10500T



Width 1600 M
Gsm 9 - 120 gsm
Output per day 8 - 10.5 Ton
Machine Speed ≦ 350 m / min
Transformer ≈ 400 KVA
Power Consumption 650º - 800º / Ton
Machine Size 45 * 15 *12 M



Technical Advantages



1) The whole line is well-structured and easy to operate.
2) The whole line is highly automated.
3) Control elements are of well-know make, high performance and reliable technologies.
4) The whole line are controlled by PLC and operated with touch-screen.

5) The allocation of the main frame and auxiliary equipment can be special designed and adjusted according to customers requirement.



S SS SSS SMS SMMS Non Woven Fabric Making Machine For Diaper 1

Description Of Non-woven Machine



B.Parts of spunbonded nonwoven fabric production line:
Recycle extruder---->Main extruder---->Filter---->Metering pump---->
Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
Quenching air chamber---->Stretching device---->Web former---->
Calender---->Winder---->Slitter


C.Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)---->Raw material----> Melting---->
Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
Web forming---->Calendering---->Winding----> Cutting---->Final product


D.Parts of Melt blown nonwoven fabric production line:
Main extruder---->Filter---->Metering pump---->Air heating system---->
Melt blown sprayer(ENKA sprayer)---->Web former---->Winder---->Slitter


E.Melt blown process and technical flow chart:
Raw material----> Melting---->Filtering---->Measuring ---->Air heating---->
Spraying---->Web forming---->Winding----> Cutting---->Final product



S SS SSS SMS SMMS Non Woven Fabric Making Machine For Diaper 2



Main parts of spunbond making machine



S SS SSS SMS SMMS Non Woven Fabric Making Machine For Diaper 3



Spinning Beam

Model:1600/2400/3200mm; Heating System:Oil/Electricity Heating; Distribution Design: big hanger type; Original:CHINA;



S SS SSS SMS SMMS Non Woven Fabric Making Machine For Diaper 4



Extrusion Machine

Aperture:90 300kg/h 1pc;

Heating System: electricity heating; Drive Motor: Siemens; Original:CHINA;



S SS SSS SMS SMMS Non Woven Fabric Making Machine For Diaper 5

Meltblown die head assembly

maximum temperature: 300.;

Max.output:200kg/h;

Heating zone:8tod;

Perforated length:3,350mm;

HPI:40;

1 Sets L/D=10; Number of holes:5.276;

Capillary diameter:0.3mm;

Capillary length:3,600mm;



S SS SSS SMS SMMS Non Woven Fabric Making Machine For Diaper 6



Automatic Winding Machine

Effective width:1600/2400/3200 mm Rolling Speed:200-400M/Minute Rolling Diameter:2000 mm Original: CHINA



S SS SSS SMS SMMS Non Woven Fabric Making Machine For Diaper 7



Production Line Control Cabinet

Voltage: 380 V/3 Phase; Touch Screen:Siemens; PLC: Siemens; Frequency:Siemens; Indicator: RKC,JAPAN; Original:CHINA;



Precisely CNC center hold machining parts beyond customer require.



S SS SSS SMS SMMS Non Woven Fabric Making Machine For Diaper 8



S SS SSS SMS SMMS Non Woven Fabric Making Machine For Diaper 9





Exhibition Show with customer



S SS SSS SMS SMMS Non Woven Fabric Making Machine For Diaper 10



S SS SSS SMS SMMS Non Woven Fabric Making Machine For Diaper 11





Packaging Details


Main machine parts will be packed with wooden cases.Electrical parts will be packed with plastic and then packed into wooden cases.For the steel structure they will be packed in bulk into containers.



S SS SSS SMS SMMS Non Woven Fabric Making Machine For Diaper 12



S SS SSS SMS SMMS Non Woven Fabric Making Machine For Diaper 13



FAQ



1. Q:How long will your engineer reach our factory?

A:Within one week after everything ready (machine arrival your factory, non woven material, power source, air compressor etc.Prepared)

2. Q:Does your engineer understand English?

A:Our engineers understand a little English. All our engineers have more than five years machine installation experience.

3. Q:What should we charge for your engineer?

A:You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 800CNY one day per person.

4. Q:How many days it will take for the intallation?

A: It will take around 45 days, depends on the machine type.

5. Q:How do we solve the machine problem after your engineer leaving?

A:Generally speaking, there will be no problem after finishing installation. In case you have any problem, you can contact our sales at any time. Our engineers will take a solution video according your description.
