2400mm 100gsm PP Melt Blown Filter Machine With CE Certification

Product Details:
Place of Origin: Chuzhou China
Brand Name: Chuzhou HH non-woven
Certification: CE
Model Number: SMS SMMS SSMMS S SS SSS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wood box packaged , machine wrapping with PE film keep cargo safe
Delivery Time: For detailed talk
Payment Terms: L/C, T/T
Supply Ability: For detailed talk

Detail Information

Product: 2.4 Smms Non Woven Fabric Production Line Type: HHM 2.4 Smms
Gsm: 100 G Annual Capacity: 5000 - 15000 Ton
Voltage: 220 / 380 / Customized Power: 1000 Kw -3000 Kw
Size: 55 *23 * 12 M Port: Nanjing / Shanghai
High Light:

100gsm pp melt blown filter machine

,

2400mm pp melt blown filter machine

,

2400mm non woven fabric manufacturing machine

Product Description

2400 ssmms SMMS SMS Non woven fabric production line



Advantages:
Energy saving: 1.
All main motors of the machine adopt variable frequency motor (AC), instead of three-phase asynchronous motor;
Variable frequency motor:
(1) Convenient speed regulation and energy saving.
(2) AC motor has the advantages of simple structure, small volume, small inertia, low cost, convenient maintenance and durability.
(3) It can expand the output and realize high-speed and high-voltage operation.
(4) Soft start and fast braking can be realized.
(5) No spark, explosion-proof, strong environmental adaptability.
Melt blown nonwovens production line technology
Preparation of polymer - melt extrusion - metering pump - thin melt blowing module - solution flow drawing - fiber - cooling auxiliary network - Electrostatic electret - reinforced products
Melt blown cloth is produced by melt blown process. The equipment mainly includes: screw extruder, melt pump, screen changer, melt blowing device, winding device, air system (hot air fan, heater), etc. The function of screw extruder is to melt the profile; The function of melt pump is to accurately measure and control the yield and fineness of fiber, and transport the melt continuously and evenly to the spinneret. The function of the screen changer is to filter out impurities in the melt so as not to block the spinneret hole. The winding device is used to wind the melt blown cloth into a coil. The function of the air system (hot air blower and heater) is to provide the temperature and pressure of hot air for suction of rotating air flow.

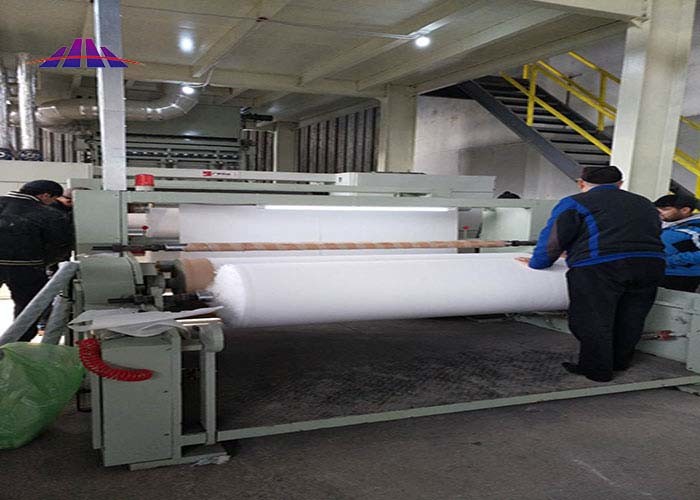

2400mm 100gsm PP Melt Blown Filter Machine With CE Certification 0



2400 SMMS Model



Effective Width 2400mm
Weight Range 9 - 100 g / ㎡
Out put daily 14 -24 ton
Machine speed ≦ 450 m / min
Transformer ≈ 1600 KVA
Power Consumption 1700º - 1900 º / Ton
Machine Size 55 *253* 12 M



HHM SMMS Product application

Material PP chip Weight range 10-150 g/m2
Model

HHM-1.6SMMS/HHM-2.4SMMS

HHM-3.2SMMS/HHM-4.0SMMS/HHM-4.8SMMS

Fabric usage

Medical applicant,shopping bag , packing

Operation suit,face mask, baby diaper.etc



HHM SMMS Non woven fabric making catalog



Effective width(mm) 1600 2400 3200 4000 4800
Output(ton/year) 4000T 6200T 5400T 10500T 12700T
GMS Range(g/㎡) 9-100 9-100 9-100 9-100 9-100
Max.speed(m/min) 450 450 450 450 450



SMS Model

Effective width(mm) 1600 2400 3200 4000 4800
Output(ton/year) 3200T 5100T 7000T 8700T 10500T
GMS Range(g/㎡) 9-100 9-100 9-100 9-100 9-100
Max.speed(m/min) 350 350 350 350 350





Model Effective width Daily capacity Speed Spinning system GSM Range Machine dimension
Length*Width*Height

HH-1600M 1600MM 2000Kg 70M/Min Meltblown 15-300 18*10*10 meter
HH-2400M 2400MM 3000Kg 18*11*10 meter
HH-3200M 3200MM 4500Kg 18*13*10 meter
HH-1600S 1600MM 5000Kg 150M/Min

Spunbond

(S)

9-250 18*8*12 meter
HH-2400S 2400MM 7000Kg 18*10*12 meter
HH-3200S 3200MM 10000Kg 18*15*12 meter
HH-1600SS 1600MM 9000Kg 350M/Min

Spunbond

(SS)

8-150 45*15*12 meter
HH-2400SS 2400MM 13000Kg 45*18*12 meter
HH-3200SS 3200MM 16000Kg 45*20*12 meter
HH-1600SSS 1600MM 12000Kg 550M/Min

Spunbond

(SSS)

9-120 50*15*12 meter
HH-2400SSS 2400MM 16000Kg 50*18*12 meter
HH-3200SSS 3200MM 24000Kg 50*20*12 meter
HH-1600SMS 1600MM 10000Kg 350M/Min

Spunbond/

Meltblown/

Spunbond/

9-100 45*20*12 meter
HH-2400SMS 2400MM 14000Kg 45*23*12 meter
HH-3200SMS 3200MM 18000Kg 45*25*12 meter
HH-1600SMMS 1600MM 12000Kg 450M/Min

Spunbond

Meltblown

Meltblown

Spunbond

9-100 55*20*12 meter
HH-2400SMMS 2400MM 17000Kg 55*23*12 meter
HH-3200SMMS 3200MM 23000Kg 55*25*12 meter



Parts of spunbonded nonwoven fabric production line:



Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter



Spunbonded process and technical flow chart:



Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product



Parts of Melt blown nonwoven fabric production line:



Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter



Melt blown process and technical flow chart:



Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product



working process chart



2400mm 100gsm PP Melt Blown Filter Machine With CE Certification 1



Main parts of SMMS non woven fabric making line



2400mm 100gsm PP Melt Blown Filter Machine With CE Certification 2



Melting Filter Also known as a quantitative pump or proportional pump, it is a reciprocating pump that can adjust the flow rate, and its flow can be adjusted stepless in the range of 0-100%. The characteristic is that the discharge pressure can be kept constant when the flow is adjusted. A device used to measure the amount of PP melts.


 Spinning beam One of the main components of the melt spinning machine is a polymer melt through the filter into the spinning box and spinning through the melt distribution and heat preservation. A rectangular metal box with a box for outsourced insulation. It contains the melt distribution

2400mm 100gsm PP Melt Blown Filter Machine With CE Certification 3



Upper Stretching Device Make the tow tensioned."

Lower Stretching Device Make the tow even more uniform before entering the netting mach

the electric control cabinet to electric power distribution and control equipment power."





2400mm 100gsm PP Melt Blown Filter Machine With CE Certification 4



Vacuum calcinator

The latest chemical fiber component, filter core cleaning equipment. It is suitable for the ordinary spinneret used for polyester, polyamide and polypropylene fiber."





2400mm 100gsm PP Melt Blown Filter Machine With CE Certification 5

Two cooling blower for each other pressure gauges, pressure switches, air channel transfer baffles, air oil and water filter separators, cooling fan control cabinet and so on. Two cooling fans share a control cabinet to automatically control the start and stop of the two typhoon machines. The cooling wind can be taken directly from the air or from the outlet of the fan.

Suction blower is used to pump, exhaust gas, and to compress the gas, and convert the energy input into the kinetic energy and potential energy of the gas in order to increase the unit energy of the gas.





High - precision CNC tools make sure machining part beyond customer request



2400mm 100gsm PP Melt Blown Filter Machine With CE Certification 62400mm 100gsm PP Melt Blown Filter Machine With CE Certification 7



Exihibition Show with customer



2400mm 100gsm PP Melt Blown Filter Machine With CE Certification 82400mm 100gsm PP Melt Blown Filter Machine With CE Certification 9



packing and delivery



Loading Details
Container 4-12 Pcs of 40HQ Container
Port Nanjing or Shanghai Port







Packing Details

The normal package is wooden Cases.



Some of huge equipment will load with wooden case;.



Each container weight 20-25 Tons.





2400mm 100gsm PP Melt Blown Filter Machine With CE Certification 10





2400mm 100gsm PP Melt Blown Filter Machine With CE Certification 11





2400mm 100gsm PP Melt Blown Filter Machine With CE Certification 12





FAQ

1.Q:I already have one factory but there is a little difference in the size,for example the height can't meet 13m,only 12m?

A:Don't be worry. Your machine could be customized.



2.Q:How to make sure your machine's quality?how about the service?

A:Each machine gets ISO9001:2008,CE, SGS. And warranty is one year. you can enjoy the service within production lifetime.



3.Q:How can I get right machine for myself, if I have no ideal about it?

A:Tell me what kind of fabric that you want, how much you want to produce and your factory szie etc. We will design for you.
