China PP Spunbond Nonwoven Production Line manufacturer

high speed SMMS S SS SSS SMS pp meltbond non woven fabric making equipment production line

Product Details:
Place of Origin: Chuzhou
Brand Name: Chuzhou HH non-woven
Certification: CE
Model Number: HHM-1.6 S S
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1000000$/set
Packaging Details: wooden case
Delivery Time: For detailed talk
Payment Terms: L/C, T/T
Supply Ability: For detailed talk

Detail Information

Product Name: Non Woven Fabric Production Line Smms Out Put: 1800 T 2200 T 3300 T 4400 T
Technical: PP Spunbond Raw Material: 100% Polypropylene
GSM: 9 - 250 Gsm Width: 1600 2400 3200 4000 Mm

Product Description



high speed S SS SSS SMS pp meltbond non woven fabric making equipment production line



Product category:

1)SMMS Composite medical Non-Woven Fabric

2)SMS Composite nonwoven fabric

3)SS Spunbonded nonwoven fabric

4)S Spunbonded nonwoven fabric

5) M Melt blown nonwoven fabric

Basic gram weight:SMS:9-100g/㎡ SMS:9-100g/㎡ S:10-150g/㎡



Catalogue Technical Parameters



Model

HHM-1.6

SMMS

HHM-2.4SMMS HHM-3.2SMMS HHM-4.0SMMS HHM-4.8SMMS
Effective width 1.6M 2.4M 3.2M 4.0M 4.8M
Weight range 10-100g/m2 10-100g/m2 10-100g/m2 10-100g/m2 10-100g/m2
Out put per day 7-12Ton 10-18Ton 14-24Ton 17-30Ton 21-36Ton
Machine speed ≦400/min ≦400/min ≦400/min ≦400/min ≦400/min
Transformer capacity ≦1500KVA ≦1600KVA ≦2200KVA ≦25000KVA ≦2630KVA
Power consumption 1400º-2000º/Ton 1400º-2000º/Ton 1400º-2000º/Ton 1400º-2000º/Ton 1400º-2000º/Ton
Machine Size(L*W*H) 45m*18m*12m 45m-22m*12m 45m*25m*12m 45m*28m*12m 45m*31m*12m




Application:


This is filament polypropylene fiber spunbond non-woven equipment. The material is polypropylene (PP), which uses the principle of spinning artificial fibers. During the polymer filamentation process, continuous filaments are extended into a network of fibers, which are finished by mechanical hot pressing. The mechanical assembly we adopt is the advanced single-side whole groove air extraction process, the whole process from feeding to cloth output is automatic control, short production process, high production efficiency. We produce non-woven fabrics with high strength, good softness, non-toxic, antibacterial, corrosion resistance, high tensile strength, high elongation, widely used in clothing, decorative materials, medical and health materials, daily life products and industrial and agricultural fields. In addition, the production line can produce different colors, different grams, different production lines of non-woven fabrics according to user requirements.
Process Flow:
Feeding(suction, dosing, and mixing) → Melt and extruding(with recycling extruder) → Filtering → Metering → Spinning → Quenching → Air drawing → Forming → Calendering → Winding → Slitting → Product.



Technical Data:



Model  HHM-1.6S
Effective Width 1.6M
Weight Range 10-100G/M2
Output per Day 7-12 Tons
Machne Speed  <400m/min
Transformer Capacity ≈1500kva
Power Consumption 1400-2000º/Ton
Machine size (L*W*H) 45**18*12M




key component







high speed SMMS S SS SSS SMS pp meltbond non woven fabric making equipment production line 0



Technical process



Additive (recycling waste )----->Raw material----> Melting and Extruding----->Filtering----> Measuring----> Spinning ----> Cooling-----> Air drawing----->Web forming ----> Calendering---->rolling up----> cutting and packing



high speed SMMS S SS SSS SMS pp meltbond non woven fabric making equipment production line 1

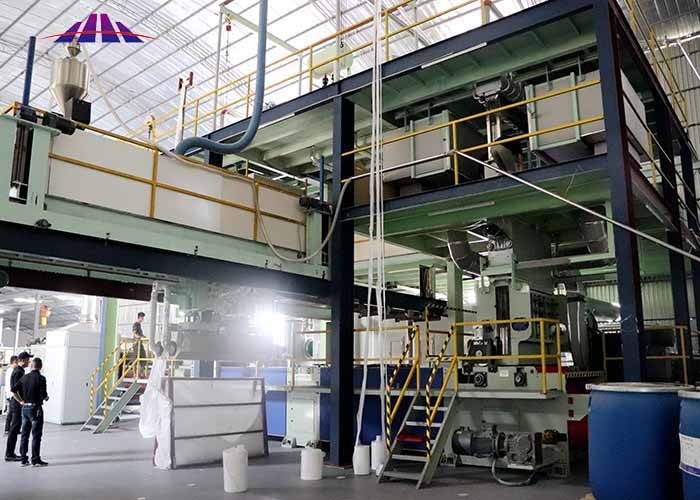

projet in customer side



high speed SMMS S SS SSS SMS pp meltbond non woven fabric making equipment production line 2



Key component



high speed SMMS S SS SSS SMS pp meltbond non woven fabric making equipment production line 3

high speed SMMS S SS SSS SMS pp meltbond non woven fabric making equipment production line 4



high speed SMMS S SS SSS SMS pp meltbond non woven fabric making equipment production line 5



high speed SMMS S SS SSS SMS pp meltbond non woven fabric making equipment production line 6

Our Equipment



high speed SMMS S SS SSS SMS pp meltbond non woven fabric making equipment production line 7



high speed SMMS S SS SSS SMS pp meltbond non woven fabric making equipment production line 8



shipping and delivery





high speed SMMS S SS SSS SMS pp meltbond non woven fabric making equipment production line 9



high speed SMMS S SS SSS SMS pp meltbond non woven fabric making equipment production line 10



Our Process Advantages:

1.We adopt strict Quality Control in whole process from raw materials to fabrication and installation.

2.Providing high cost-effective nonwoven fabric produciton lines, helping customer cost saving.



3.Focuing on non woven equipment research and development for14 years. Installing and running more than 400 production lines all over the world.



4.Import high precision CNC machine from Japan. The key parts machining in house, ensure to provide high quality machine for each customer.



5.Over 20 person-team for machine after sales service.Ensure the customers can get quickly and professional installation and debugged in time.
